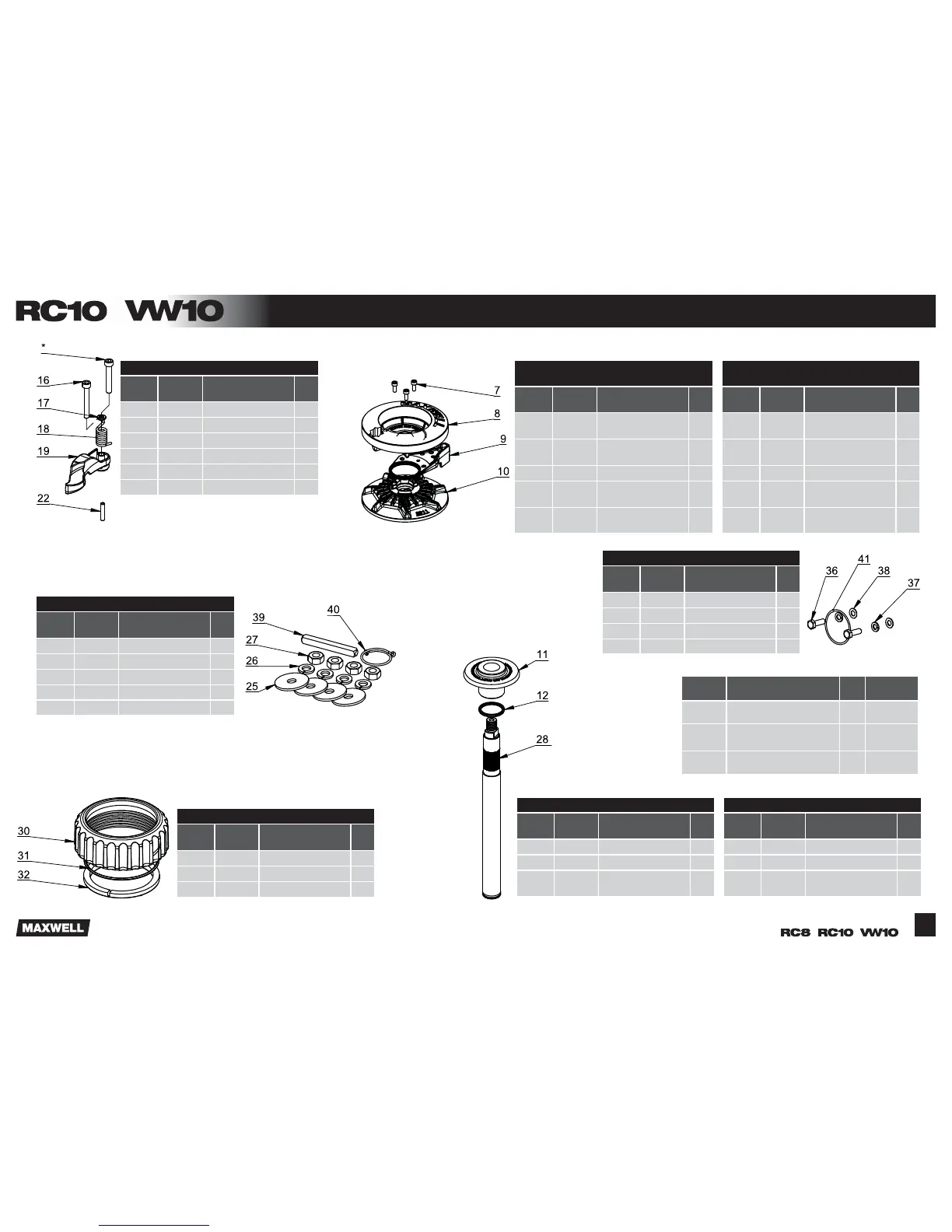

Maxwell RC8 - RC10 W10; 7.7 Kit Assemblies RC10 Model

36
User’s Manual • Benutzerhandbuch • Manuel d’Utilisation du Treuil • Manual del Usuario • Gebruikershandleiding • Manuale Utente
P104711 RC Pressure Arm Kit
Item
no
Part
no
Description Qty
16 SP4501 Cap Screw M6 x 45 1
17 SP0474 Spring Washer 1
18 7037 Spring 1
19 7009 Pressure Arm 1
22 SP0545 Pin 5 x24 1
* Not Required
P103308 RC10-8 8mm Chainwheel
Assembly Kit
Item
no
Part
no
Description Qty
7 SP4503
Cap Screw
M5 x 12
3
8 7263C
Chainwheel Upper
8mm
1
9 6915 Stripper 1
10 7264C
Chainwheel Lower
8mm
1
Not
Shown
SP4121 Magnet 1
P103309 RC10-10 10mm Chainwheel
Assembly Kit
Item
no
Part
no
Description Qty
7 SP4503
Cap Screw
M5 x 12
3
8 7265C
Chainwheel Upper
10mm
1
9 6915 Stripper 1
10 7266C
Chainwheel Lower
10mm
1
Not
Shown
SP4121 Magnet 1
P104700 RC10 Shaft Kit
Item
no
Part
no
Description Qty
11 Clutch Cone 1
12 SP2758 Quad Ring 1
28 7034
Shaft
100TDC
1
P104701 RC10 Capstan Shaft Kit
Item
no
Part
no
Description Qty
11 Clutch Cone 1
12 SP2758 Quad Ring 1
28 7073
Shaft Capstan
100TDC
1
P100088 Locknut Kit
Item
no
Part
no
Description Qty
30 4257 Locknut 1
31 SP2751 O-Ring 66x2 1
32 4258 Collar 1
P101688 Spring, Key, Washer Kit
Item
no
Part
no
Description Qty
25 3597 Flat Washer 4
26 SP0467 Spring Washer 4
27 SP0366 Hex Nut M8 4
39 6340 Key 1
40 4547 Quick Release Clip 1
P12487 Motor Bolt Kit
Item
no
Part
no
Description Qty
36 SP0288 Hex Bolt M8 x25 2
37 SP0467 Spring Washer 2
38 SP0413 Flat Washer 2
41 SP2787 O-Ring 50 x 2 1
Item
no
Component Description Qty
Part
no
Not
Shown
RC10 Insulating Gasket 1 7321
Not
Shown
Replacement Brush Kit for
Motor 12V
1 P100807
Not
Shown
Replacement Brush Kit for
Motor 24V
1 P100808
7.7 Kit Assemblies RC10 Model • Bausätze Modell RC10 • Trousse d’Assemblage du Modèle RC10
Juego de Ensambles, Modelo RC10 • Onderdelensets Model RC10 • Kit di Montaggio Modello RC10
