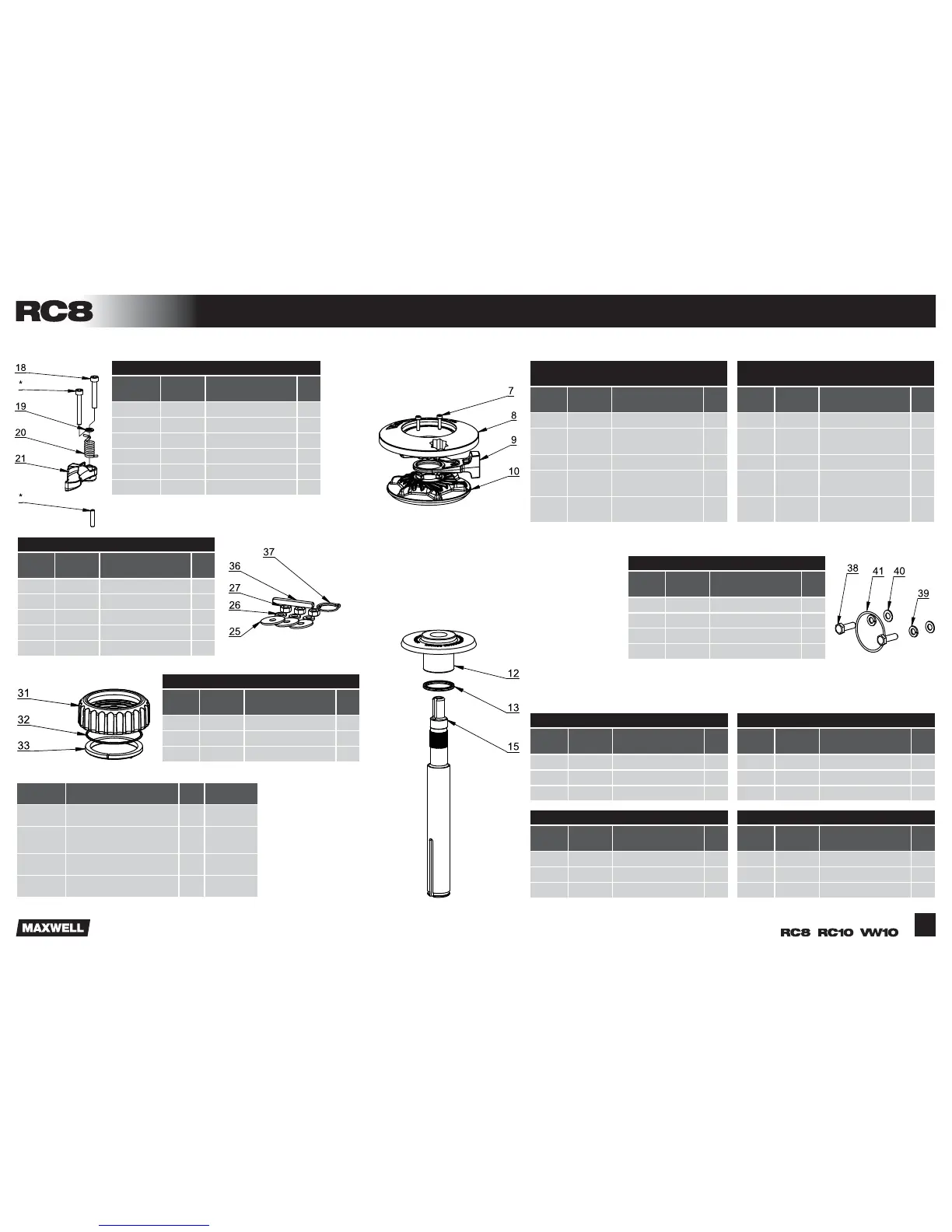

Maxwell RC8 - RC8; 7.5 Kit Assemblies RC8 Model

33
User’s Manual • Benutzerhandbuch • Manuel d’Utilisation du Treuil • Manual del Usuario • Gebruikershandleiding • Manuale Utente
P104711 RC Pressure Arm Kit
Item
no
Part
no
Description Qty
18 SP4501 Cap Screw M6 x 45 1
19 SP0474 Spring Washer 1
20 7037 Spring 1
21 7009 Pressure Arm 1
* Not Required 1
* Not Required 1
P101660 Spring, Key, Washer Kit
Item
no
Part
no
Description Qty
25 3597 Flat Washer 3
26 SP0467 Spring Washer 3
27 SP0366 Hex Nut M8 3
36 6340 Key 1
37 4547 Quick Release Clip 1
P100088 Locknut Kit
Item
no
Part
no
Description Qty
31 4257 Locknut 1
32 SP2751 O-Ring 66x2 1
33 4258 Collar 1
P103310 RC8-6 6mm Chainwheel
Assembly Kit
Item
no
Part
no
Description Qty
7 SP0178 Cap Screw M5x 16 2
8 6974C
Chainwheel Upper
6mm
1
9 7010 Stripper 1
10 76975C
Chainwheel Lower
6mm
1
Not
Shown
SP4121 Magnet 1
P103311 RC8-8 8mm Chainwheel
Assembly Kit
Item
no
Part
no
Description Qty
7 SP0178 Cap Screw M5 x16 2
8 7004C
Chainwheel Upper
8mm
1
9 7010 Stripper 1
10 7005C
Chainwheel Lower
8mm
1
Not
Shown
SP4121 Magnet 1
P12487 Motor Bolt Kit
Item
no
Part
no
Description Qty
38 SP0288 Hex Bolt M8 x25 2
39 SP0467 Spring Washer 2
40 SP0413 Flat Washer 2
41 SP2787 O-Ring 50 x 2 1
P100016 RC8 Shaft Kit 65TDC
Item
no
Part
no
Description Qty
12 Clutch Cone 1
13 SP2758 Quad Ring 1
15 4379 Shaft 65TDC 1
P100047 RC8 Shaft Kit 165TDC
Item
no
Part
no
Description Qty
12 Clutch Cone 1
13 SP2758 Quad Ring 1
15 4422 Shaft 165TDC 1
P100017 RC8 Capstan Shaft Kit 65TDC
Item
no
Part
no
Description Qty
12 Clutch Cone 1
13 SP2758 Quad Ring 1
15 4380 Shaft 65TDC 1
P100048 RC8 Capstan Shaft Kit 165TDC
Item
no
Part
no
Description Qty
12 Clutch Cone 1
13 SP2758 Quad Ring 1
15 4381 Shaft 165TDC 1
7.5 Kit Assemblies RC8 Model • Bausätze Modell RC8 • Trousse d’Assemblage du Modèle RC8
Juego de Ensambles, Modelo RC8 • Onderdelensets Model RC8 • Kit Assemblati Modello RC8
Item
no
Component Description Qty
Part
no
Not
Shown
Gasket Plastic 1 7320
Not
Shown
Replacement Brush Kit for
600W 12/24V
1 SP2932
Not
Shown
Replacement Brush Kit for
1000W 12V
1 P100807
Not
Shown
Replacement Brush Kit for
1000W 24V
1 P100808
