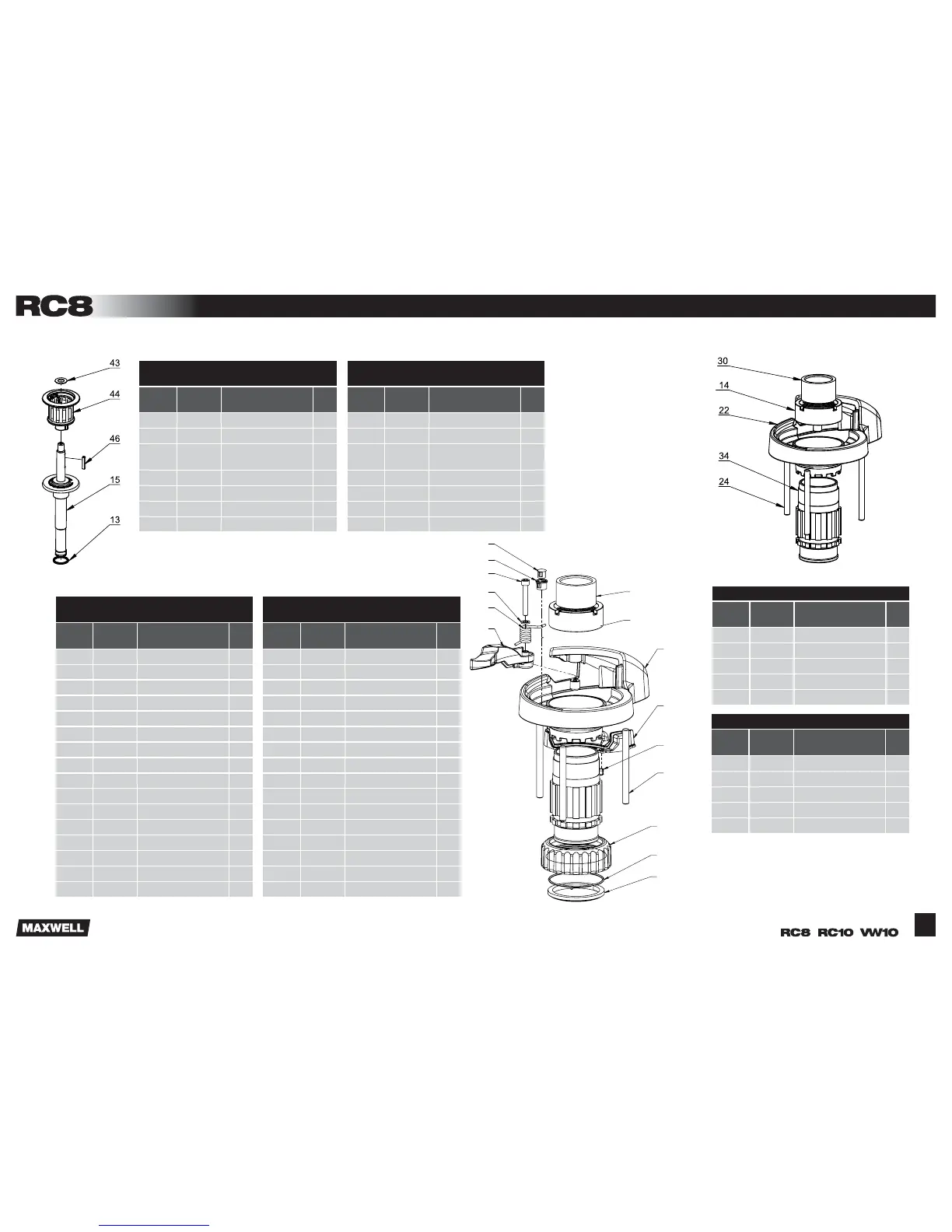

P100018 RC8 65TDC Capstan
Conversion Kit
Item
no
Part
no
Description Qty
12 Clutch Cone 1
13 SP2758 Quad Ring 1
15
Shaft Capstan
65TDC
1
40 4547 Quick Release Clip 1
43 SP0421 Flat Washer 1
44 4170 Capstan 1
46 3462 Key 1
P100035 RC8 165TDC Capstan
Conversion Kit
Item
no
Part
no
Description Qty
12 Clutch Cone 1
13 SP2758 Quad Ring 1
15
Shaft Capstan
165TDC
1
40 4547 Quick Release Clip 1
43 SP0421 Flat Washer 1
44 4170 Capstan 1
46 3462 Key 1
P104731 RC8 Full Deckplate
Assembly 65TDC
Item
no
Part
no
Description Qty
14 Retaining Collar 1
16 SP3519 Plug 1
17 SP3518 Bush 1
18 SP0159 Cap Screw M6x40 1
19 SP0474 Spring Washer 1
20 7037 Spring 1
21 7009 Pressure Arm 1
22 Spacer Tube 1
24 4281 Stud M8 3
28 7008 Deckplate Insert 1
29 SP0536 Nylon Rivet 1
30 4218 Bearing 1
31 4257 Locknut 1
32 SP2751 O-Ring 66x2 1
33 4258 Collar 1
34 Deckplate 1
P104732 RC8 Full Deckplate
Assembly 165TDC
Item
no
Part
no
Description Qty
14 Retaining Collar 1
16 SP3519 Plug 1
17 SP3518 Bush 1
18 SP0159 Cap Screw M6x40 1
19 SP0474 Spring Washer 1
20 7037 Spring 1
21 7009 Pressure Arm 1
22 Spacer Tube 1
24 4359 Stud M8 3
28 7008 Deckplate Insert 1
29 SP0536 Nylon Rivet 1
30 4218 Bearing 1
31 4257 Locknut 1
32 SP2751 O-Ring 66x2 1
33 4258 Collar 1
34 Deckplate 1
18
19
20
21
17
16
30
14
22
28
29
24
31
32
33
P104714 65TDC RC8 Deckplate Kit
Item
no
Part
no
Description Qty
14 Retaining Collar 1
22 Spacer Tube 1
24 4281 Stud M8 65TDC 3
30 4218 Deck Bearing 1
34 Deckplate 1
P104715 165TDC RC8 Deckplate Kit
Item
no
Part
no
Description Qty
14 Retaining Collar 1
22 Spacer Tube 1
24 4359 Stud M8 165TDC 3
30 4218 Deck Bearing 1
34 Deckplate 1
