34
9. Direct Connect Conveyors:
Direct connect conveyors are designed easily to
attach together to form a conveyor of any length.
Align for straightness and height. Install and move
the pin over-center
Slide the channel into the bracket and secure with
the over-center pin and chain.
10. Unloading Conveyor:
A Stinger(s) can be mounted to a conveyor for
unloading trucks. Potatoes are unloaded into the
Stinger and the Stinger conveys them into the
conveyor.

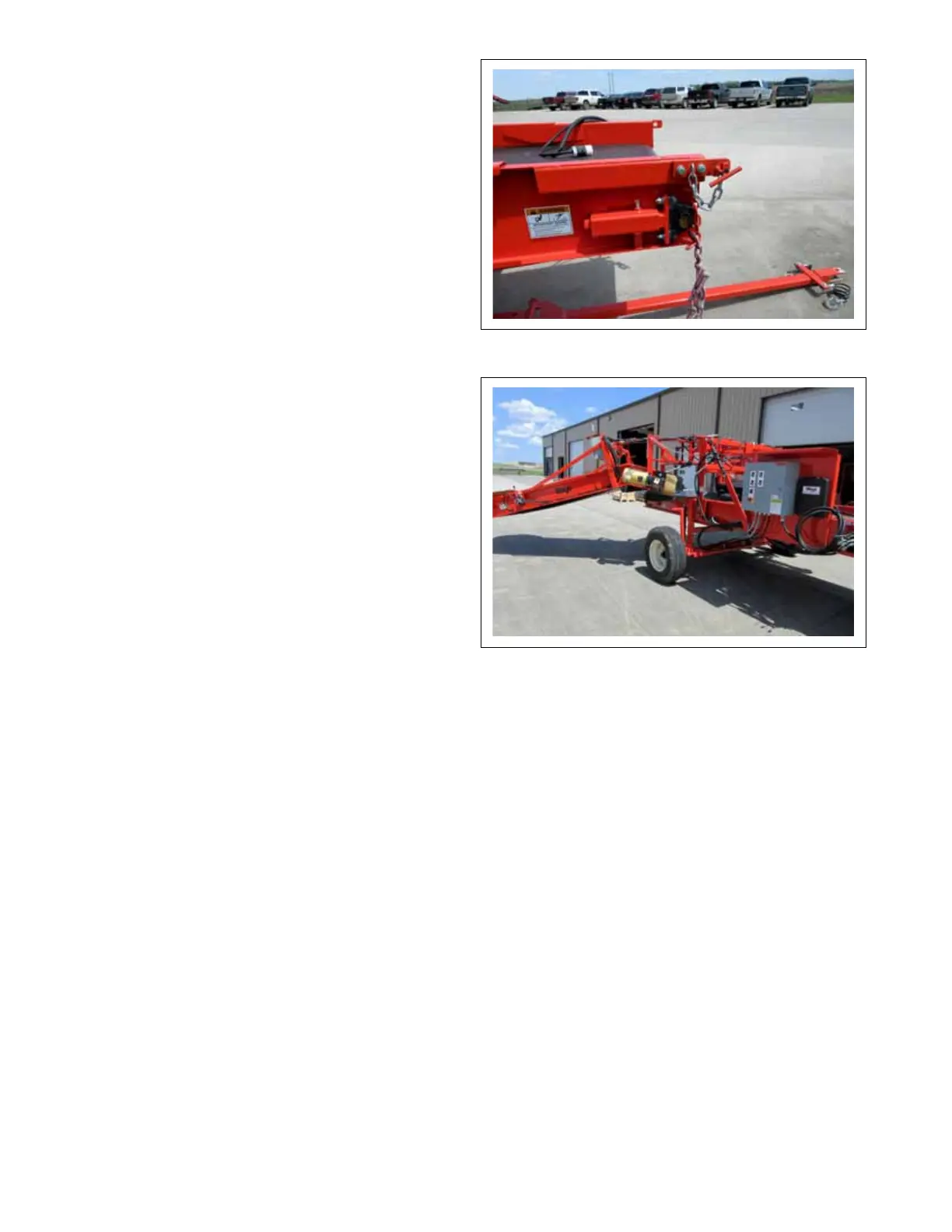

FIG. 17 CONNECTING CONVEYOR
FIG. 18 UNLOADING CONVEYOR
