44
Weekly or 50 Hours
1. Grease Conveyor shaft bearings with 1 shot of
grease.
IMPORTANT
Only sealed bearings are used on the
conveyor bearings. Sealed bearings
should never be greased more often
than weekly or every 50 hours. Do not
over-grease. Do not give bearing more
than 1 shot of grease each time it is
greased. Once the bearing seal is bro-
ken, the bearing must be greased each
day or the bearing will fail.
a. Telescoping model, drive and driven shafts (2
locations each shaft).
b. Direct Connect Conveyor drive and driven
shafts (2 locations each shaft).

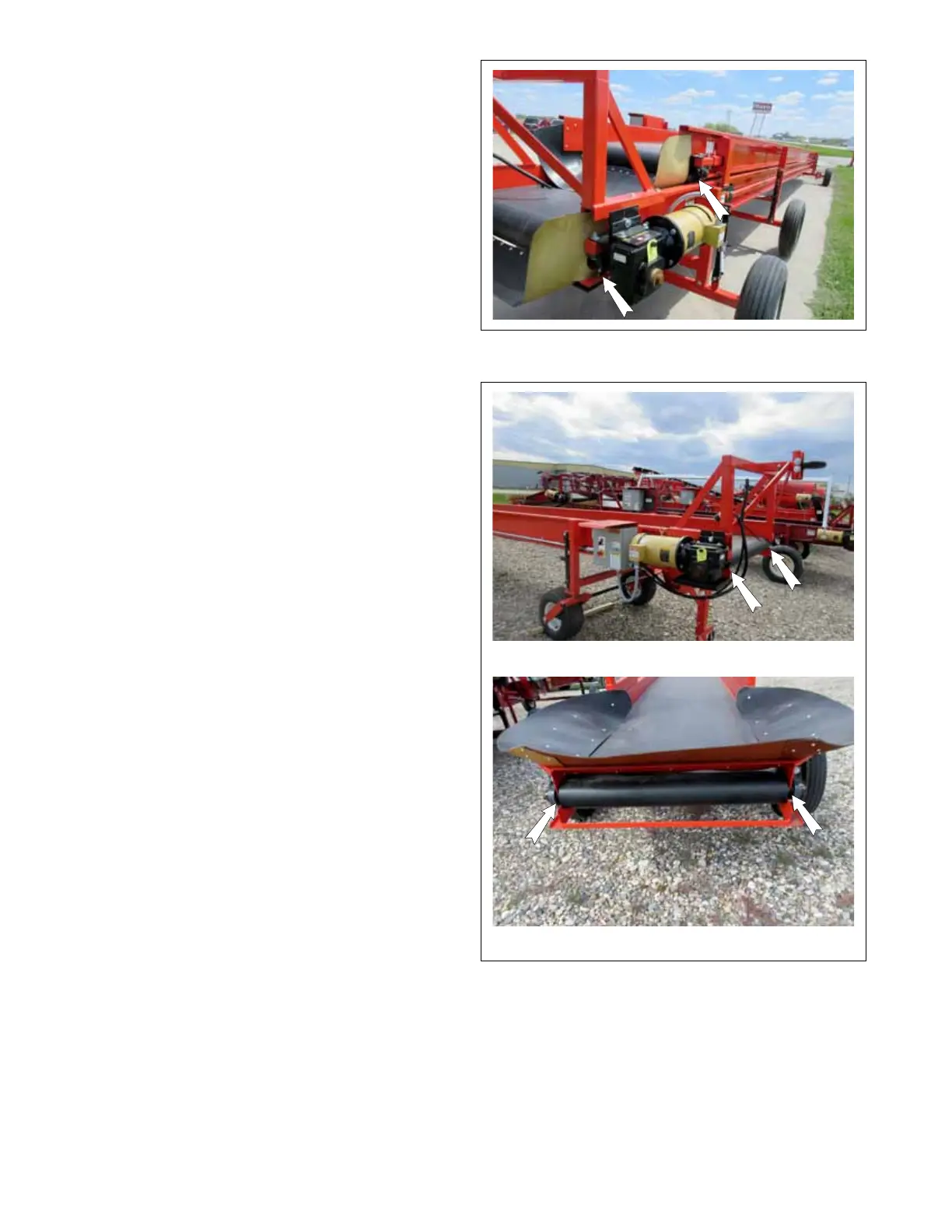

FIG. 27 CONVEYOR SHAFTS (TYPICAL)
Drive
Driven
FIG. 28 DIRECT CONNECT CONVEYOR SHAFTS
