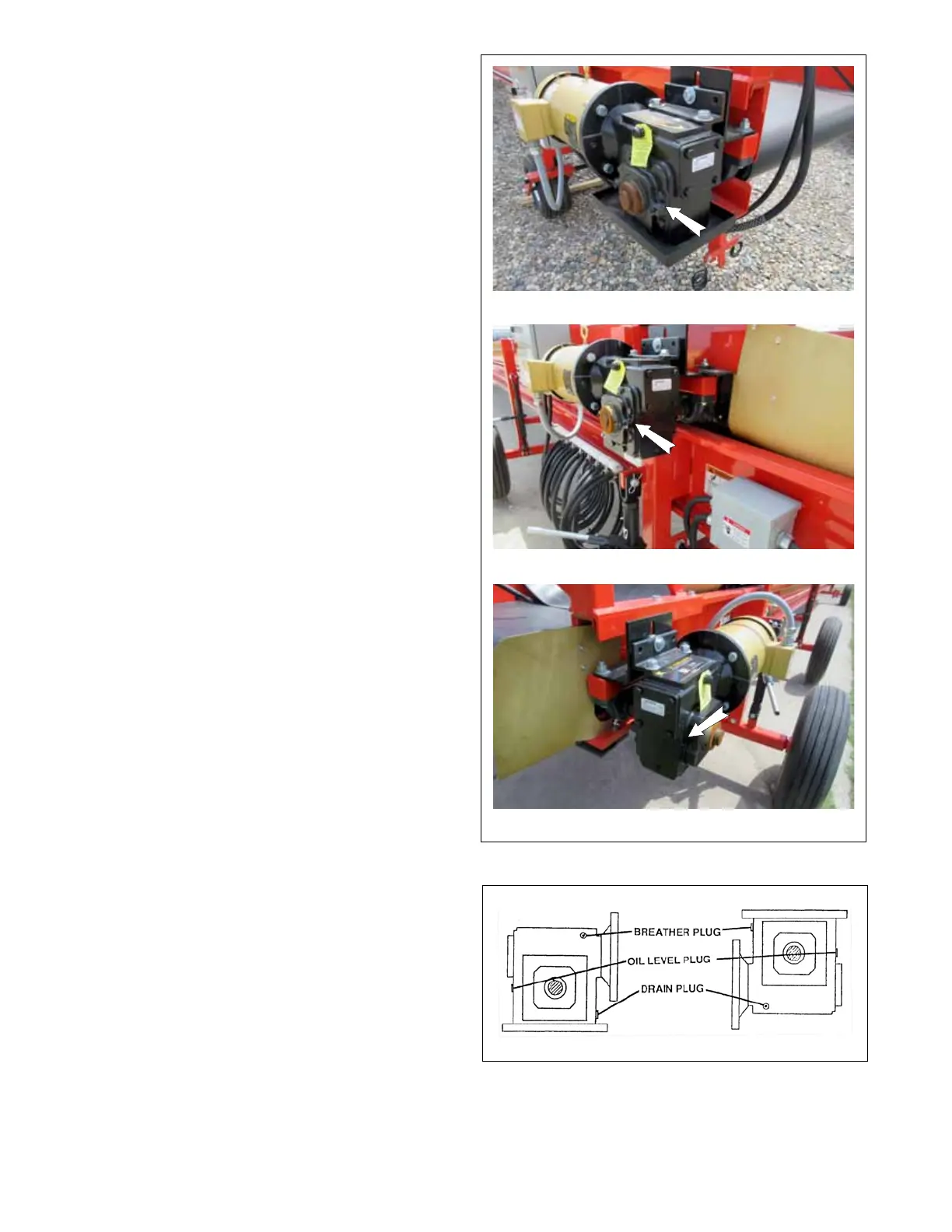

4. Check the oil level in each speed reducing gear
box in the drive systems (1 location each gear
box).
FIG. 32 LEVEL PLUG (TYPICAL)
Straight
Telescoping - Top
FIG. 33 GEARBOX SCHEMATIC (TYPICAL)
Telescoping - Bottom
