To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.

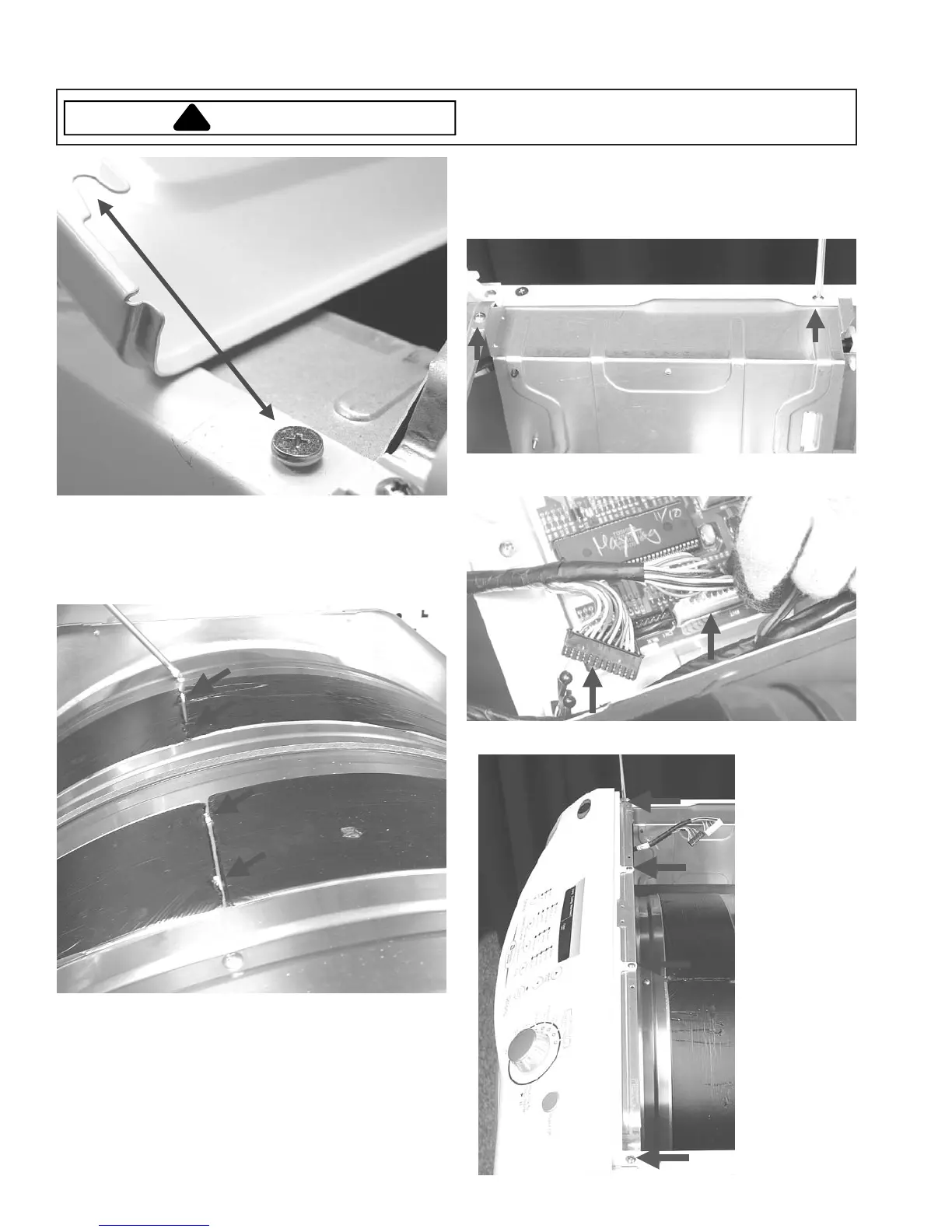

Disassembly Procedures
WARNING
Drum Baffle Removal
1. Disconnect power supply to unit.
2. Remove Top Cover.
3. Remove four screws located at the sound dampening
seem.
Console Removal
1. Disconnect power supply to unit.
2. Remove Top Cover.
3. Remove two screws mounting the Heater PCB Board.
4. Disconnect the black and white connectors.
5. Remove four screws attaching Console to washer.
To Next Page
