Maytag MDE9700A - Disassembly Procedures; Front Panel Removal Steps; Heater Assembly Removal Guide

©2005 Maytag Services 16025911 Rev. 0 19
To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.
Disassembly Procedures
WARNING
!

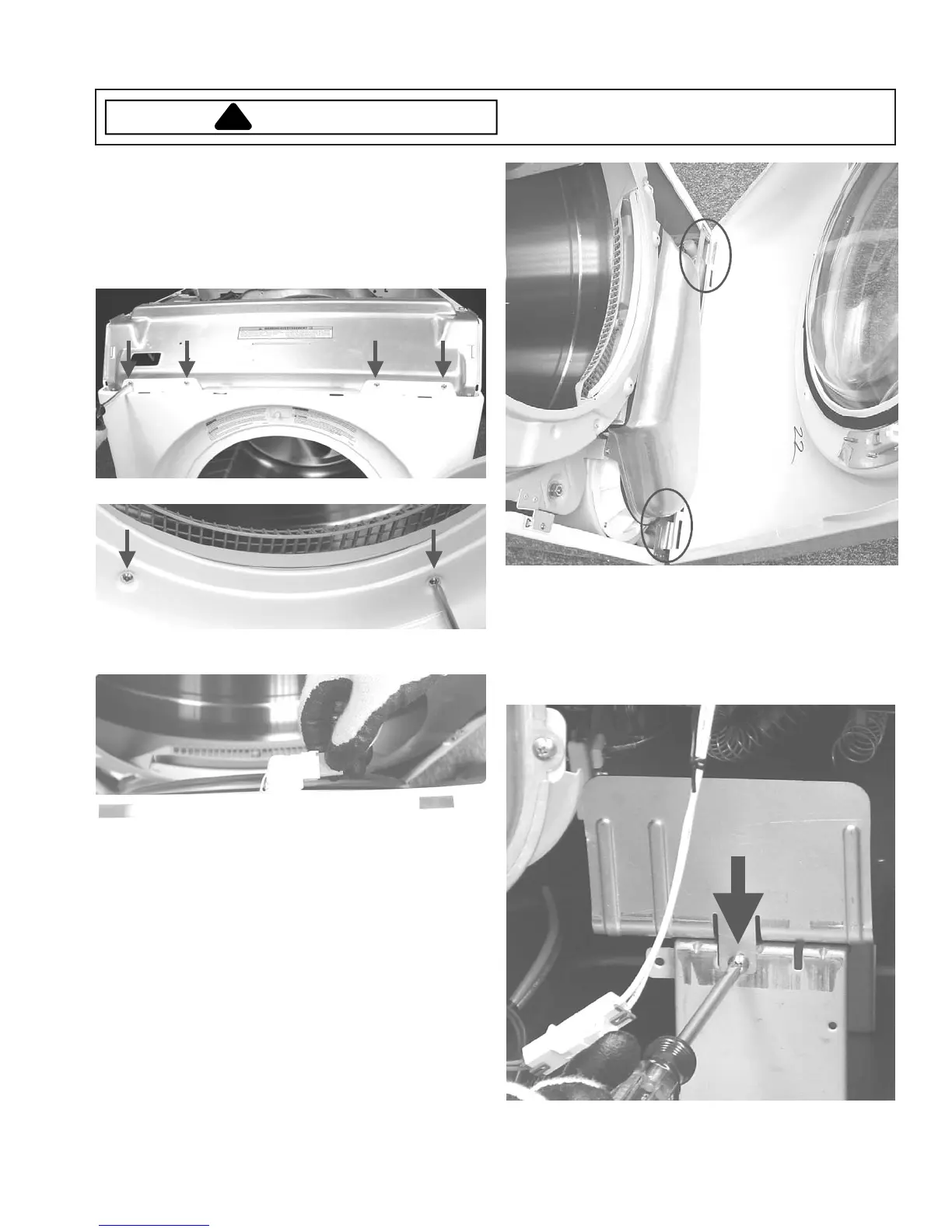

Front Panel Removal
1. Disconnect power supply to unit.
2. Remove Top Cover.
3. Remove Console.
4. Remove four screws attaching Front Panel to dryer.
5. Remove two screws in the door area.
6. Pull Front Panel forward and disconnect the Interior
Light harness.
7. Lift the Front Panel off the three tabs across the
bottom and remove.
6. Rotate Console down and remove from dryer.
Heater Assembly Removal
1. Disconnect power supply to unit.
2. Remove Top Cover.
3. Remove Console.
4. Remove Front Cover.
5. Remove Heater Assembly retaining screw.
