Maytag MDE9700A - Disassembly Procedures; Rear Drum Roller Removal; Gas Dryer Igniter Removal

©2005 Maytag Services 16025911 Rev. 0 27
To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.
Disassembly Procedures
WARNING
!
Gas Model Disassembly
Igniter Removal
1. Disconnect power supply to unit.
2. Remove Top Cover.
3. Remove Console.
4. Remove Front Panel.
5. Loosen the single screw attaching the igniter to the
Burner Assembly. Slide the Igniter back and remove.

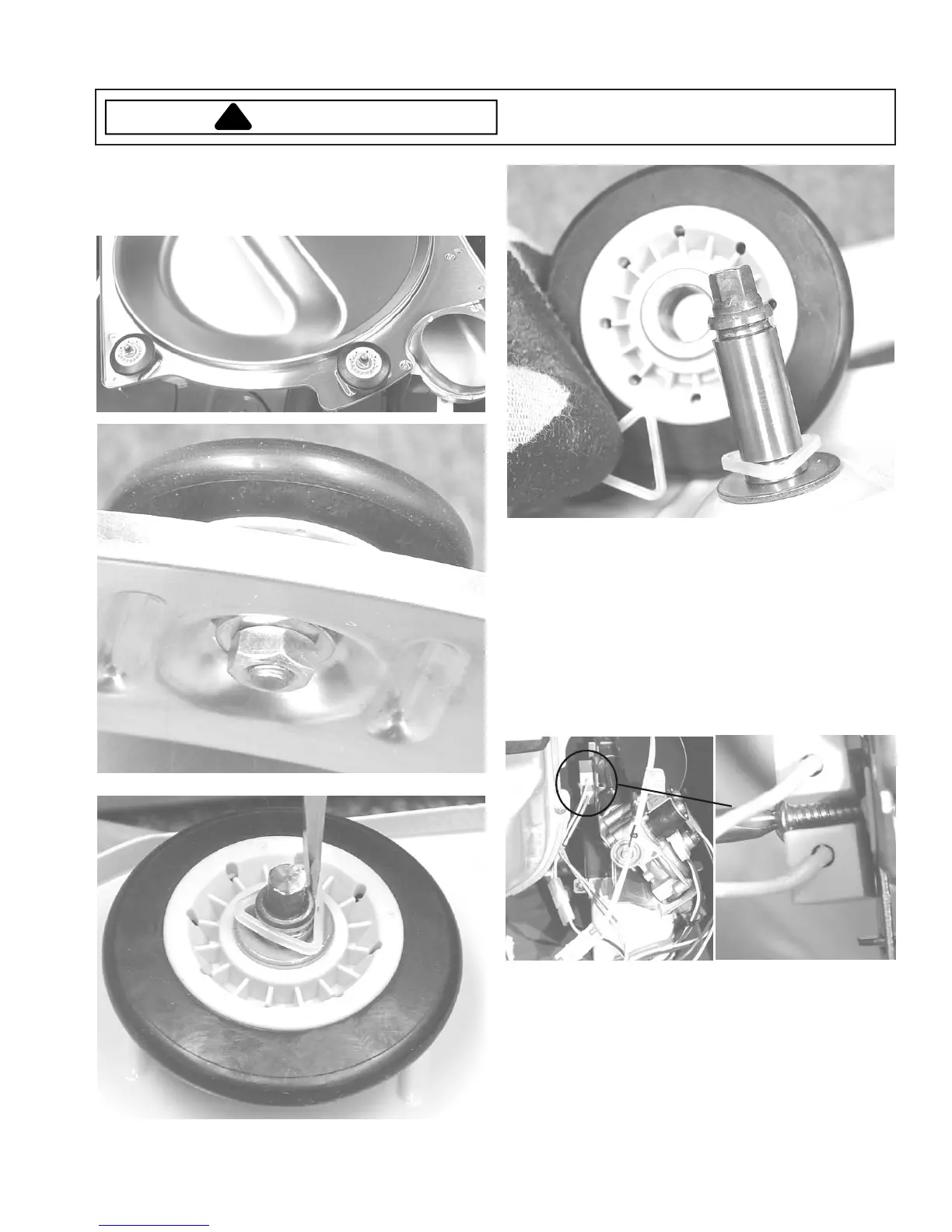

Rear Roller Removal
1. Disconnect power supply to unit.
2. Remove Rear Bulkhead.
3. Remove Roller Keeper and nut.
