24 16025911 Rev. 0 ©2005 Maytag Services
To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.
Disassembly Procedures
WARNING

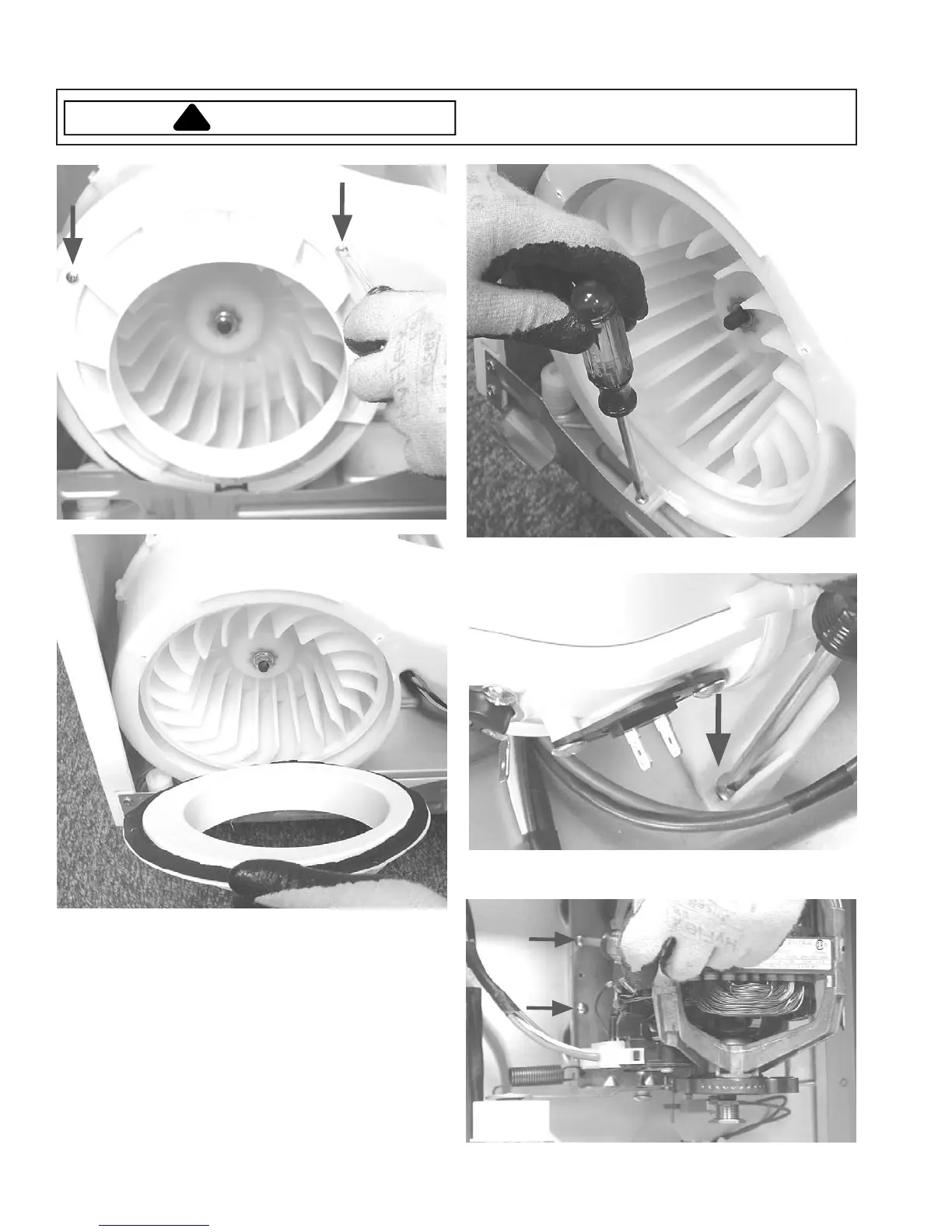

9. Removed the screw at the bottom of the blower
housing.
10.Remove the blower attachment screw under the
Thermistor.
11. Remove two screws attaching the motor bracket to
the base.
