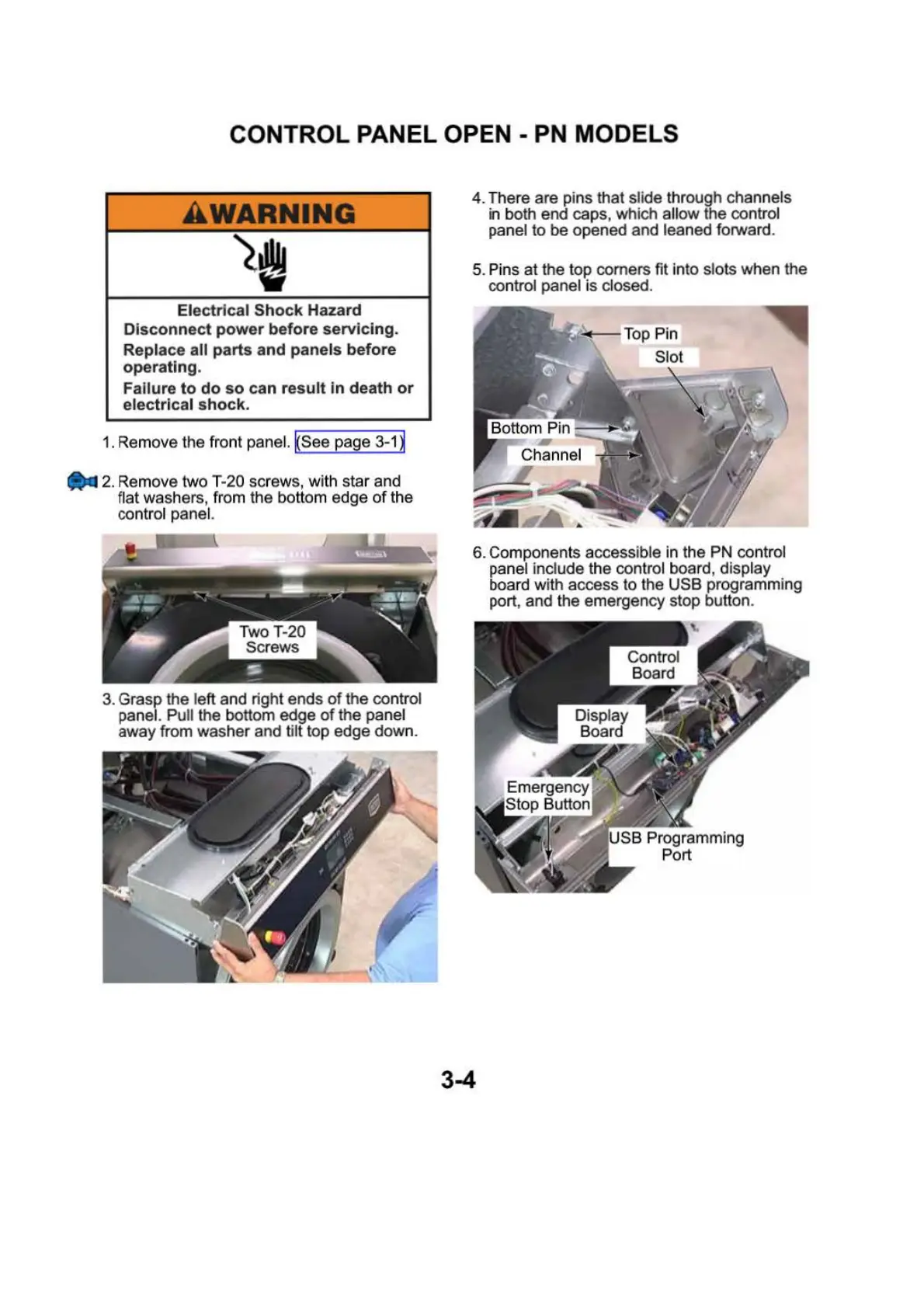

CONTROL PANEL OPEN -
PN
MODELS
AWARNING
~.
Electrical
Shock
Hazard
Di
sconnect
power
before
servicing.
Replace all
parts
a
nd
panels
before
operating
.
Failure
to
do
so
can
result
in
death
or
electrical
shock.
1.
Remove the front panel. KSee page
3-1
j
..
2.
Remove two T-20
sc
rew
s,
with star and
flat washers, from the bottom edge
of
the
control panel.
3. Grasp the left
and
right ends
of
the
co
ntr
ol
panel. Pull the bottom edge
of
the
panel
away from washer and tilt top edge down.
4. There are pins that slide through channels
in
both end caps,
wh
ich allow the control
panel to
be
opened and leaned forward.
5. Pins
at
the top comers fit into slots when
the
control panel is closed.
6. Components accessible in the PN control
panel include the control board, display
board with access to the USB programming
port,
and
the emergency stop button.
3-4
To Next Page
