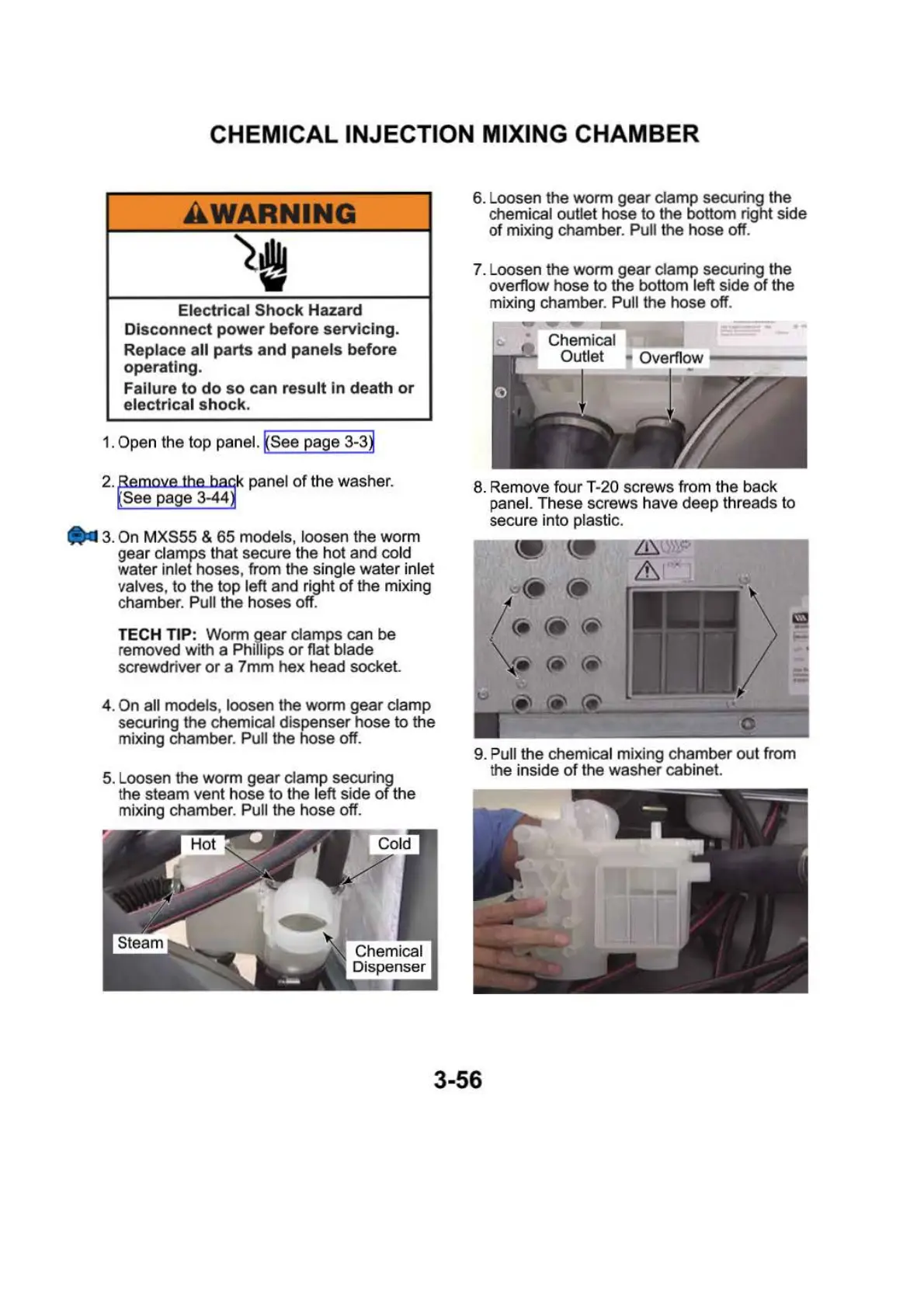

CHEMICAL
INJECTION MIXING
CHAMBER
A WARNING
~,
Electrical
Shock
Hazard
D
isconnect
powe
r before
servicing.
Replace a
ll
parts
and
pan
els
befo
re
operating
.
F
ailure
to
do
so
can
res
ul
t in
deat
h or
el
ectrica
l shock.
1. Open the top pane
l.
kSee page
3-3
~
2.
~
e
ro
o
y
e
the h
at
pa
nel
of
the washer.
_,?
ee page 3-
44
_
...
3.
On
MXS55 & 65 models, loosen the worm
gear clamps that secure the hot and
co
ld
water
in
l
et
hoses, from the s
in
gle water
in
let
valves, to the top left and right
of
the mixing
chamber. Pull the hoses off.
TE
CH TIP: Worm
gear
clamps can be
removed with a Phillips
or
flat blade
screwdriver
or
a 7mm hex head socket.
4.
On
all models, loosen the worm
gear
clamp
securing the chemical dispenser hose to
the
mixing chamber. Pull the hose
off
.
5. Loosen the worm
gear
clamp securing
the steam vent hose to the left side
of
the
mixing chamber. Pull the hose off.
6.
Loosen the worm
gear
clamp securing the
chemical outlet hose to the bottom right side
of mixing chamber. Pull the hose off.
7. Loosen
the
worm
gear
clamp securing the
overflow hose to the bottom left side
of
the
mixing chamber. Pull the hose off.
8. Remove four T-20
sc
rews from the back
panel. These screws have deep t
hr
eads to
secure into plastic .
9. Pull the chemical mixing chamber out from
the inside
of
the washer cabinet.
3-56
