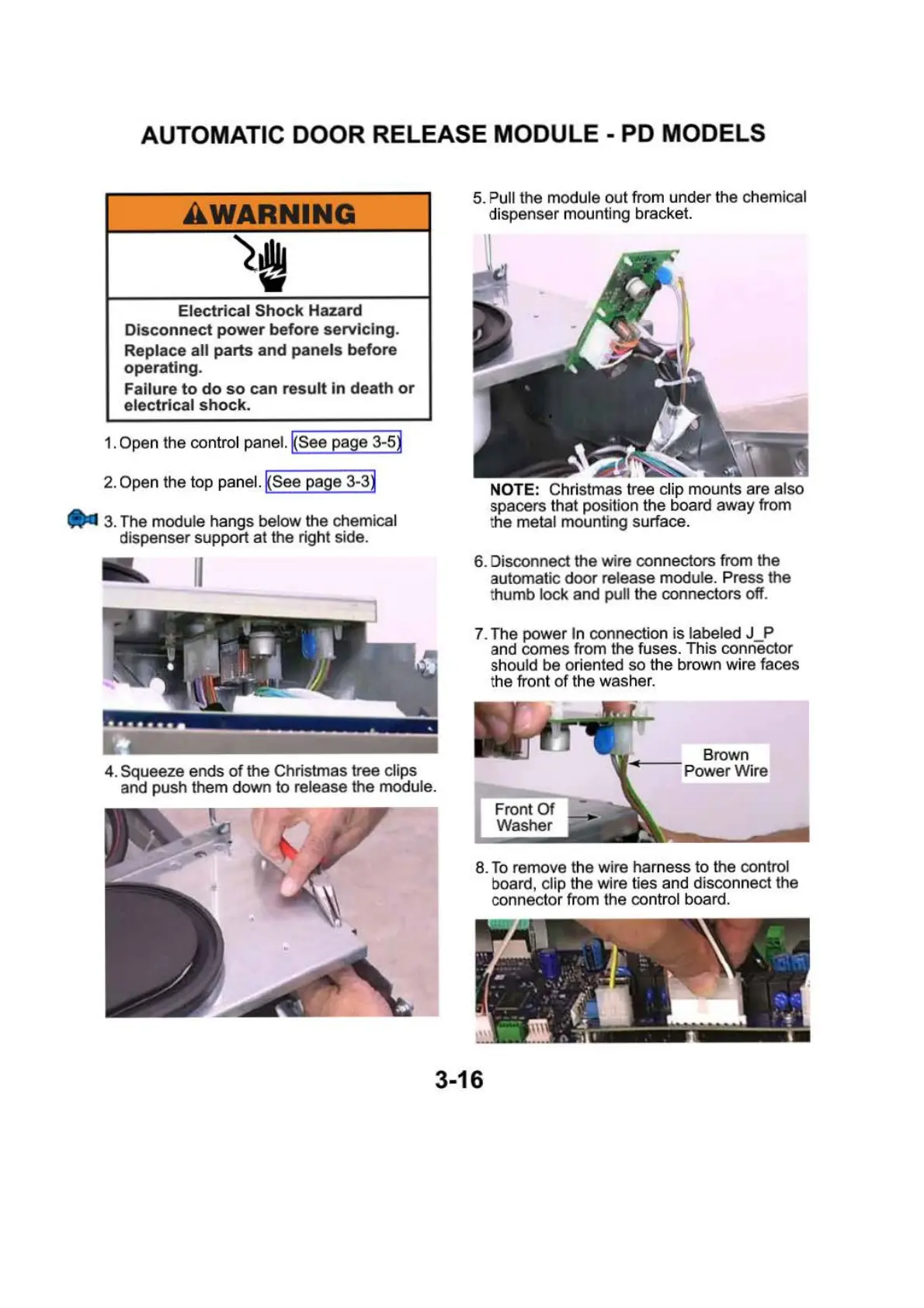

AUTOMATIC
DOOR
RELEASE MODULE - PD MODELS
A WARNING
~
Electrical
Shock
Hazard
Disconnect
power
before
servicing.
Replace all
parts
and panels
before
operating
.
Failure
to
do
so
can
result
in
death
or
electrical
shock.
1. Open the control pane
l.
!(See page 3-5j
2.
Open the top panel. k
see
page 3-3j
~
3.
The module hangs below the chemical
dispenser support
at
the right side.
4. Squeeze ends
of
the Christmas tree clips
and push them down to release the module.
5. Pull the module
out
from under the chemical
dispenser mounting bracket.
NOTE: Christmas tree clip mounts are also
spacers that position the board away from
t
he
metal mounting surface.
6. Disconnect the w
ir
e connectors from the
automatic
door
release module. Press
the
thumb lock and pull the connectors off.
7. The power In connection
is
labeled J P
and comes from the fuses. This connector
should be oriented so the brown wire faces
t
he
front
of
the washer.
Brown
Power Wire
8.
To
remove
the
wire harness to the control
board, clip
the
wire ties and disconnect the
connector from the control board.
3-16
