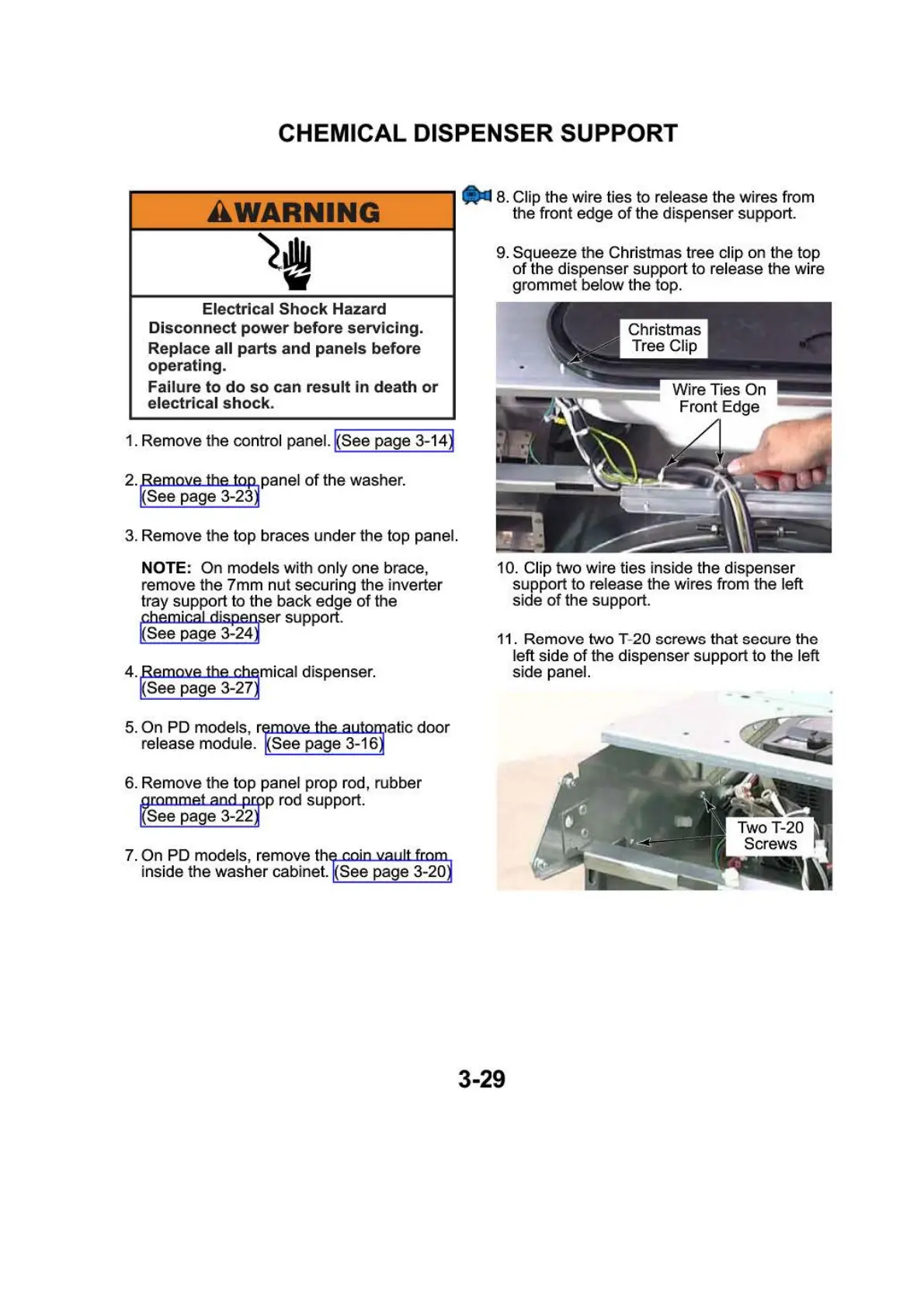

CHEMICAL
DISPENSER
SUPPORT
£WARNING
~.
Electrical
Shock
Hazard
Disconnect
power
before
servicing.
Replace all
parts
and
panels
before
operating.
Failure
to
do
so
can
result
in death
or
electrical
shock
.
1. Remove the control panel. !(See page 3-14j
2. Remove the top panel
of
the washer.
!(See page 3-23j
3. Remove the top braces under the top panel.
NOTE: On models with only one brace,
remove the 7mm nut securing the inverter
tray support to the back edge
of
the
r.h
emical d
ispe;r
er support.
f See page
3-2
~
4. Remove the ch) mical dispenser.
!(See page 3-27
5. On
PD
models, rK
mo
ve the
a
uto
~
atic
door
release module. See page 3-16
6. Remove the top panel prop rod, rubber
grommet and prop rod support.
f See page 3-22j
7. On
PD
models, remove
th
~
coin vau
lt
from
inside the washer cabinet.{ See page 3-2-0j
..
8. Clip the w
ir
e ties to release the w
ir
es
from
the front edge
of
the dispenser support.
9. Squeeze the Christmas tree clip on the
top
of the dispenser support to release the wire
grommet bel
ow
the top.
10
. Clip two wire ties inside the dispenser
support to release the wires from the left
side
of
the support.
11
. Remove two T-20 screws that secure the
left si
de
of
the dispenser support to the left
side panel.
--
3-29
