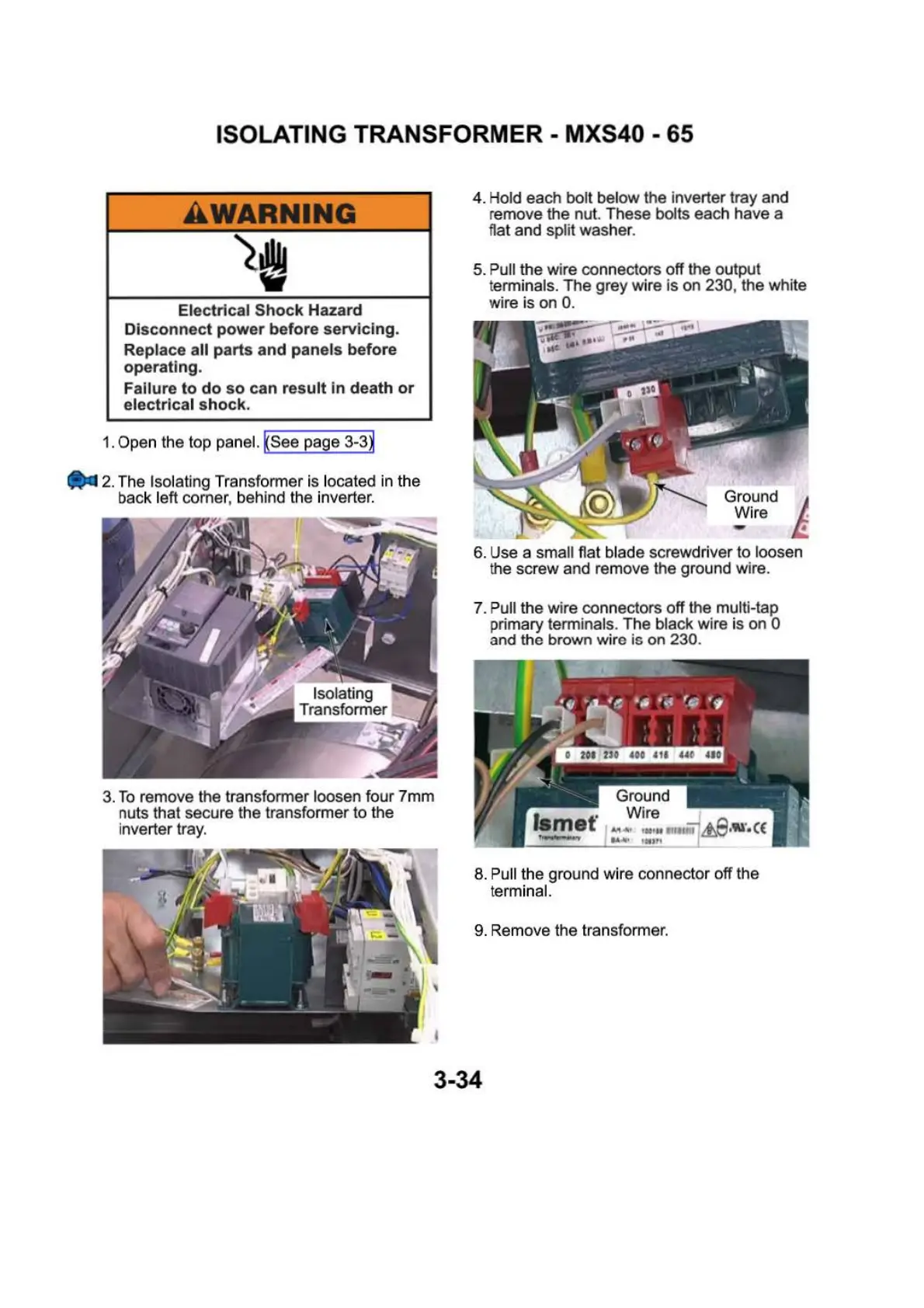

ISOLATING TRANSFORMER - MXS40 - 65
A WARNING
~,
Electrical Shock Hazard
Disconnect power before servicing .
Replace all
parts and panels before
operating.
Failure
to do so can result in death or
electrical shock.
1. Open the top panel. kSee page 3-3 ~
.. 2. The Isolating Transformer is located in the
back left corner, behind the inverter.
3. To remove the transformer loosen four ?mm
nuts that secure the transformer to the
inverter tray.
4. Hold
each bolt below the inverter tray and
r
emove the nut. These bolts each have a
flat
and split washer.
5. Pull the wire connectors off the output
terminals. The grey wire is on 230 , the white
wire is on 0.
~ ~~~~ ~ G~i~~d J
- Ii.
6. Use a small flat blade screwdriver to loosen
the
screw and remove the ground wire.
7. Pull
the w ire connectors off the multi-tap
primary terminals.
The black wire is on 0
and
the brown wire is on 230.
,_ , Wire ~
.. met
1
........
.. ,,,,.w .::i. e.~ · .c(
·~ IA-If; , .. ,, _,
8. Pull the ground wire connector off the
terminal.
9. Remove
the transformer.
3-34
