II. Testing the Dolphin
Step 2. Analyze cable

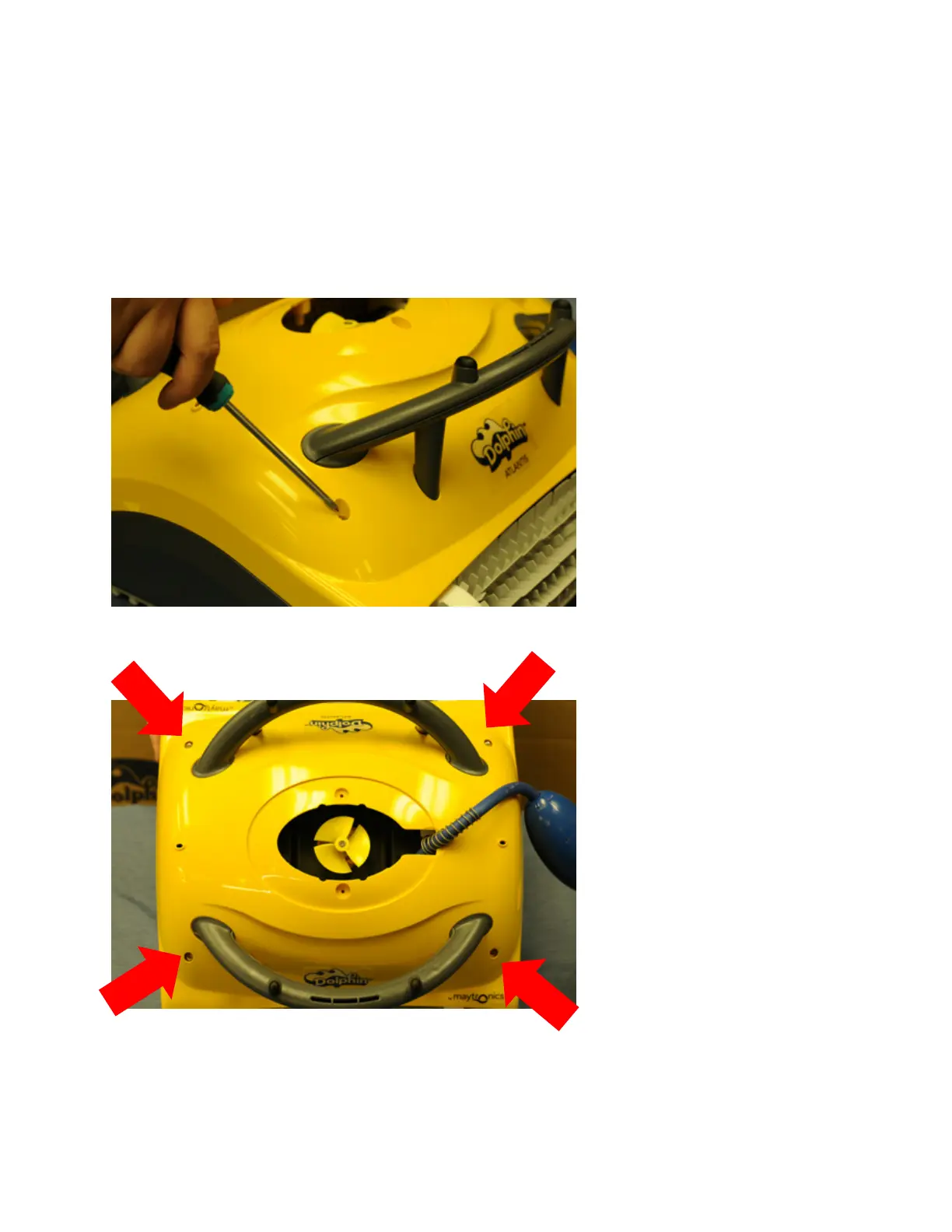

Remove the 4 screws
(2 per side) that hold
the robot cover to the
chassis
Location of screws.
2 per side.
Once 4 screws are
removed, lift off robot
cover.
6
