GLASS/WINDOWS/MIRRORS
09-12–3
Mazda MX-5

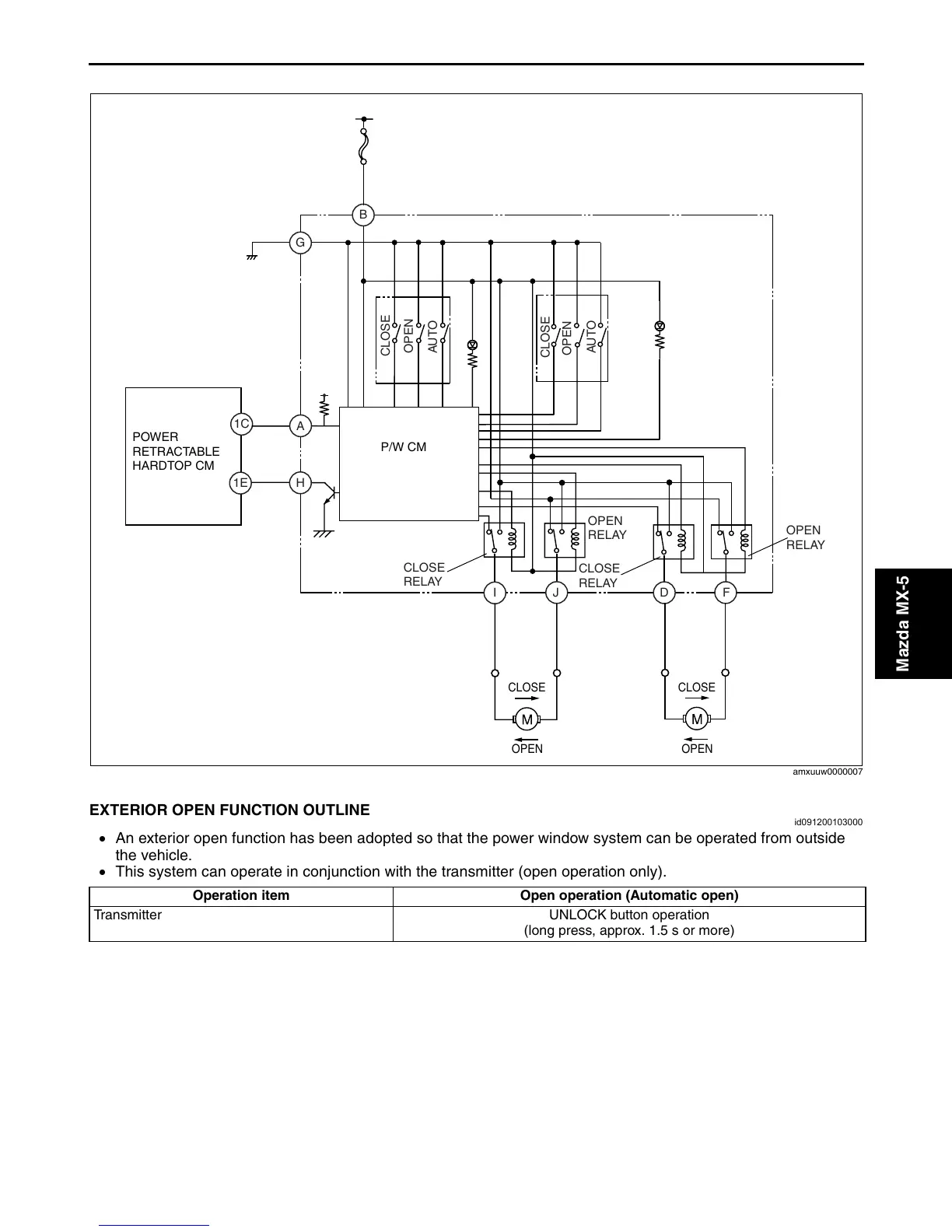

Without exterior open function
End Of Sie
EXTERIOR OPEN FUNCTION OUTLINE
id091200103000
• An exterior open function has been adopted so that the power window system can be operated from outside
the vehicle.
• This system can operate in conjunction with the transmitter (open operation only).
End Of Sie
B
D
J
A
G
F
I
H
1C
1E
CLOSE
OPEN
AUTO
CLOSE
OPEN
AUTO
CLOSE
RELAY
OPEN
RELAY
CLOSE
RELAY
OPEN
RELAY
CLOSE
OPEN
IG1
CLOSE
OPEN
POWER
RETRACTABLE
HARDTOP CM
P/W CM
amxuuw0000007
Operation item Open operation (Automatic open)
Transmitter UNLOCK button operation
(long press, approx. 1.5 s or more)
