QUARTER PANEL Cont’d
SHEET METAL
WAGON Cont’d
Panel, Wheelhouse¶
6 Inner R B223-70-150L
L B223-71-150K
Outer-Serviced w/Inner Panel Assy
¶Included w/Inner Panel Assy
7
Reinforcement, Panel R B216-70-491D
L B216-71-491E
8
Housing, Lamp R B216-70-452C
L B216-71-452D
9
Plate, Joint Upper R B216-70-451
L B216-71-451
10
Plate, Joint Lower R B216-70-470A
L B216-71-470B
INTERIOR TRIM
WAGON
1 Panel, Rear Pillar Trim
Gray R B227-68-27XB-06
L B227-68-29XB-06
Beige R B227-68-27XB-92
L B227-68-29XB-92
2
Panel, Wheelhouse Trim¶ R BR34-68-760-65
L BJ01-68-771B-65
3
Panel Assy, Side Trim¶ R B216-68-860A-48
L B216-68-870A-48
4
Lid, Rear¶ (a) R B216-68-862-48
L B217-68-872-48
(a) Included w/Side Trim Panel Assy
Cover, Luggage Compt¶ B225-68-930-48
¶Blue listed, Order by Application
43 Beige; 48 Blue; 65 Off-Black
Speaker, Radio R/L 0000-81-5616-01
EXTERIOR TRIM
Moulding, Belt
Hatchback
Black R B116-50-661
L B116-50-671
Bright R B113-50-661
L B113-50-671
Sedan
Black R B097-50-660
L B097-50-670
Bright R B093-50-660
L B093-50-670
Wagon
Black R B227-50-760
L B227-50-770
Bright R B223-50-760A
L B223-50-770A
Decal
"DOHC 16-V Turbo" R/L B333-51-771
Grille, Extractor
Sedan
Black R B141-51-910C
L B141-51-930C
Bright R B130-51-910C
L B130-51-930C
Wagon
Black R B227-51-910A
L B227-51-930B
Bright R B223-51-910B
L B223-51-930B
Chamber, Extractor
Hatchback R B092-51-920A
L B092-51-940A
Sedan R B130-51-920
L B130-51-940
Wagon R B216-51-920
L B216-51-940
Moulding, Side
Adhesive
Hatchback
Bright
45mm R B113-50-683
L B113-50-693
85mm R BF82-50-683
L BF82-50-693
Argent
45mm R B114-50-683
L B114-50-693
85mm R B119-50-683
L B119-50-693
Guard, Stone
Hatchback R 8AB2-50-481
L 8AB2-50-491
Sedan, Wagon R 8AB1-50-481
L 8AB1-50-491
Tape, Stripe-See Stripe Tape Section

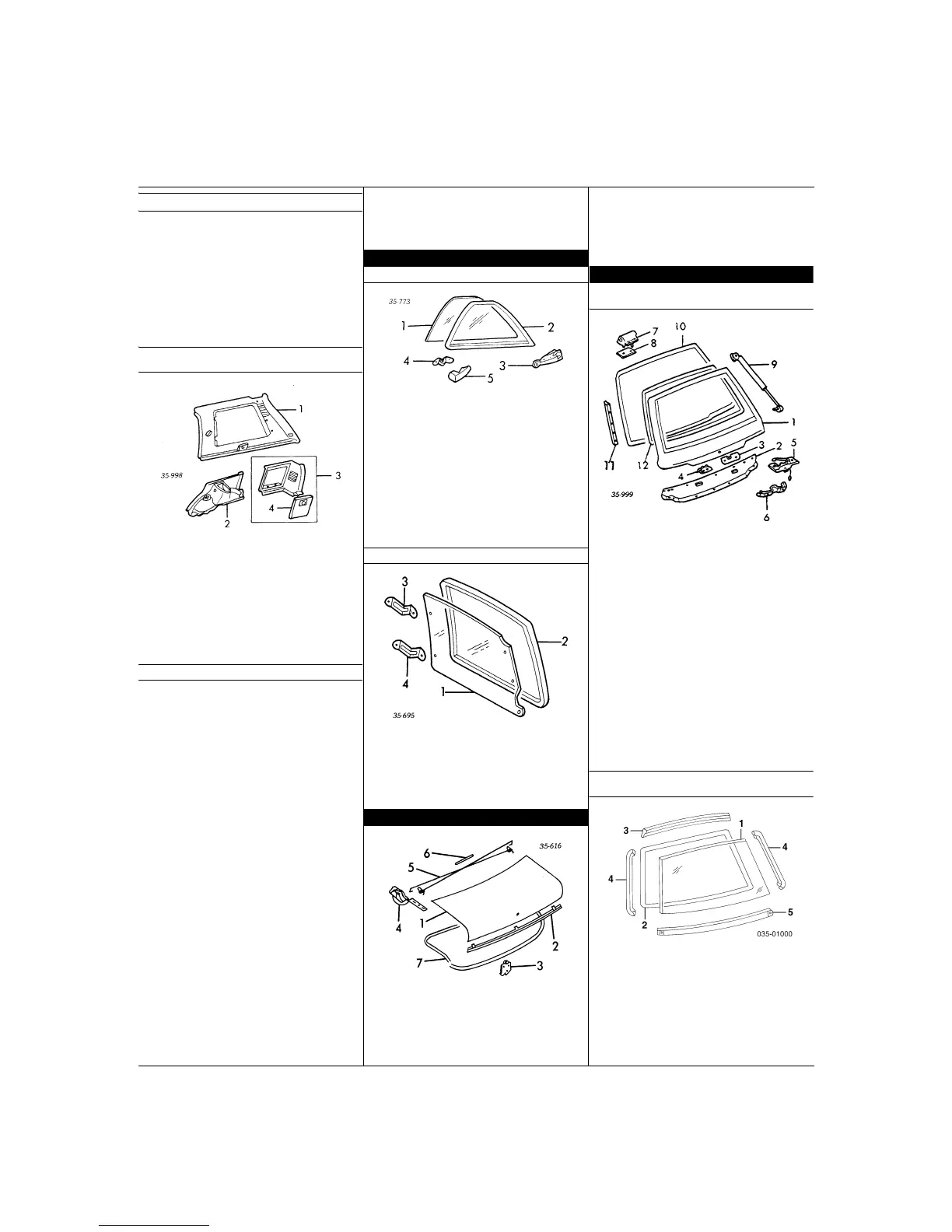

QUARTER GLASS
HATCHBACK
1 Glass, Quarter
Mazda (Tint)
w/o Ceramic R B112-72-511
L B112-73-511
w/Ceramic R B115-72-511
L B115-73-511
2
Weatherstrip, Glass R B111-72-761A
L B111-73-761A
3
Latch R B111-72-310A
L B111-73-310A
4
Hinge
Upper R B111-72-211
L B111-72-211
Lower R/L B111-72-212
5
Cover, Hinge (2/Side)
Off Black R/L B111-72-215A-65
Moulding, Front R/L B130-51-913
Moulding, Rear
Black R/L B141-51-914
Bright R/L B130-51-914A
WAGON
1 Glass, Quarter
Mazda (Tint)
w/o Ceramic R B216-62-951
L B216-63-951
w/Ceramic R B224-62-951
L B224-63-951
2
Weatherstrip R B216-62-952C
L B216-63-952C
3
Brkt, Glass Upper R/L B216-62-961
4
Brkt, Glass Lower R/L B216-62-962
LUGGAGE LID
1 Lid, Luggage BF89-52-610A
2
Moulding
Chrome 8AB3-50-941A
Black 8AB4-50-941A
Nameplate
Adhesive
"Mazda" BF67-51-780A
"323" BF67-51-720A
3
Latch B130-56-820C
4
Hinge R B130-52-710
L B130-52-720
5
Spring, Balance R B130-52-791B
L B130-52-792B
6
Protector, Balance Spring B130-56-805A
Opener Assy BF91-56-850C
Cable, Opener¶ B131-56-870D
¶Included w/Opener Assy
7
Weatherstrip B130-56-891C
LIFTGATE
SHEET METAL/EXTERIOR TRIM
HATCHBACK
1 Panel, Gate
w/o Wiper BF67-62-020E
w/Wiper BF69-62-020E
Nameplate
Adhesive
"Mazda" BF67-51-780A
"323" BF67-51-720A
2
Panel, Inside Trim
Beige B100-68-891B-43
Blue B100-68-891B-48
Off Black B100-68-891B-65
3
Protector, Liftgate BF67-62-890A
4
Cover, Cargo Lamp
Beige B100-68-892-43
Blue B100-68-892-48
Off Black B100-68-892-65
5
Latch
w/o Cargo Lamp B092-62-310A
w/Cargo Lamp BF67-62-310C
Cylinder & Key B092-76-260B
6
Striker B092-62-361B
7
Hinge R/L B092-62-210B
8
Gasket, Hinge R/L B001-62-212
9
Stay, Prop R 8AB1-62-620
L 8AB1-63-620
Opener Assy
w/o Turbo BF68-56-850C
w/Turbo BK14-56-850A
10
Weatherstrip, Gate B092-62-761B
11
Retainer, Weatherstrip R/L BG62-62-870A
12
Welt, Seaming B100-68-915A-00
GLASS & PARTS
HATCHBACK
1 Glass, Rear Gate
Mazda (Tint) B093-63-930
2
Weatherstrip, Glass GT8T-50-894
3
Moulding, Reveal Upper
Black 8AB2-50-960
Bright 8AB1-50-960
4
Moulding, Reveal Side
Black R 8AB2-50-930
L 8AB2-50-940
Bright R 8AB1-50-930
L 8AB1-50-940
5
Moulding, Reveal Lower
Bright 8AB1-50-950
Black 8AB2-50-950
