Mazda 323 - Interior Trim; Rear Door; Sheet Metal

MAZDA 323 1988-89
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
37
madpl1_g01_
Page 37—April 22, 2004—13:29:00—Version Manufacturer
L B113-50-692A
85mm Width R BF82-50-682
L BF82-50-692
Argent
45mm Width R B114-50-682A
L B114-50-692A
85mm Width R B119-50-682A
L B119-50-692A
Sedan, Wagon
Bright
45mm Width R B093-50-682A
L B093-50-692A
85mm Width R B100-50-682A
L B100-50-692A
Argent
45mm Width R B094-50-682A
L B094-50-692A
85mm Width R B101-50-682A
L B101-50-692A
Tape, Stripe-See Stripe Tape Section
Mirror, Rear View
Manual R 8BB1-69-110
L BN08-69-170
Power¶ R BN09-69-110-DS
L BN09-69-170-DS
¶Majolica Blue listed, Order by Application
DS Majolica Blue; H1 Sparkling Black
Metallic; J1 Connecticut Blue Metallic;
NQ Sensational Red; RH Sunrise Red;
WY Noble White; 1C Sand Gray Metallic;
2H Claret Metallic; 3G Silver Metallic;
4A Vogue Silver Metallic; 5G Prestige
Silver Metallic

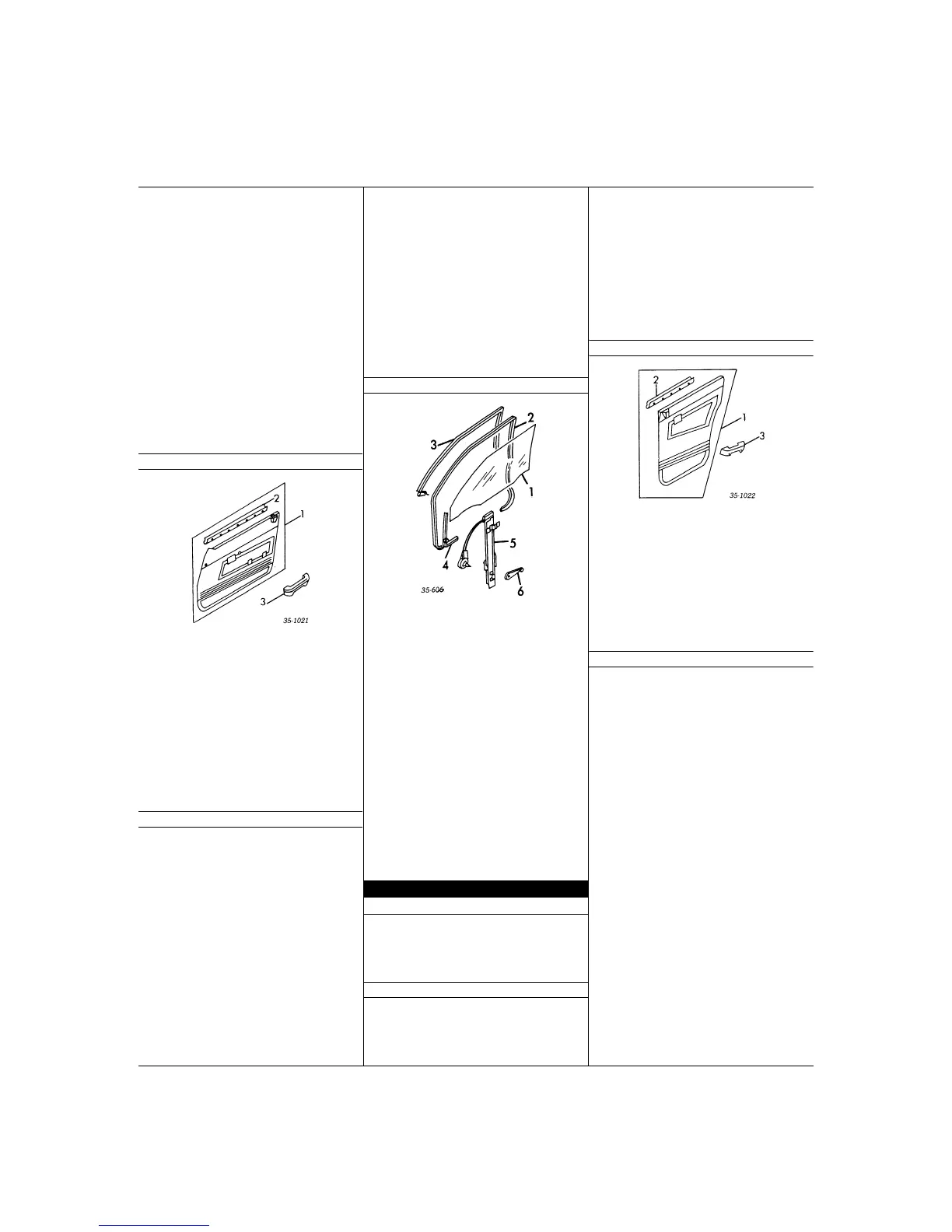

INTERIOR TRIM
1 Panel Assy, Trim¶
Base Model R BF67-68-420-48
L BF67-68-450-48
DX Model R BF67-68-420-48
L BF77-68-450-48
GT Model R B304-68-420-48
L B303-68-450A-48
LX Model
w/Pwr Windows R BM90-68-420A-48
L BM90-68-450A-48
w/o Pwr Windows R BM89-68-420A-48
L BM89-68-450A-48
2
Weatherstrip, Inner¶ (a) R B092-58-820
L B092-59-820
(a) Included w/Trim Panel Assy
3
Armrest¶ R/L B100-69-37X-48
Pocket, Door Trim¶ (a) R BF71-68-42X-48
L BF71-68-45X-48
¶Blue listed, Order by Application
(a) Included w/Trim Panel Assy
43 Beige; 48 Blue; 65 Off-Black
HARDWARE
Latch
Hatchback
w/Man Locks R B111-58-310B
L B111-59-310B
w/Pwr Locks R BF71-58-310C
L BF71-59-310B
Sedan, Wagon
w/Man Locks R B092-58-310B
L B092-59-310B
w/Pwr Locks R BF67-58-310C
L BF67-59-310B
Striker R/L B092-58-361A
Cylinder w/Key R B037-76-210A
L BJ14-76-220A
Handle, Outside
Black R B092-58-410
L B092-59-410
Bright R B093-58-410
L B093-59-410
Handle, Inside
Painted
Beige R/L B001-58-330A-43
Blue R/L B001-58-330A-48
Off Black R/L B001-58-330A-65
Bright
Beige R/L B093-58-330-43
Blue R/L B093-58-330-48
Off Black R/L B093-58-330-65
Hinge, Upper R B092-58-210A
L B092-59-210A
Hinge, Lower R B092-58-240
L B092-59-240
Check, Door R/L B092-58-270B
Weatherstrip, Door
Hatchback R B111-58-760D
L B111-59-760D
Sedan, Wagon R B092-58-760E
L B092-59-760E
Welt, Door Opening
Hatchback
Beige R B120-68-911A-43
L B120-68-921-43
Blue R B120-68-911A-48
L B120-68-921-48
Off Black R B120-68-911A-02
L B120-68-921-65
Sedan, Wagon
Beige R B100-68-911A-43
L B100-68-921-43
Blue R B100-68-911A-48
L B100-68-921-48
Off Black R B100-68-911A-65
L B100-68-921A-65
GLASS & PARTS
1 Glass, Front Door
Mazda (Tint)
Hatchback R B112-58-511
L B112-59-511
Sedan, Wagon R B093-58-511
L B093-59-511
2
Welt, Door Opening-See Hardware Section
3 Run, Glass
Hatchback R B111-58-605C
L B111-59-605C
Sedan, Wagon R B092-58-605C
L B092-59-605C
4
Guide, Glass R B092-58-603C
L B092-59-603C
5
Regulator
Hatchback
Manual R B111-58-560C
L B111-59-560C
Power R B112-58-560C
L B112-59-560C
Sedan, Wagon
Manual R B092-58-560C
L B092-59-560C
Power (Assy) R B094-58-560C
L B094-59-580
Motor, Regulator¶ R B094-58-580
L B094-59-580
¶Included w/Power Regulator Assy
6
Handle, Regulator
Beige R B092-58-580-43
L B093-58-580-43
Blue R B092-58-580-48
L B093-58-580-48
Off Black R B092-58-580-65
L B093-58-580-65
REAR DOOR
SHEET METAL
Shell Assy, Door
Sedan R BF67-72-020D
L BF67-73-020D
Wagon R BJ10-72-020D
L BJ10-73-020D
Panel, Door Repair¶ R BF67-72-031A
L BF67-73-031A
¶Included w/Door Shell Assy
EXTERIOR TRIM
Moulding, Belt
Sedan
Black R B097-50-660
L B097-50-670
Bright R B093-50-660
L B093-50-670
Wagon
Black R B227-50-660
L B227-50-670
Bright R B223-50-660
L B223-50-760A
Moulding, Side¶
Bright
45mm Width R B093-50-683A
L B093-50-693A
85mm Width R B100-50-683A
L B100-50-693A
Argent
45mm Width R B094-50-683A
L B094-50-693A
85mm R B101-50-683A
L B101-50-693A
¶Order by Application
Tape, Stripe-See Stripe Tape Section
Decal
"DOHC 16V Turbo" R/L B333-51-771
INTERIOR TRIM
1 Panel Assy, Trim¶
Base Model R BF67-68-520A-48
L BF67-68-550A-48
DX Model R BF77-68-520A-48
L BF77-68-550A-48
GT Model R B304-68-520-48
L B303-68-550A-48
LX Model
w/Pwr Windows R BM90-68-520-48
L BM90-68-550A-48
w/o Pwr Windows R BM89-68-520A-48
L BM89-68-550A-48
2
Weatherstrip, Inner (a) R B092-72-820
L B092-73-820
(a) Included w/Trim Panel
3
Armrest¶ R/L B100-69-37X-48
¶Blue listed, Order by Application
43 Beige; 48 Blue; 65 Off-Black
HARDWARE
Latch
w/o Pwr Locks R B092-72-310
L B092-73-310
w/Pwr Locks R B093-72-310A
L B093-73-310
Striker R/L B092-58-361A
Handle, Outside
Black R B092-72-410
L B092-73-410
Bright R B093-72-410
L B093-73-410
Handle, Inside
Painted
Beige R/L B001-58-330A-43
Blue R/L B001-58-330A-48
Off Black R/L B001-58-330A-65
Bright
Beige R/L B093-58-330-43
Blue R/L B093-58-330-48
Off Black R/L B093-58-330-65
Hinge, Upper R B092-72-210B
L B092-73-210B
Hinge, Lower R B216-72-240A
L B216-73-240A
Check, Door R/L B092-72-270A
Weatherstrip, Door
Sedan R B092-72-760E
L B092-73-760E
Wagon R B216-72-760B
L B216-73-760B
Welt, Door Opening
Sedan
Beige R B100-68-912B-43
L B100-68-922-43
Blue R B100-68-912A-48
L B100-68-922A-48
Off Black R B100-68-912B-02
L B100-68-922A-02
Wagon
Beige R B216-68-912-43
L B216-68-922-43
Blue R B216-68-912-48
L B216-68-922-48
Off Black R B216-68-912A-65
L B216-68-922-65
