MAZDA 323 1988-89
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
33
madpl1_g01_
Page 33—April 22, 2004—13:28:55—Version Manufacturer
4WD B210-39-010A
9
Mount, Upper Side
4WD B210-39-070C
10
Bracket, Upper Side
4WD B253-54-250D
11
Crossmember, Trans
2WD E001-39-800C
4WD B362-39-800A

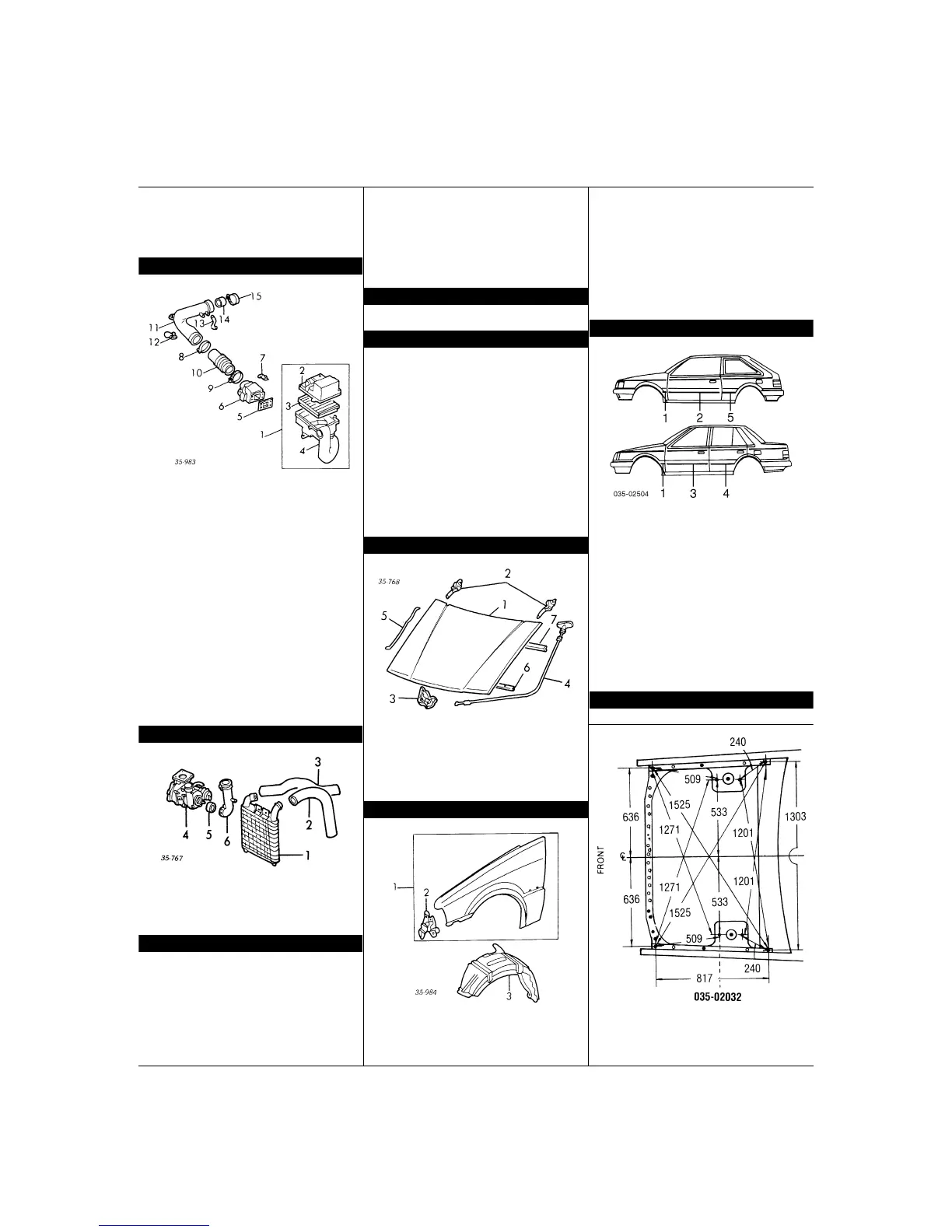

AIR CLEANER
1
Cleaner Assy, Air
w/o Turbo B630-13-320F
w/Turbo B660-13-320E
2
Cover, Air Cleaner¶
w/o Turbo B630-23-601B
w/Turbo B660-23-601B
3
Element, Cleaner¶
E5D3-23-603A
4
Duct, Fresh Air¶
E5D3-13-201A
¶Included w/Air Cleaner Assy
5
Gasket
w/o Turbo B6VD-13-211
w/Turbo B660-13-211
6
Meter, Air Flow
w/o Turbo B630-13-210A
w/Turbo B660-13-210
7
Bracket, Air Meter
E5D3-13-311
Clamp
8 Front B630-13-736
9Rear
w/o Turbo E5A1-13-225
w/Turbo FEH5-13-736
10
Hose, Air
w/o Turbo B630-13-221A
w/Turbo B660-13-221A
11
Pipe, Air Intake
B675-13-331
12
Bracket, Intake Pipe
w/o Turbo B630-20-27X
w/Turbo B660-20-270C
13
Hose, Ventilation
B630-13-742A
14
Seal, Rubber
E5A1-13-217D
15
Clamp, Intake Pipe
FEH5-13-736
INTERCOOLER
1
Intercooler
B660-13-565B
Hose, Air Intake
2 Outer B660-13-222A
3 Inner B660-13-223B
4
Turbocharger
B6E8-13-700
5
Joint, Rubber
FEG7-13-248
6
Pipe, Air
B660-13-231C
EXHAUST
Manifold, Exhaust
w/o Turbo B630-13-450C
w/Turbo B660-13-450B
Pipe, Exhaust
w/o Turbo B601-40-500C
w/Turbo
2WD B624-40-500
4WD B623-40-500
Converter, Catalytic
w/o Turbo B6Y6-20-600
w/Turbo
2WD B6B3-20-600
4WD B6E8-20-600
Resonator
w/o Turbo B601-40-300C
w/Turbo
2WD B671-40-300A
4WD B676-40-300
Muffler & Tailpipe
w/o Turbo
Hatchback, Sedan E525-40-100F
Wagon E525-40-100F
w/Turbo
2WD B672-40-100A
4WD B663-40-100A
A/C REFRIGERANT CAPACITIES
A/C R-12 Refrigerant Capacity
1988-89: 24-27 Ozs (1.50-1.68 Lbs)
A/C /HEATER
Condenser¶
0000-67-A14A-8F
¶Add'l Parts &/or Dealer Contact Required
Fan Assy, Condenser
0000-67-A00A-8F
Compressor/Clutch Assy
w/o Turbo BK50-61-450
w/Turbo B262-61-450B
Compressor¶
w/o Turbo BK05-61-K00
w/Turbo 0000-67-D02A-8G
Clutch¶
w/o Turbo BK50-61-L10
w/Turbo 0000-67-D01A-8G
¶Included w/Compressor/Clutch Assy
Core, Evaporator
0000-67-B35A-6F
Case, Evaporator Upper
0000-67-B11A-6F
Case, Evaporator Lower
0000-67-B21A-6F
Valve, Expansion
0000-67-B38B-6B
Receiver/Drier
0000-67-A90A-8F
Heater Assy
BF67-61-130A
Core, Heater¶
BF67-61-A10
Motor, Blower¶
BF67-61-140
Case, Blower¶
R/L BF67-61-A01-2
¶Included w/Heater Assy
HOOD
1
Panel, Hood
BL53-52-310C
2
Hinge, Hood
R BM89-52-410B
L BM89-52-420B
3
Latch
BL53-56-620C
4
Cable, Release
B092-56-710B
5
Rod, Support
B092-52-511
6
Weatherstrip, Front
BF67-56-750
7
Weatherstrip, Rear
B092-56-795B
Insulator, Hood
E001-68-601A
Insulator, Dash
BF70-68-611C
FRONT FENDER
1
Fender Assy
R BM89-52-110A
L BM89-52-210A
2
Bracket, Side Marker¶
R B300-52-120
L B300-52-220
¶Included w/Fender Assy
3
Skirt
Right B092-56-130D
Left
w/o Turbo B092-56-140F
w/Turbo B258-56-140A
Moulding, Side¶
Bright
45mm Width R B093-50-681
L B093-50-691
85mm Width R B100-50-681
L B100-50-691
Argent
45mm Width R B094-50-681
L B094-50-691
85mm Width R B101-50-681
L B101-50-691
¶Adhesive Type
STRIPE TAPE
1
Fender
Blue/Navy R B092-50-881-53
L B092-50-886-53
White/Silver Metallic R B092-50-881-31
L B092-50-886-31
Front Door
2 Hatchback
Blue/Navy R/L B111-50-882-53
White/Silver Metallic R/L B111-50-882-31
3 Sedan
Blue/Navy R/L B092-50-882-53
White/Silver Metallic R/L B092-50-882-31
4
Rear Door
Blue/Navy R/L B092-50-883-53
White/Silver Metallic R/L B092-50-883-31
Quarter Panel
Blue/Navy R B130-50-884-53
L B130-50-888-53
White/Silver Metallic R B130-50-884-31
L B130-50-888-31
Rear Body
Blue/Navy B130-50-891-53
White/Silver Metallic B130-50-891-31
UNDERHOOD DIMENSIONS
W/O GTX 4WD
