MAZDA 323 1988-89
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
34
madpl1_g01_
Page 34—April 22, 2004—13:28:56—Version Manufacturer

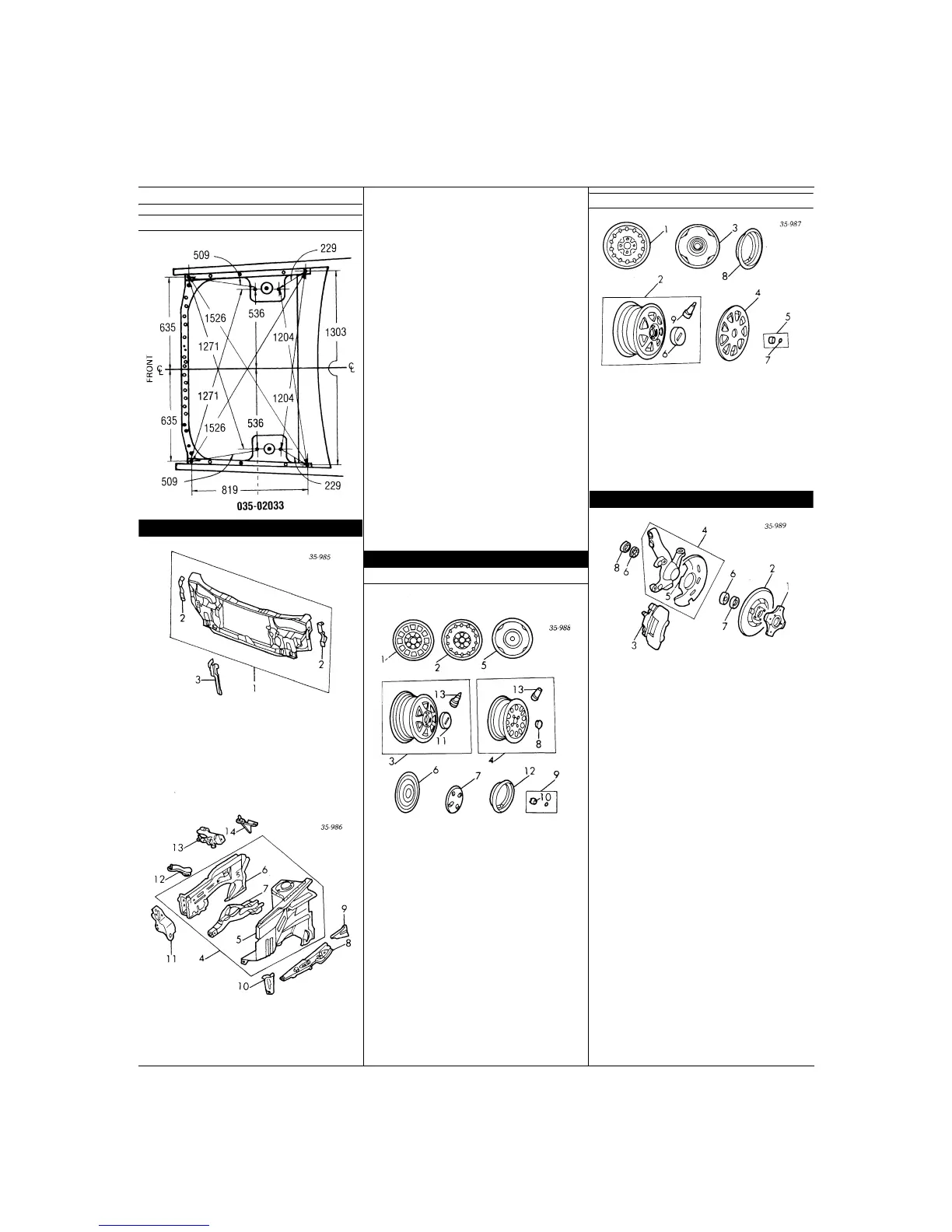

UNDERHOOD DIMENSIONS Cont’d
W/GTX 4 WD
FRONT INNER STRUCTURE
1
Support, Radiator
w/o Turbo B092-53-100K
w/Turbo B258-53-100D
2
Bracket, Lamp¶-See Lamp Section
¶Included w/Radiator Support
3
Support, Hood Latch
w/o Turbo B300-56-231A
w/Turbo B332-56-230
Tray, Battery
BG62-56-032A
Bracket, Battery
B092-54-270A
4
Apron Assy
Hatchback, Sedan
Right BF67-53-200D
Left
Man Trans BF67-54-200D
Auto Trans BM90-54-200A
Wagon R BF67-53-200D
L BF67-54-200D
5
Panel, Apron¶
Hatchback
w/o Turbo R BF67-53-210J
L BF67-54-210J
w/Turbo R BK14-53-210E
L BK14-54-210D
Sedan, Wagon R BF67-53-210J
L BF67-54-210J
6
Frame, Apron (HSLA)¶
Hatchback
w/o Turbo R BF67-53-310G
L BF67-53-350F
w/Turbo R BN03-53-300
L BK14-53-350B
Sedan
Right BF67-53-310G
Left
Man Trans BF67-54-310F
Auto Trans BM90-54-310
Wagon R BF67-53-310G
L BF67-54-310F
7
Sidemember, Front (HSLA)¶
Hatchback, Sedan
w/o Turbo R BF67-53-350F
L BF67-54-350F
w/Turbo R/L BK14-53-350B
Wagon R BF67-53-350F
L BF67-54-350F
¶Included w/Apron Assy
8
Reinf, Apron (HSLA)
R B094-53-220
L B094-54-220
9
Gusset, Apron
R BF67-53-024
L BF67-54-024
10
Stay, Bumper-See Front Bumper Section
11
Hook, Tie-Down
Right
w/o Turbo B092-56-340
w/Turbo B210-56-350
Left B092-56-360
Bracket, Air Cleaner
12 Front B308-54-250A
13 Rear
Man Trans B103-54-260B
Auto Trans B308-54-260A
14
Brkt, Eng Mtg Frame
B253-54-250D
WHEEL
W/O TURBO
Wheel, Steel
1 13x4-1/2" 9965-60-453
2 13x5" 9965-66-5030
Wheel Assy, Aluminum
3 Canada N.A.
4 USA 8BB5-37-600
5
Wheel, Spare
9965-12-404
6
Cover, Wheel
B300-37-170
7
Cap, Hub
4-1/2" Wheels BL55-37-170
5-1/2" Wheels BL53-37-170
Emblem, Center
8 Steel Wheels (a) B001-37-192
9 Alloy Wheels¶ E001-37-190A
(a) Included w/Center Cap Assy
¶Included w/Aluminum Wheel Assy (USA)
Cap Assy, Center
10 Steel Wheels B001-37-190
11 Alloy Wheels¶ E001-37-190A
¶Included w/Aluminum Wheel Assy (Canada)
12
Ring, Trim
1011-37-182D
13
Valve, Air¶ (a)
Canada N.A.
USA 9963-60-4130
¶Included w/Aluminum Wheel Assy
(a) Order by Application
W/TURBO
1
Wheel, Steel
9965-57-554
2
Wheel Assy, Aluminum
8BB3-37-600A
3
Wheel, Spare
9965-12-404
4
Cap, Hub
E001-37-170
Cap Assy, Center
5 Steel Wheels B001-37-190
6 Alloy Wheels¶ E001-37-190A
¶Included w/Aluminum Wheel
7
Emblem, Center¶
B001-37-192
¶Included w/Cap Center Assy (Canada)
8
Ring, Trim
H002-37-182A
9
Valve, Air¶ (a)
E001-37-190A
¶Included w/Aluminum Wheel Assy
(a) Order by Application
FRONT SUSPENSION
1
Hub
R/L B001-33-061B
2
Rotor, Brake
2 Wheel Disc Brakes R/L B107-33-251
4 Wheel Disc Brakes R/L B212-33-251
3
Caliper, Brake
2WD
Hatchback, Sedan R B1Y7-33-98ZR
L B1Y7-33-99ZR
Wagon R BP39-33-980
L BP39-33-990
4WD R B2Y2-33-98ZR
L B2Y2-33-99ZR
Hose, Brake
2 Wheel Disc Brakes R/L B092-43-810A
4 Wheel Disc Brakes R/L B092-43-980
4
Knuckle Assy
2 Wheel Disc Brakes
Hatchback, Sedan R BG34-33-020B
L BG34-33-030B
Wagon R BJ01-33-020B
L BJ01-33-030B
4 Wheel Disc Brakes
2WD R BG95-33-020B
L BG95-33-030B
4WD R B212-33-020A
L B212-33-030A
5
Shield, Splash¶
2 Wheel Disc Brakes R B210-33-261A
L B210-33-271A
4 Wheel Disc Brakes
2WD R BG95-33-261B
L BG95-33-271B
4WD R B212-33-261A
L B212-33-271A
¶Included w/Knuckle Assy
6
Bearing
R/L B001-33-047-MV
7
Seal, Bearing Outer
2WD R/L B092-33-067
4WD R/L B210-33-067
8
Seal, Bearing Inner
2WD R/L B001-33-065A
4WD R/L B210-33-065
Illustration Located in Next Column
9
Spring¶
Man Trans R/L BF69-34-011
To Next Page
