Mazda 323 - Rear Lamps; Fuel Tank; Rear Body

MAZDA 323 1988-89
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
42
madpl1_g01_
Page 42—April 22, 2004—13:29:08—Version Manufacturer
REAR DRIVE AXLE Cont’d
5 Boot, Inner¶ R/L F012-22-540
¶Included w/Axle Shaft Assy
FUEL TANK
Tank, Fuel
2WD BL78-42-110B
4WD BN03-42-110C
Cap, Filler
2WD BF67-42-250
4WD F044-42-250
Pipe, Filler
2WD
Hatchback, Sedan BF67-42-210D
Wagon BM89-42-210
4WD BN03-42-210A
Gauge, Tank Unit¶ BM29-60-960A
¶Order by Application
Pump, Fuel
2WD B630-13-350C
4WD E5F7-13-350C

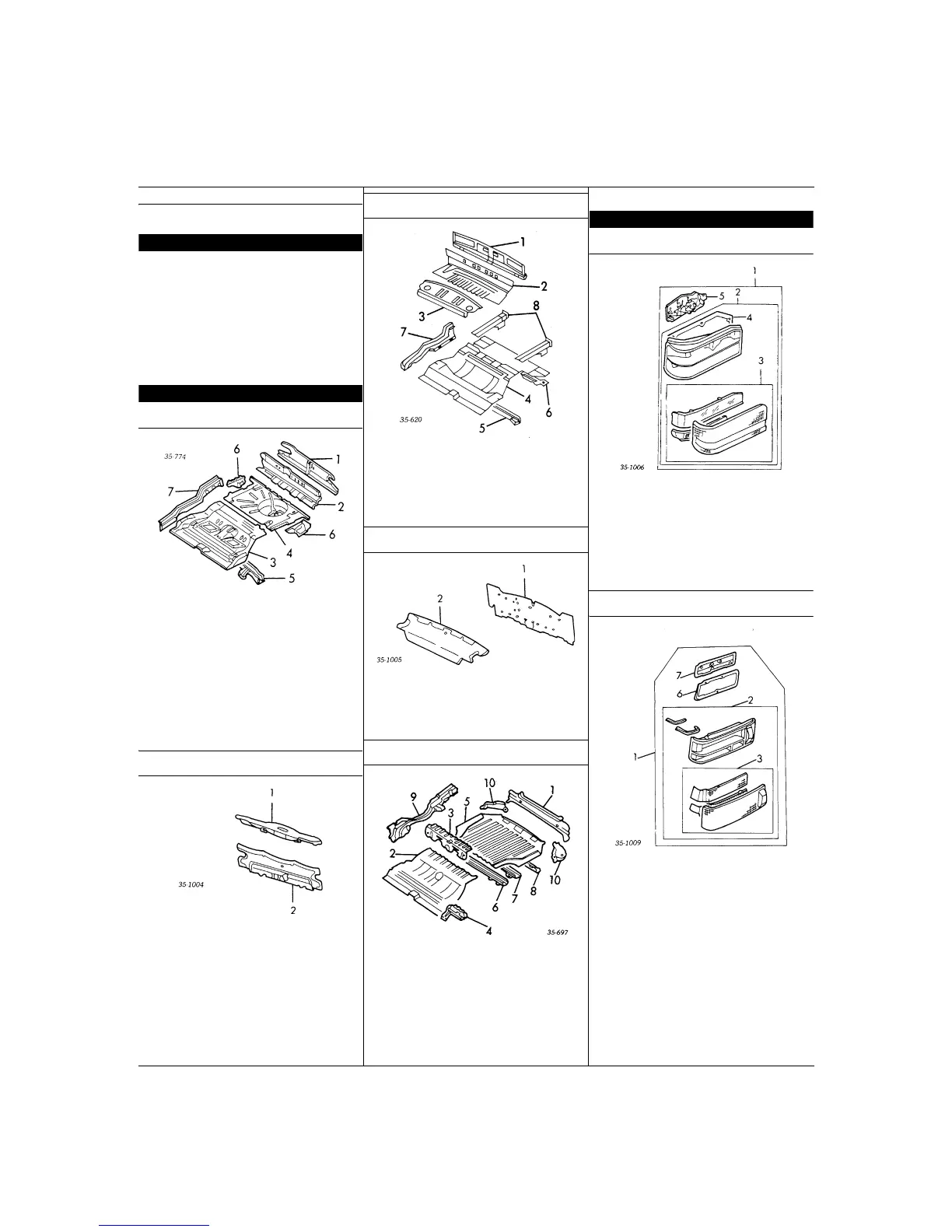

REAR BODY
SHEET METAL
HATCHBACK
1 Panel, Rear BM89-70-750
2
Panel, Skirt
2WD B092-70-790
4WD BK14-70-790
Pan, Floor
3 Center B210-53-720D
4Rear
2WD B092-53-710D
4WD B210-53-730C
5
Crossmember, Center B210-53-920C
Crossmember, Rear B092-53-761A
6
Panel, Side Floor R BN03-53-740A
L BN03-54-740A
Rail, Frame Rear
2WD R BF67-53-850
L BF67-54-850
4WD R BN03-53-810
L BN03-54-810A
7
Sidemember, Center R BF67-53-810
L BF67-54-810A
INTERIOR TRIM
HATCHBACK
Panel, Inside Trim
1 Upper
Beige R B100-68-882-43
Blue B100-68-882-48
Off Black B100-68-882-65
2Lower
2WD
Beige B100-68-881B-43
Blue B100-68-881B-48
Off Black B100-68-881B-65
4WD
Beige B210-68-881-43
Blue B210-68-881-48
Off Black B210-68-881-65
SHEET METAL
SEDAN
1 Panel, Rear BN07-70-750
2
Panel, Skirt B130-70-790A
3
Panel, Package Tray BF89-70-500D
4
Pan, Rear Floor B130-53-710B
5
Crossmember, Center B092-53-920D
6
Crossmember, Rear B092-53-761A
7
Sidemember, Side R BF67-53-810
L BF67-54-810A
8
Rail, Frame Rear R BF89-53-850A
L BF89-54-850
INTERIOR TRIM
SEDAN
1 Panel, Inside Trim
Beige BF92-68-881A-43
Blue BF92-68-881A-48
Off Black BF92-68-881A-65
2
Trim, Package Tray¶ BF92-68-881A-48
¶Blue listed, Order by Application
43 Beige; 48 Blue; 65 Black
Speaker, Radio R/L 0000-81-5616-01
SHEET METAL
WAGON
1 Panel, Rear BJ19-70-790
2
Pan, Floor Center B216-53-710C
3
Extension, Center Floor B216-53-730B
4
Crossmember, Center Floor B223-53-920A
5
Pan, Compt Floor B216-53-720C
Crossmember, Compt Floor Pan
6 Front B216-53-960A
7 Center B216-53-940A
8 Rear BJ01-53-890A
9
Rail, Frame Rear R BJ19-53-810F
L BJ19-54-810E
10
Gusset, Frame Rail R B216-53-89X
L B216-54-89X
Plate, Mat Set
Beige B216-68-812A-43
Blue B216-68-812A-48
Off Black B216-68-812A-65
REAR LAMPS
COMBINATION LAMP
HATCHBACK
1 Lamp Assy, Combination R 8DBF-51-150
L 8DBF-51-160
2
Lens & Body Assy¶ R BM89-51-170A
L BM89-51-180A
3
Lens Assy¶ (a) R BM89-51-151
L BM89-51-161
(a) Included w/Lens & Body Assy
4
Gasket¶ R/L B092-51-158
5
Panel, Socket¶ R BM89-51-155
L BM89-51-165
Bulb, Signal/Back-Up¶ R/L 0000-11-1156
Bulb, Tail/Stop¶ R/L 0000-11-1157
Bulb, Side Marker¶ R/L 0000-11-1156
¶Included w/Combination Lamp Assy
COMBINATION LAMP
SEDAN
1 Lamp Assy, Combination
Black Mldg R 8DBH-51-150
L 8DBH-51-160
Bright Mldg R 8DBG-51-150
L 8DBG-51-160
2
Lens & Body Assy¶
Black Mldg R BN08-51-170
L BN08-51-180
Bright Mldg R BN07-51-170
L BN07-51-180
3
Lens Assy¶ (a) R BN07-51-151
L BN07-51-180
4
Protector¶ (a) R B130-51-157
L B130-51-167
5
Moulding¶ (a)
Black R B340-51-157
L B340-51-167
Bright R B339-51-157
L B339-51-167
(a) Included w/Lens & Body Assy
6
Gasket, Housing¶ R/L B339-51-158
7
Socket, Panel¶ R BN07-51-155
L BN07-51-165
Bulb, Signal/Back-Up¶ R/L 0000-11-1157
Bulb, Tail/Stop¶ R/L 0000-11-1156
Bulb, Side Marker¶ R/L 0000-11-1157-NA
