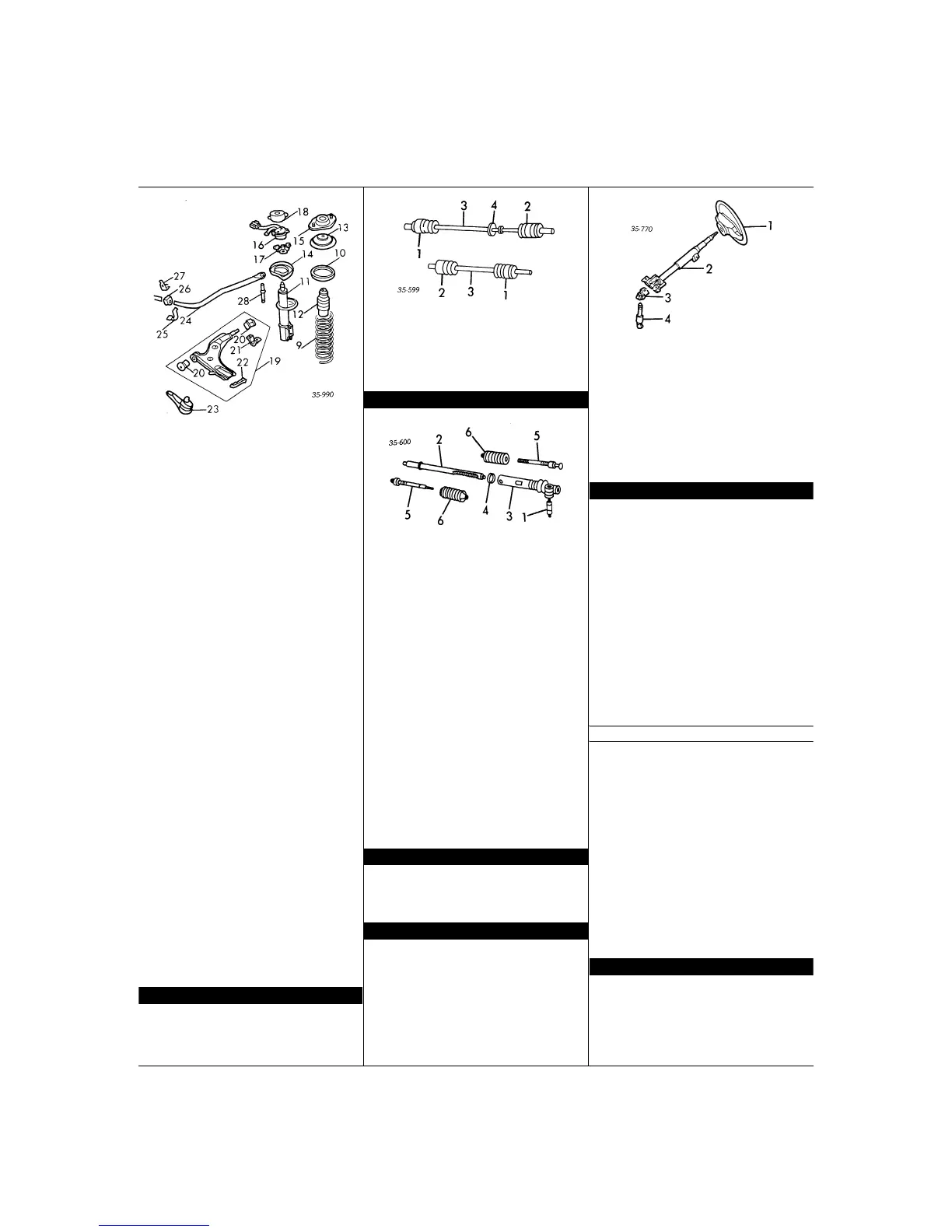

MAZDA 323 1988-89
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
35
madpl1_g01_
Page 35—April 22, 2004—13:28:58—Version Manufacturer
Auto Trans R/L B330-34-011A
¶Order by Application
10
Seat, Spring Lower
R/L B092-34-013
11
Strut
w/o Turbo R B097-34-700C
L B097-34-900C-9U
w/Turbo
2WD R B128-34-700C
L B128-34-900C
4WD R B212-34-700C
L B212-34-900C
12
Bumper, Rebound
w/o Turbo R/L B001-34-111A
w/Turbo
2WD R/L B128-34-111
Cover, Lever
R/L B128-34-015A
13
Seat, Spring Upper
w/o Turbo R/L B001-34-340A
w/Turbo
2WD R/L B128-34-340
4WD R/L B211-34-340
14
Seat, Stopper
4WD R/L B210-34-345A
15
Insulator, Mounting
w/o Turbo R/L B029-34-390D
w/Turbo
2WD R/L B128-34-390C
4WD R/L B210-34-390C
16
Actuator¶
R/L B128-34-080A
17
Plate, Actuator¶
R/L B128-34-088
18
Cap, Actuator¶
R/L B128-34-019
¶Use w/Turbo 2 WD
19
Arm Assy, Lower¶
2WD
w/Turbo R B097-34-300D
L B097-34-350D
w/o Turbo R B092-34-300D
L B092-34-350D
4WD
w/Turbo R B212-34-300C
L B212-34-350A
¶Includes Bushing, Bracket & Protector
Arm, Lower
2WD R B092-34-310A
L B092-34-360A
4WD R B210-34-310B
L B210-34-360
20
Bushing, Arm¶
Front
w/o Turbo R/L B210-34-470
w/Turbo
2WD R/L B097-34-470A
4WD R/L B210-34-470
Rear
w/o Turbo R/L B092-34-460B
w/Turbo
2WD R/L B092-34-460B
4WD R/L B260-34-460
21
Bracket, Arm¶
R/L B092-34-201
22
Protector, Arm¶
R B092-34-321
L B092-34-331
¶Included w/Lower Arm Assy
23
Ball Joint
R/L B092-34-550
24
Bar, Stabilizer
w/o Turbo
Man Trans R/L B097-34-151B
Auto Trans R/L B310-34-151B
w/Turbo R/L B126-34-151A
25
Plate, Stabilizer
R/L B097-34-155
26
Bushing, Bar
R/L B084-34-156
27
Bracket, Stabilizer
R/L B097-34-160A
28
Bolt, Stabilizer
R/L B097-34-158
FRONT DRIVE AXLE
Illustration Located in Next Column
Joint Set
1 Outer¶ R F003-22-510B
L F003-22-610B
2 Inner¶ R/L F003-22-520C
3
Shaft, Axle¶
R F003-25-400F
L F003-25-600F
4
Damper, Dynamic¶
R/L F002-25-411B
Boot Set¶
Outer R/L BS10-V9-050-9U
Inner R/L F003-22-540B
¶Order by Application
FRONT STEERING LINKAGE/GEAR
Gear Assy
Manual BF67-32-110B
Power
2WD BF69-32-110D
4WD BK96-32-110E
1
Pinion¶
Manual BF67-32-122
Power
2WD BF69-32-122
4WD B211-32-123
2
Rack¶
Manual BF67-32-119
Power
2WD BF69-32-119
4WD BK96-32-119
3
Housing, Rack¶
Manual BF67-32-120A
Power
2WD BF69-32-120
4WD BK96-32-120A
4
Bushing¶
Manual BF67-32-114
Power
2WD B093-32-203
5
Joint, Rack¶
Manual
2WD BF67-32-240
4WD B210-32-240
Power
2WD R B093-32-240
L B093-32-250
4WD R B211-32-240
L B211-32-250
6
Boot¶
Manual BF67-32-125
Power
2WD B093-32-125
4WD B211-32-125
¶Included w/Gear Assy
End, Outer
R/L 8AB1-32-280
STEERING PUMP
Pump, Steering
B302-32-600A
Pulley, Pump
B093-32-620
Belt, Drive¶
B303-18-381-9U
Hose, Pressure¶
BF71-32-490C
Hose, Return¶
BF72-32-682
¶Order by Application
STEERING WHEEL/COLUMN
Illustration Located in Next Column
1
Wheel Assy, Steering¶
GE60-32-980E-48
Cover, Wheel¶ (a)
GE60-32-049A-48
Pad, Horn¶ (a)
GE60-32-730-48
(a) Included w/Steering Wheel Assy
Cap, Horn¶
B095-32-800
¶Blue listed, Order by Application
43 Beige; 48 Blue; 65 Off-Black
Cover, Lock Housing
Upper
Beige BF67-60-220A-43
Blue BF67-60-220A-48
Off Black BF67-60-220A-65
Lower
Beige BF68-60-230A-43
Blue BF68-60-230A-48
Off Black BF68-60-230A-65
Lock Assy, Ignition
BF67-76-290A
Switch, Ignition¶
BF67-66-151A
¶Included w/Ignition Lock Assy
2
Column, Steering
w/o Tilt Column BF67-32-100A
w/Tilt Column BF68-32-100A
3
Joint, Steering
BF67-32-850A
4
Shaft, Intermediate
2WD BF68-32-090A
4WD BK15-32-090
WINDSHIELD
Glass, Windshield
Mazda (Tint) BF69-63-901
Weatherstrip, Glass
8545-63-902
Moulding, Reveal Upper
Black 8AB2-50-865
Bright 8AB1-50-865
Moulding, Reveal Side/Corner
Black R 8AB2-50-860
L 8AB2-50-870
Bright R 8AB1-50-860
L 8AB1-50-870
Moulding, Inside Garnish¶
w/o Sunroof R B100-68-170A-06
L B100-68-190A-06
w/Sunroof R B101-68-170A-06
L B101-68-190A-06
¶Gray listed, Order by Application
06 Gray; 82 (Cloth), 92 (Vinyl) Beige
Mirror, Rear View
w/o Day/Night 8124-69-220
w/Day/Night B300-69-220B-65
Visor, Sun¶
Right
w/o Mirror BH08-69-270A-06
w/Mirror BF73-69-270B-06
Left BG72-69-320B-06
¶Gray listed, Order by Application
06 Gray; 82 (Cloth), 92 (Vinyl) Beige
WIPER SYSTEM
Blade, Wiper
R/L BF67-67-330B
Arm, Wiper
Standard R/L BF67-67-321
GT R/L BG64-67-321
Motor, Wiper
BL53-67-350A
Reservoir Assy
2WD
2.2 Liter Capacity
w/o Level Warning B092-67-480
w/Level Warning BF67-67-480B
5.5 Liter Capacity
w/o Level Warning BG73-67-480A
w/Level Warning BF69-67-480B
4WD BK14-67-480
Tank, Reservoir¶
2WD
2.2 Liter Capacity
w/o Level Warning B092-76-671
w/Level Warning BF67-76-671
5.5 Liter Capacity
w/o Level Warning BG73-76-671A
4WD BK14-67-481
Cap, Tank¶
UB39-51-815
Pump, Washer¶
8532-76-672
Switch, Low Level¶
BF67-67-488
¶Included w/Reservoir Assy
Nozzle, Spray
R/L BG72-67-510
COWL & DASH
Illustration Located in Next Column
1
Retainer, Cowl Panel
BF67-56-411B
2
Grille, Cowl
BL53-50-790B
3
Panel Assy, Cowl
BL53-54-510C
To Next Page
