Mazda 323 - Back Window; Quarter Panel

MAZDA 323 1988-89
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
39
madpl1_g01_
Page 39—April 22, 2004—13:29:03—Version Manufacturer
Beige B096-69-915A-82
7
Rail, Drip B096-69-856
8
Panel, Lower B096-69-838B
Cover, Lower Panel
9 Center B098-69-863A
10 Side R B098-69-861
L B098-69-862-00
Guide, Sunroof Panel
11 Front R B096-69-839
L B096-69-841
12 Rear
w/Steel Sunroof
Manual R/L BF68-69-842-3
Power R/L BF68-69-842-3
w/Glass Sunroof R/L B098-69-842-3
13
Housing B096-69-831C
14
Seal, Frame B096-69-899
15
Rail, Guide
w/Steel Sunroof
Manual R/L BF68-69-832-3
Power R B096-69-832A
L B096-69-833A
w/Glass Sunroof R B098-69-832A
L B098-69-833A
16
Cover, Guide Rail
w/Steel Sunroof R B096-69-834A
L B096-69-835A
w/Glass Sunroof R B098-69-834B
L B098-69-835B
17
Deflector¶ B096-69-845E
¶Order by Application
18
Link, Deflector R B096-69-846B
L B096-69-847B
19
Motor, Sliding Roof B096-69-848A
20
Bracket, Drive Unit
Manual BF68-69-844
Power B098-69-881C
Handle, Sliding Roof B004-69-855A
Regulator, Manual
Gray BF68-69-849A-06
Beige BF68-69-849A-92
BACK WINDOW
Glass, Back Window
Mazda (Tint) B132-63-93X
Weatherstrip, Glass B130-63-932D
Moulding, Reveal Upper
Black B131-50-611
Bright B130-50-611
Moulding, Reveal Side
Black R B130-50-612
L B131-50-613
Bright R/L B130-50-612-3
Moulding, Reveal Lower
Black B131-50-614
Bright B130-50-614
Cover, Joint Upper
Black R B131-50-615A
L B131-50-616A
Bright R B130-50-615A
L B130-50-616A
Cover, Joint Lower
Black R/L B131-50-617-8
Bright R/L B130-50-617-8

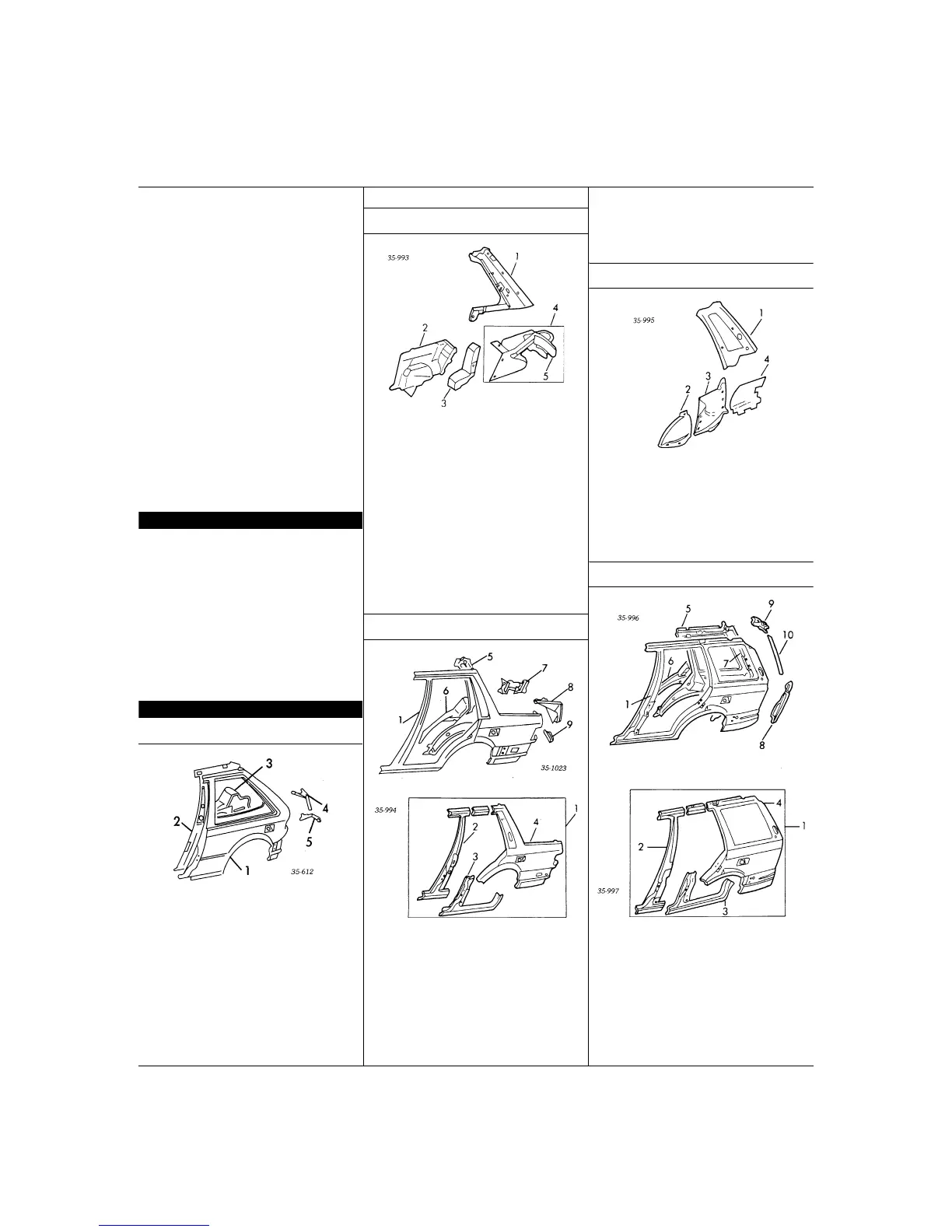

QUARTER PANEL
SHEET METAL
HATCHBACK
1 Panel Assy, Outer R BF71-70-410E
L BF71-71-410F
Door, Fuel
w/o Opener B092-42-410A
w/Opener B095-42-410A
Cylinder & Key BF70-76-240
2
Panel Assy, Inner
2WD R BG71-70-100M
L BG71-71-100M
4WD R BK14-70-100G
L BK14-71-100G
3
Panel, Wheelhouse Inner¶
2WD R B092-70-150E
L B092-71-150E
4WD R B210-70-150G
L B210-71-150F
Panel, Wheelhouse Outer
-Serviced w/Inner Panel Assy
¶Included w/Inner Panel Assy
4
Plate, Joint Upper R B092-70-452B
L B092-71-452B
5
Plate, Joint Lower R B092-70-451A
L B092-71-451A
INTERIOR TRIM
HATCHBACK
1 Panel, Pillar Trim
Gray R B120-68-270C-06
L B120-68-290C-06
Beige R B120-68-270C-92
L B120-68-290C-92
Panel, Trim
2 Front R B130-68-520B-65
L B130-68-550B-65
3 Rear R BK16-88-501-66
L BK16-88-551-66
4 Trunk Side (Assy) R BF71-68-860D-65
L BF71-68-870B-65
43 Beige; 48 Blue; 65 Off-Black
5
Cover, Rear Lamp¶
Beige R B100-68-863-43
L B100-68-873-43
Blue R B100-68-863-48
L B100-68-873-48
Off Black R B100-68-863-65
L B100-68-873-65
¶Included w/Trunk Side Trim Panel Assy
Cover, Luggage Compartment¶ BM91-68-856-48
¶Blue listed, Order by Application
09 Dark Gray; 26 Brown; 48 Blue; 65 Off-Black
Speaker, Radio R/L 0000-81-5610-01
SHEET METAL
SEDAN
1 Panel Assy, Outer R BF89-70-410L
L BF89-71-410M
2
Pillar, Center Outer¶ (a)
3 Panel, Outer Rear Rocker¶ (a)
4 Panel, Outer¶ R B130-74-220A
L BF89-74-250B
¶Included w/Outer Panel Assy
(a) See Rocker/Pillars/Floor Section
Door, Fuel
w/o Opener B092-42-410A
w/Opener B095-42-410A
Cylinder w/Key BF70-76-240
5
Panel Assy, Inner R BF89-70-100L
L BG84-71-100J
Panel, Wheelhouse¶
6 Inner R B092-70-150E
L B092-71-150E
Outer-Serviced w/Inner Panel Assy
Plate, Joint
7 Upper¶ R B130-70-180E
L B130-71-180E
8 Corner R B130-70-451A
L B130-71-451A
9 Lower R B130-70-452
L B130-71-452
¶Included w/Inner Panel Assy
INTERIOR TRIM
SEDAN
1 Panel, Pillar Trim¶ R B130-68-270-06
L B130-68-290-06
¶Gray listed, Order by Application
2
Panel, Wheelhouse Trim R B101-68-761A-48
L B101-68-771A-48
3
Panel, Front Trunk Side Right R BN07-68-861-48
L BH11-68-871-48
4
Panel, Rear Trunk Side R B130-68-862-48
L B130-68-872-48
Panel, Package Tray-See Rear Body Section
Trim, Package Tray¶
BF92-68-881A-48
¶Blue listed, Order by Application
Speaker, Radio R/L 0000-81-5616-01
SHEET METAL
WAGON
1 Panel Assy, Outer R BJ19-70-410C
L BJ19-71-410C
2
Pillar, Center Outer¶ (a)
(a) See Rocker/Pillars/Floor Section
3
Panel, Outer Rocker¶
Rear R B216-74-210A
L B216-74-240A
4
Panel, Outer¶ R B223-74-220
L BJ19-74-250
¶Included w/Outer Panel Assy
Door, Fuel
w/o Opener B092-42-410A
w/Opener B095-42-410A
Cylinder w/Key H057-76-240B
Panel Assy, Inner R BJ01-70-100H
L BJ01-71-100H
5
Panel, Inner¶-Serviced w/Inner Panel Assy
