Mazda 323 - Rear Bumper

MAZDA 323 1988-89
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
43
madpl1_g01_

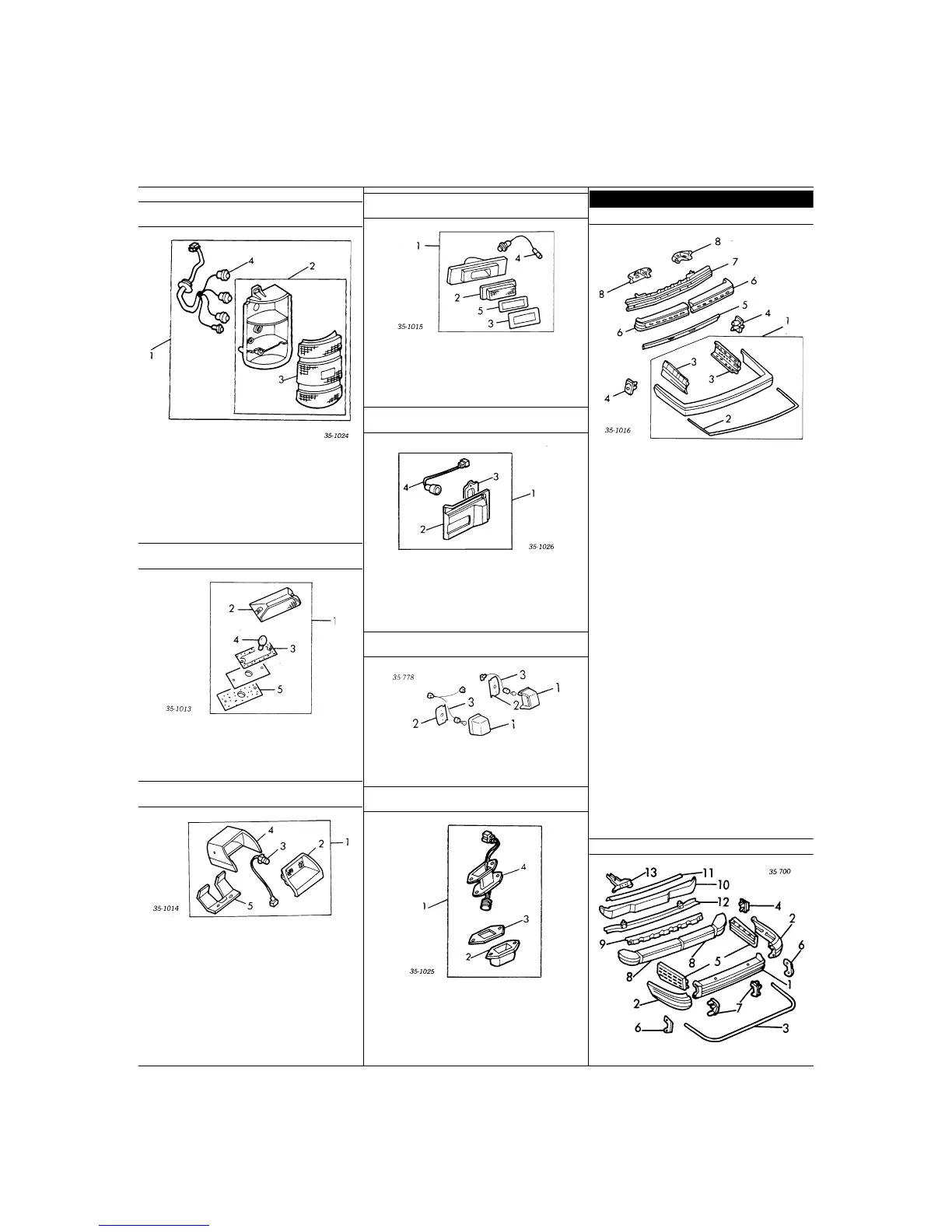

Page 43—April 22, 2004—13:29:09—Version Manufacturer
¶Included w/Combination Lamp Assy
COMBINATION LAMP
WAGON
1 Lamp Assy, Combination R 8DB6-51-150
L 8DB6-51-160
2
Lens & Body Assy¶ R BJ38-51-170
L BJ38-51-180
3
Lens¶ (a) R BJ38-51-170
L BJ38-51-180
(a) Included w/Lens & Body Assy
4
Socket w/Wire¶ R/L BJ38-51-155
Bulb, Signal/Back-Up¶ R/L 0000-11-1156
Bulb, Tail/Stop¶ R/L 0000-11-0921
Bulb, Side Marker¶ R/L 0000-11-1157
¶Included w/Combination Lamp Assy
HIGH MOUNT STOP LAMP
HATCHBACK
1 Lamp Assy, Stop (a) BF67-51-580A
(a) Located on Liftgate
2
Lens¶ BF67-51-583
3
Gasket¶ BF67-51-582
4
Bulb¶ 0000-11-1156
5
Protector¶ BF67-51-589
¶Included w/Stop Lamp Assy
HIGH MOUNT STOP LAMP
SEDAN
1 Lamp Assy, Stop (a)
Beige BN07-51-580-43
Blue BN07-51-580-48
Off Black BN07-51-580-65
(a) Located on Package Tray
2
Lens¶ BN07-51-593
3
Socket¶ BN07-51-584
Bulb¶ 0000-11-1156
4
Protector¶ BN07-51-587
5
Bracket, Lamp¶ BN07-51-598
¶Included w/Stop Lamp Assy
HIGH MOUNT STOP LAMP
WAGON
1 Lamp Assy, Stop (a) BJ38-51-580A
(a) Located on Liftgate
2
Lens¶ BJ38-51-583
3
Gasket¶ BJ38-51-582A
4
Socket¶ BJ38-51-584
Bulb¶ 0000-11-0168
5
Protector¶ BJ38-51-589A
¶Included w/Stop Lamp Assy
LICENSE LAMP
HATCHBACK
1 Lamp Assy, License R 8BB7-51-270
L 8BB7-51-280
2
Lens & Housing¶ R BM89-51-271
L BM89-51-2L1
3
Gasket¶ R/L BM89-51-273
4
Socket¶ R BM89-51-272
L BM89-51-2L2
Bulb¶ R/L 0000-11-0089
¶Included w/License Lamp Assy
LICENSE LAMP
SEDAN
1 Lens¶-Serviced w/Combination Lamp
¶See Combination Lamp Section
2 Gasket R/L B339-51-273
3
Socket R/L B339-51-272
Bulb R/L 0000-11-0089
LICENSE LAMP
WAGON
1 Lamp Assy, License R/L BJ38-51-270A
2
Lens¶ R/L B216-51-274C
3
Protector¶ R/L B216-51-277
4
Gasket¶ R/L B216-51-273
Bulb¶ R/L 0000-11-0194
¶Included w/License Lamp Assy
REAR BUMPER
HATCHBACK, SEDAN
1 Face Bar Assy
Hatchback
Black
Bright Mldg BF67-50-220
Argent Mldg BF71-50-220
Painted (P) BF82-50-220
Sedan
Black
Bright Mldg (a) BV1V-50-221
Argent Mldg BF89-50-220
Painted (P) BV1V-50-221
(a) Add'l Parts &/or Dealer Contact Required
(P) Paint to Match
2
Moulding, Cover¶
Hatchback
Bright BF67-50-225
Argent BF71-50-225
Sedan
Bright BF90-50-225
Argent BF89-50-225
3
Bracket, Slide Inner¶
Hatchback R BF67-50-242
L BF67-50-252
Sedan R BF89-50-242
L BF89-50-252
¶Included w/Face Bar Assy
4
Bracket, Slide Outer R/L B092-50-230
5
Retainer, Cover
Hatchback BF67-50-229
Sedan BF89-50-229
6
Absorber, Impact
Black Bumper
Hatchback R BF67-50-223
L BF67-50-224
Sedan R BF89-50-223
L BF89-50-224
Painted Bumper
Hatchback R BF82-50-230
L BF82-50-240
Sedan R BF92-50-223
L BF92-50-224
7
Bar, Reinforcement
w/Black Bumper
Hatchback BF67-50-260
Sedan BF89-50-260
w/Painted Bumper
Hatchback BF82-50-240
Sedan BF92-50-261
8
Support, Bumper R BF82-50-270
L BF82-50-280
WAGON
Face Bar (Cover)
