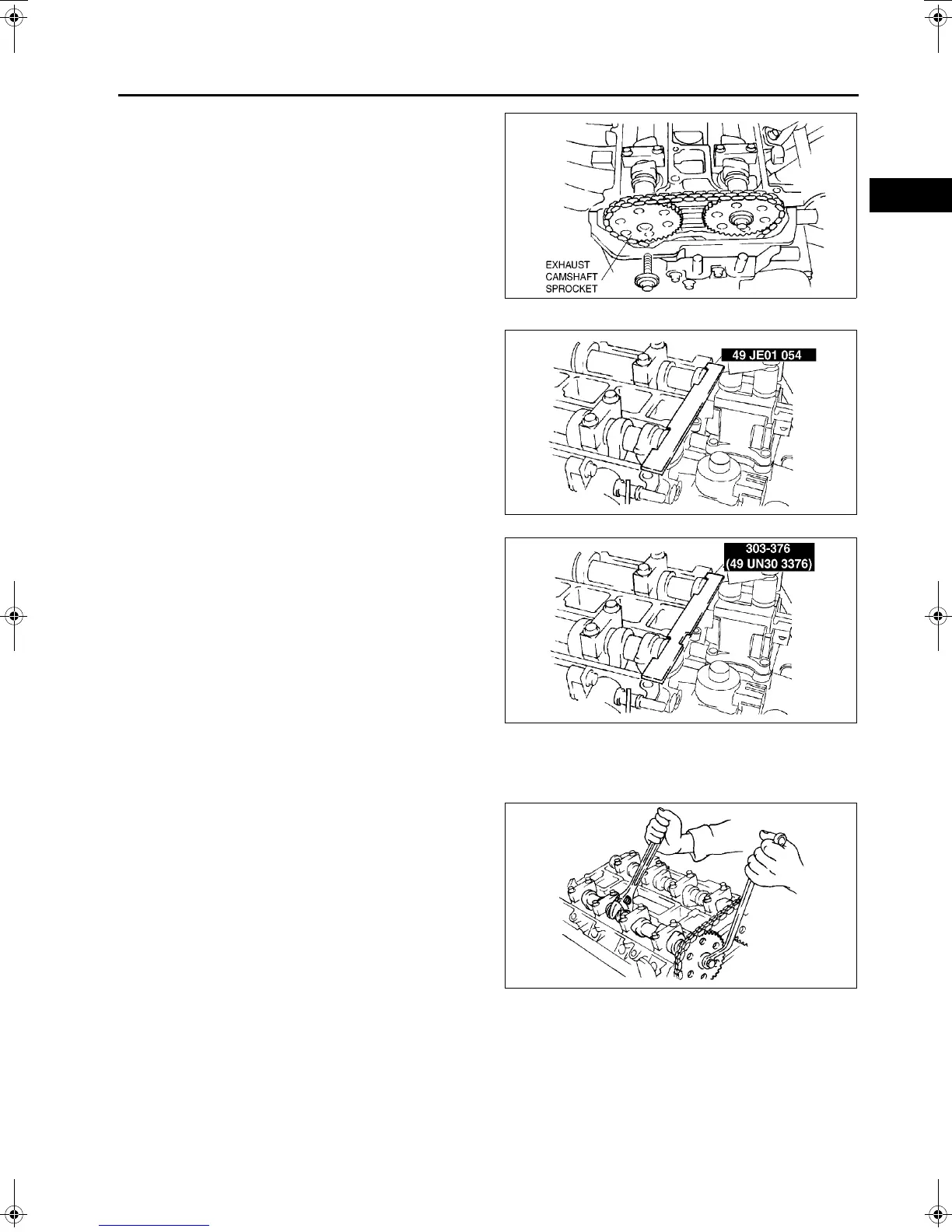

15. Install the exhaust camshaft sprocket.
Note
• Do not tighten the bolt for the camshaft
sprocket during this step. First confirm the
valve timing, then tighten the bolt.
16. Install the SST to the camshaft as shown.
Europe
Except Europe
17. Remove the M6 x 1.0 bolt from the engine front cover to apply tension to the timing chain.
18. Turn the crankshaft clockwise the crankshaft is in the No.1 cylinder TDC position.
19. Hold the exhaust camshaft using a suitable
wrench on the cast hexagon as shown.
20. Tighten the exhaust camshaft sprocket lock bolt
Tightening torque
69—75 N·m {7.10—7.6 kgf·m,
50.9—55.3 ft·lbf}
21. Remove the SST from the camshaft.
22. Remove the SST from the block lower blind plug.
23. Rotate the crankshaft clockwise two turns until
the TDC position.
• If not aligned, loosen the crankshaft pulley
lock bolt and repeat from Step 14.
24. Apply silicone sealant to the engine front cover upper blind plug.
