Mazda LF - Cylinder Block (I) Assembly

ENGINE
B–29
B

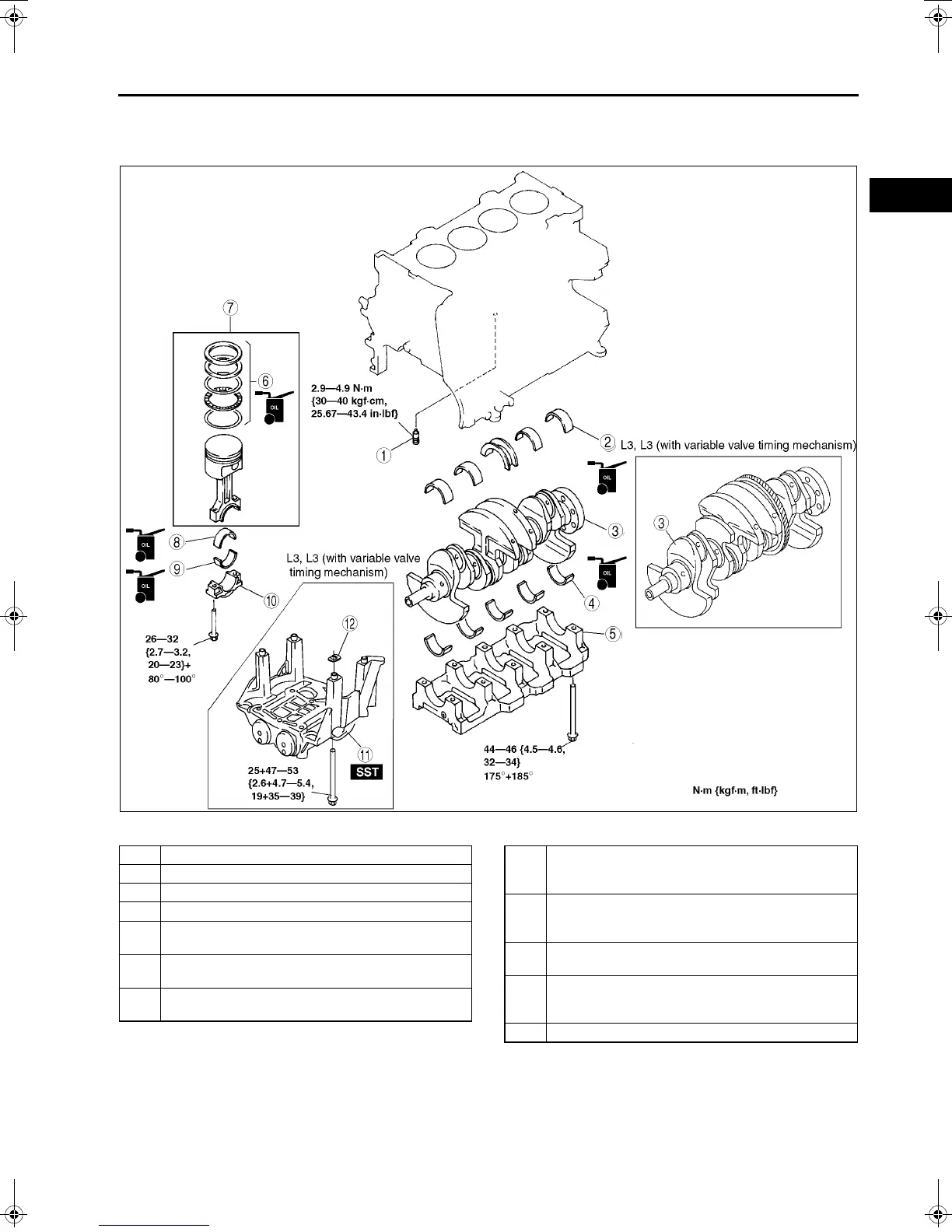

CYLINDER BLOCK (I) ASSEMBLY
A6E242402000E09
1. Assemble in the order indicated in the table.
2.
.
AME2224E039
1 Oil jet valve
2 Upper main bearing, thrust bearing
3 Crankshaft
4 Lower main bearing, thrust bearing
5 Main bearing cap
(See B–30 Main Bearing Caps Assembly Note)
6
Piston ring
(See B–30 Piston Ring Assembly Note)
7 Connecting rod, Piston assembly
(See B–30 Piston Assembly Note)
8 Upper connecting rod bearing
(See B–31 Connecting Rod Bearing Assembly
Note)
9 Lower connecting rod bearing
(See B–31 Connecting Rod Bearing Assembly
Note)
10 Connecting rod cap
(See B–31 Connecting Rod Cap Assembly Note)
11 Engine balancer (L3 (with variable valve timing
mechanism))
(See B–31 Balancer Unit Assembly Note)
12 Adjustment shim
