Mazda LF - Cylinder Head (II) Assembly

ENGINE
B–39
B
CYLINDER HEAD (II) ASSEMBLY
A6E242402000E12

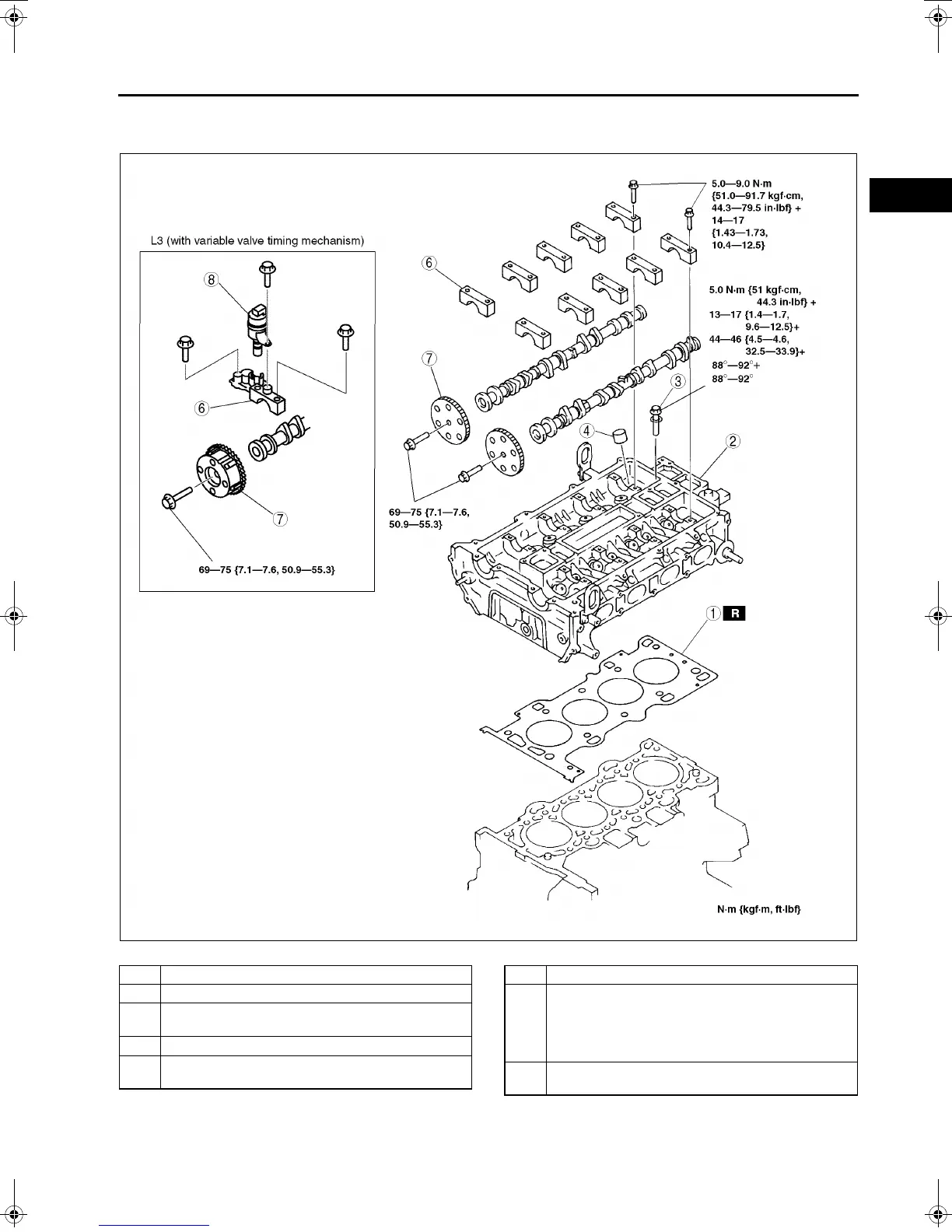

1. Assemble in the order indicated in the table.
2.
.
AME2224E046
1 Cylinder head gasket
2 Cylinder head
3 Cylinder head bolt
(See B–40 Cylinder Head Bolt Assembly Note)
4 Tappet
5 Camshaft
(See B–40 Camshaft Assembly Note)
6 Camshaft cap
7 Camshaft sprocket, Variable valve timing actuator
(L3 (with variable valve timing mechanism))
(See B–40 Camshaft Sprocket, Variable Valve
Timing Actuator (L3 (with variable valve timing
mechanism)) Assembly Note)
8 Oil control valve (OCV) (L3 (with variable valve
timing mechanism))
