2. Part Name

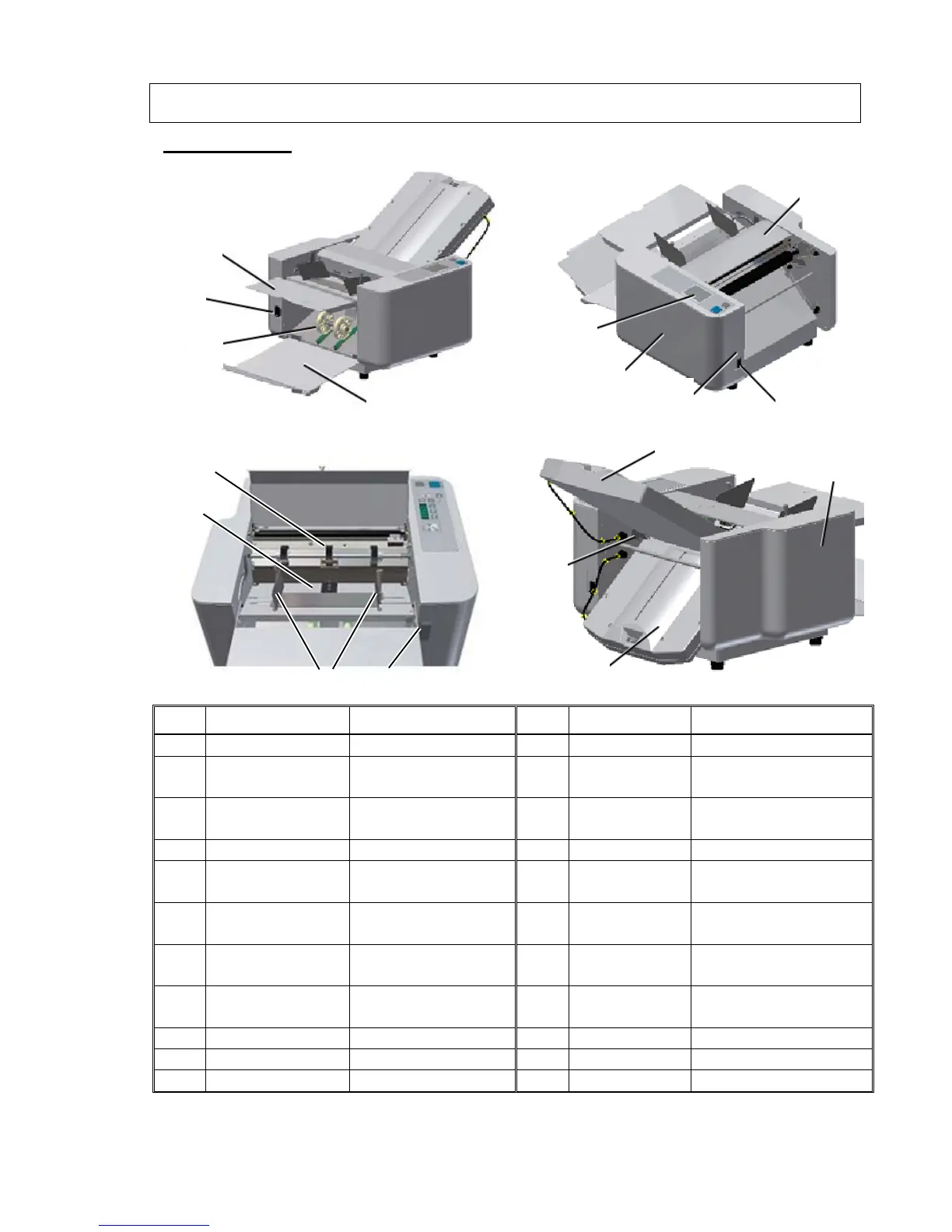

2-1 : Appearance
No. Name Function No. Name Function
1 Auxiliary table For supporting larger paper 11 Paper feed table For loading paper
2 Inlet For connecting the power
cable
12 Paper guide For prevent slant paper feeding
3 Paper ejection roller Arranges and ejects folded
paper
13 Paper feed table lever For feed table up and down.
4 Paper ejection table For stacking folded paper 14 Left side cover For protecting mechanical parts
5 Safety cover The machine stops when this
cover is opened.
15 Folding table 1 For performing the first fold
6 Control panel For setting operation of
machine
16 Folder roller setting
lever
For removing and setting the
folder roller
7 Right side cover For protecting against
mechanical/electrical parts
17 Folding table 2 For performing the second fold
8 Breaker For protecting against
overcurrent
9 Power switch For turning on/off the power
10 Paper feed roller Feeds one sheet of paper
⑩
⑪
⑬
⑫
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑭
⑮
⑯
⑰
