SMARTING User Manual – Release 11/03/2019 21

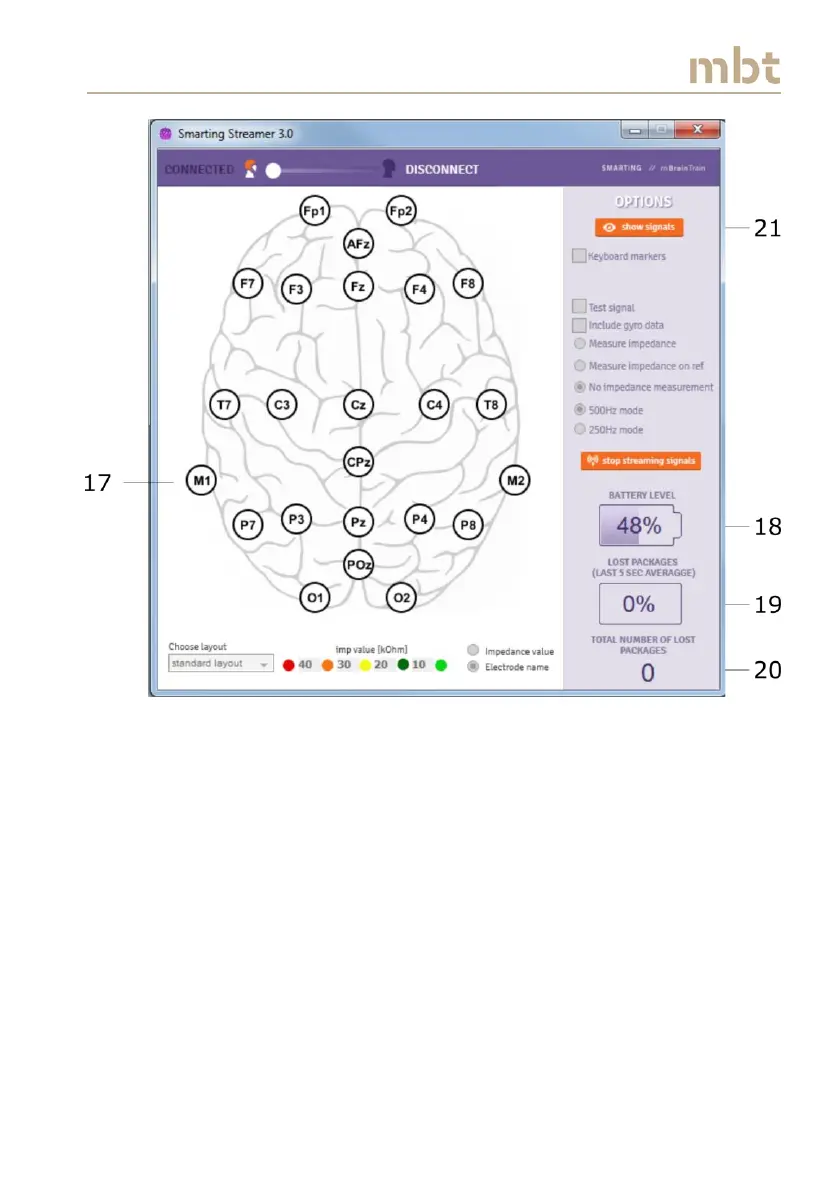

Figure 6.8 The main window interface when the impedances are disabled and the
signal streaming is set to 500 Hz sampling frequency
When visualizing the signals in the condition when impedances are switched
off, the Signal display window does not visualize the color-codded impedance
values next to the electrode names (22), Figure 6.9.
Same as in Section 6.4, the red line runs in front of the signals (23).
