SMARTING User Manual – Release 11/03/2019 71
12. Pin arrangement
The Pin Arrangement Sheet shows the connection between pin inputs and
how they are presented within the software. Please check the Pin
Arrangement Sheet from the cap supplier in order to properly connect the
cap pin inputs with the amplifier pin inputs.

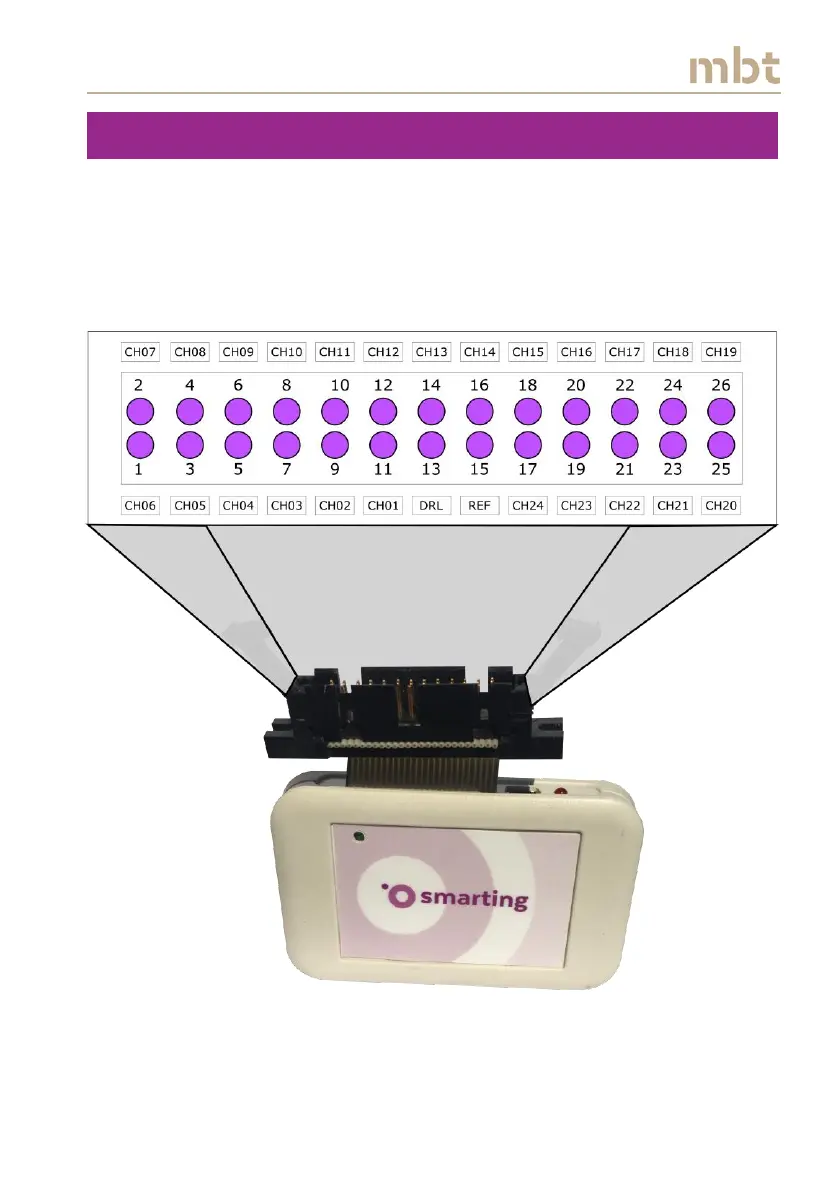

Figure 12.1 Pin arrangement
