22 SMARTING User Manual – Release 11/03/2019

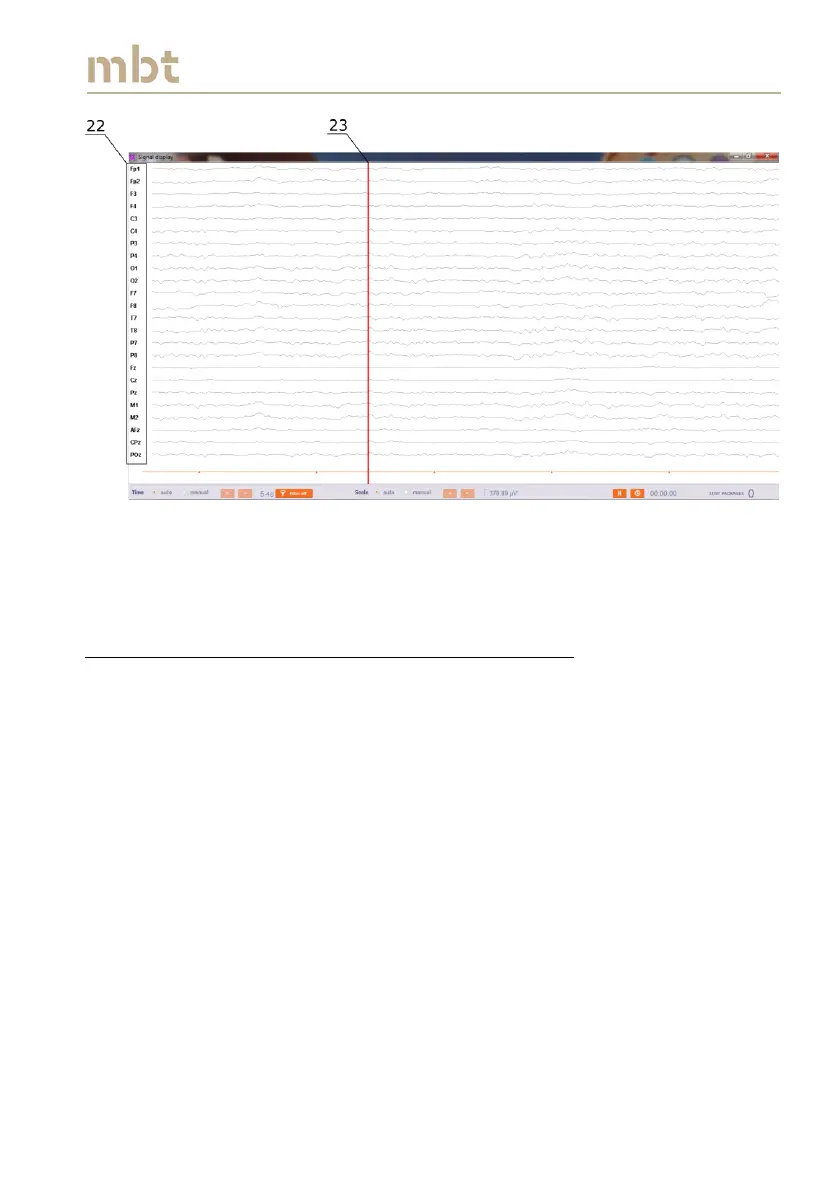

Figure 6.9 The Signal display window, in the condition when impedances are
switched off. The impedance values are no longer visualized in the left part of the
Signal display window (22). The red line runs rightwards (23) denoting the most
recent samples.
6.6 Streaming signals with 250 Hz sampling frequency
When selecting the signal streaming with 250 Hz mode (15, in Figure 6.4), the
electrode impedance measurement is not enabled, i.e. if the box 15 is
checked, the Measure impedance (11) and Measure impedance on ref (12)
options in main window are no longer available (Figure 6.10). There is also a
note on the bottom of the streamer explaining it.
All the other functionalities remain the same as in case of the 500Hz sampling
rate and when the option No impedance measurement is selected (e.g. as in
Figure 6.8). The Signal display window is also identical to the one depicted in
Figure 6.9.
