Rack mount the appliance
To install the Advanced Threat Defense Appliance on the four-post 19-inch rack, use the rack-mounting kit. You
can use the kit with most industry-standard rack cabinets.
Task
1
For each mounting rail, use the following steps.
a
At the front of the rack, position the right or left mounting rail on the corresponding side so that the
mounting bracket aligns with the rack holes.
Always load the rack from the bottom up. If you are installing multiple appliances, start with the lowest
available position.

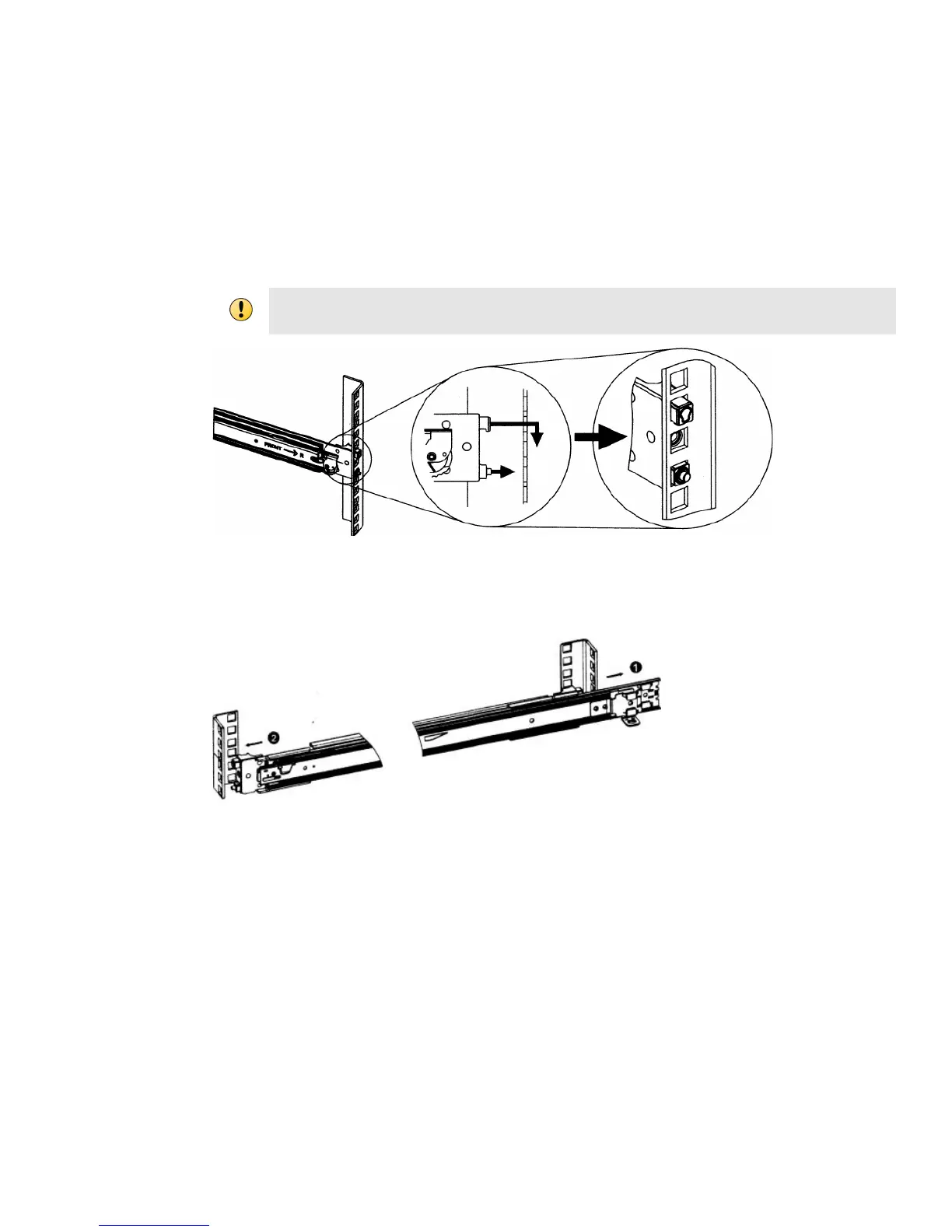

Figure 8 Slide rail installation
b
At the back of the rack, pull the back mounting-bracket (extending the mounting rail) so that it aligns with
the rack holes.
On each side of the rack, ensure that the mounting rails are the same level.
Figure 9 Install rail to rack
c
Clip the rail to the rack and secure it with the tie wraps.
