McDonald's C835 - Page 36

34
19. Press the black STANDBY button to lower
the right platen.
20. Apply g rill cleaner to the inner edges of
the right and left platens. (See Figure 78.)

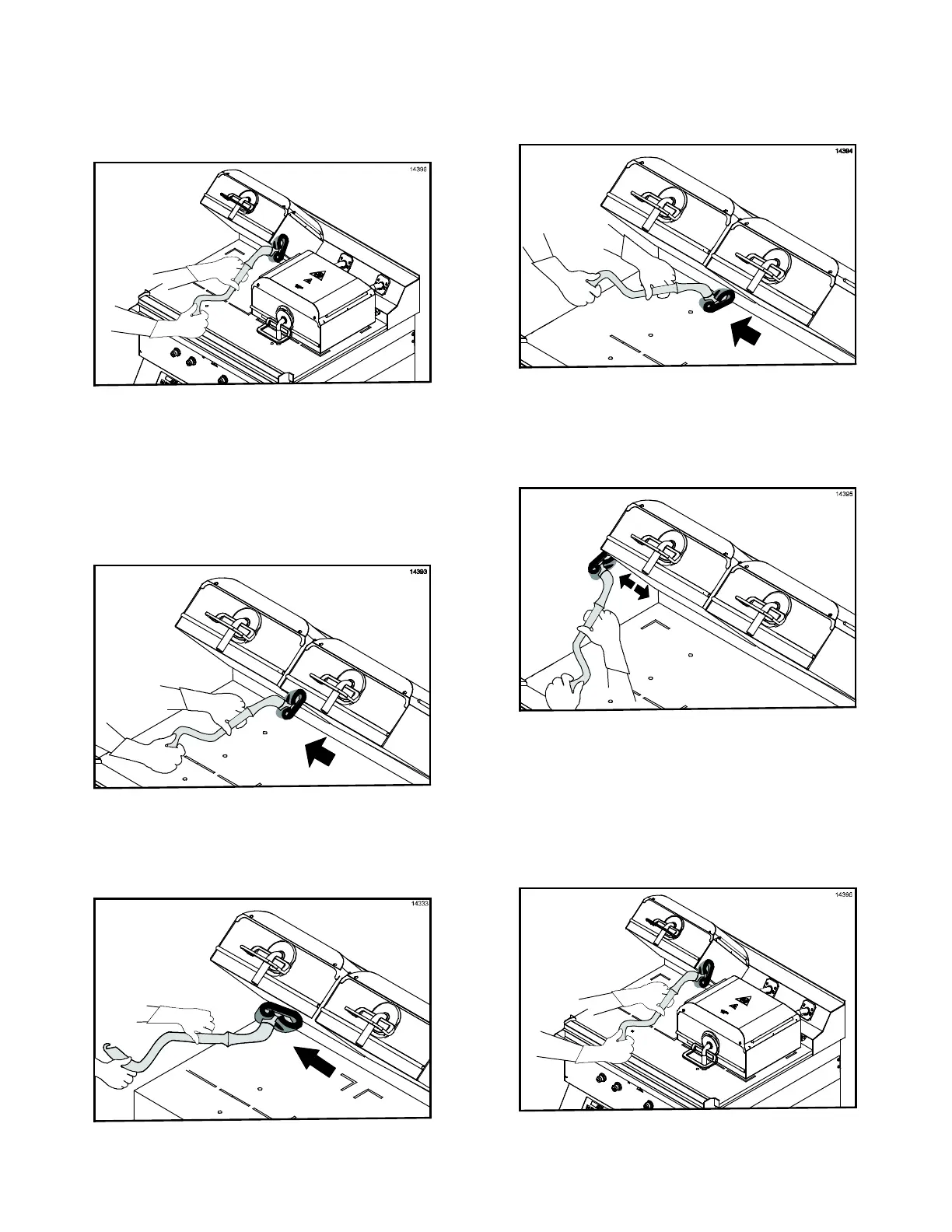

Figure 78
21. Press the red RAISE button to raise the
right platen.
22. Using the Kay Grill Cleaning Pad Holder,
scrub the front side of the platens from
the right platen to the left platen.
(See Figure 79.)
Figure 79
23. Scrub the platen surfaces, starting from
the right platen to the left platen.
(See Figure 80.)
Figure 80
24. Scrub the back side of the platens from
the right platen to the left platen.
(See Figure 81.)
Figure 81
25. Scrub the outer edges of the right and left
platens. (See Figure 82.)
Figure 82
26. Press the black STANDBY button to lower
the right platen.
27. Scrub the inner edges of the right and left
platens. (See Figure 83.)
Figure 83
