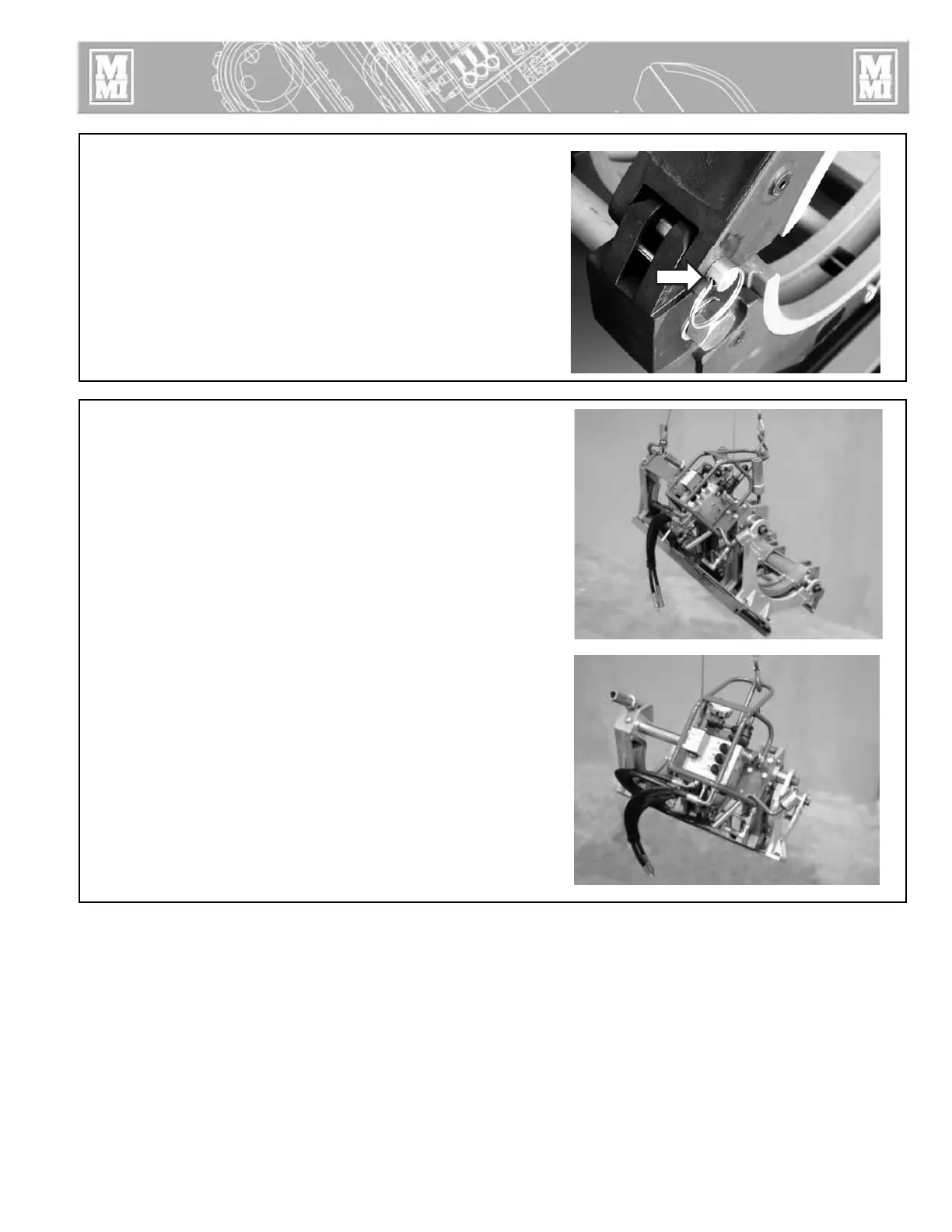

Lower 3-Jaw or 4-Jaw Carriage into Ditch
Use all 4 jaws whenever possible. The three jaw unit should be
used only when space is not available for the entire carriage,
such as fusing onto a tee, an ell or doing saddle fusion
4-Jaw
Attach lifting sling to the manifold bracket and the near side lift
point.
Lift carriage assembly and lower into ditch.
3-Jaw
Attach lifting sling to the manifold bracket.
Lift carriage assembly and lower into ditch.
TX01864-9-29-00
Special Operations - In Ditch
PH01983-11-15-00
4 - 6
Removing Top Jaws
If the carriage is going to be hand carried, or if the carriage
needs to be hoisted and slid underneath the pipe, the top jaws
need to be removed.
Loosen all clamp knobs. Take out the detent pins securing the top
jaws and remove the jaws.
TX01479-2-26-98
PH01305-3-12-98
PH01984-11-15-00
