McIntosh C2300 User Manual

17
activate Tone Bypass perform the following:
1. Rotate the Front Panel TRIM SELECT Control or press
the TRIM Push-button on the Remote Control until
“TONE BYPASS” appears on the Front Panel Alpha-
numeric Display.
2. Rotate the TRIM ADJUST Control or press the LEVEL
+ / - Push-buttons to activate the Tone Bypass or deac-
tivate the Tone Bypass. Refer to figure 19.
After approximately 3 seconds the
Alphanumeric Display returns to
indicate the Source Selection and
Volume Level.
TRIM LEVEL
The Trim Level adjustments al
-
lows for making fine adjustments
to the previously performed Trim
Level Adjustments in the Setup
Section of this Owner’s Manual on
page 11. To make fine adjustment
to the currently selected Input
Source perform the following:
1. Rotate the TRIM SELECT
Control or press the TRIM
Push-button on the Remote
Control until “LEVEL _._”
appears on the Front Panel
Alphanumeric Display. Refer
to figure 20.
2. Rotate the TRIM ADJUST
Control or press the LEVEL
+ / - Push-buttons to adjust
the volume level from -6dB to
(+)6dB. Refer to figure 20.
After approximately 3 seconds the
Alphanumeric Display returns to
the indicate the Source Selection
and Volume Level.
How to Operate the C2300
changing it, use the TRIM SELECT Control or TRIM
Push-button and select Balance.
BASS
The Intensity of the Low Frequencies in the music can be
increased or decreased by using the Trim Select and Trim
Adjust Controls. To make adjustment perform the follow
-
ing:
1. Rotate the Front Panel TRIM SELECT Control or press
the TRIM Push-button on the Remote Control until
“BASS __” appears on the Front Panel Alphanumeric
Display.
2. Rotate the TRIM ADJUST Control or press the LEVEL
+ / - Push-buttons to increase or decrease the volumne
level of the low frequencies. Refer to figure 17.
The Front Panel Display indicates the Bass changes in
steps from -12dB to (+)12dB. After approximately 3
seconds the Alphanumeric Display returns to indicate the
Source Selection and Volume Level.
TREBLE
The Intensity of the High Frequencies in the music can be
increased or decreased by using the Trim Select and Trim
Adjust Controls. To make adjustment perform the follow
-
ing:
1. Rotate the Front Panel TRIM SELECT Control or press
the TRIM Push-button on the Remote Control until
“TREBLE __” appears on the Front Panel Alphanu-
meric Display.
2. Rotate the TRIM ADJUST Control or press the LEVEL
+ / - Push-buttons to increase or decrease the volume
level of the high frequencies. Refer to figure 18.
The Front Panel Display indicates the Bass changes in
steps from -12dB to (+)12dB. After approximately 3 sec-
onds the Alphanumeric Display returns to the indicate the
Source Selection and Volume Level.
TONE ENABLE/BYPASS
With the Tone Bypass active, the Bass and Treble Settings
for the currently selected Input Source are electronicaly
bypassed. When the Tone Bypass is switched Off the
previous settings for Bass and Treble will be restored. To

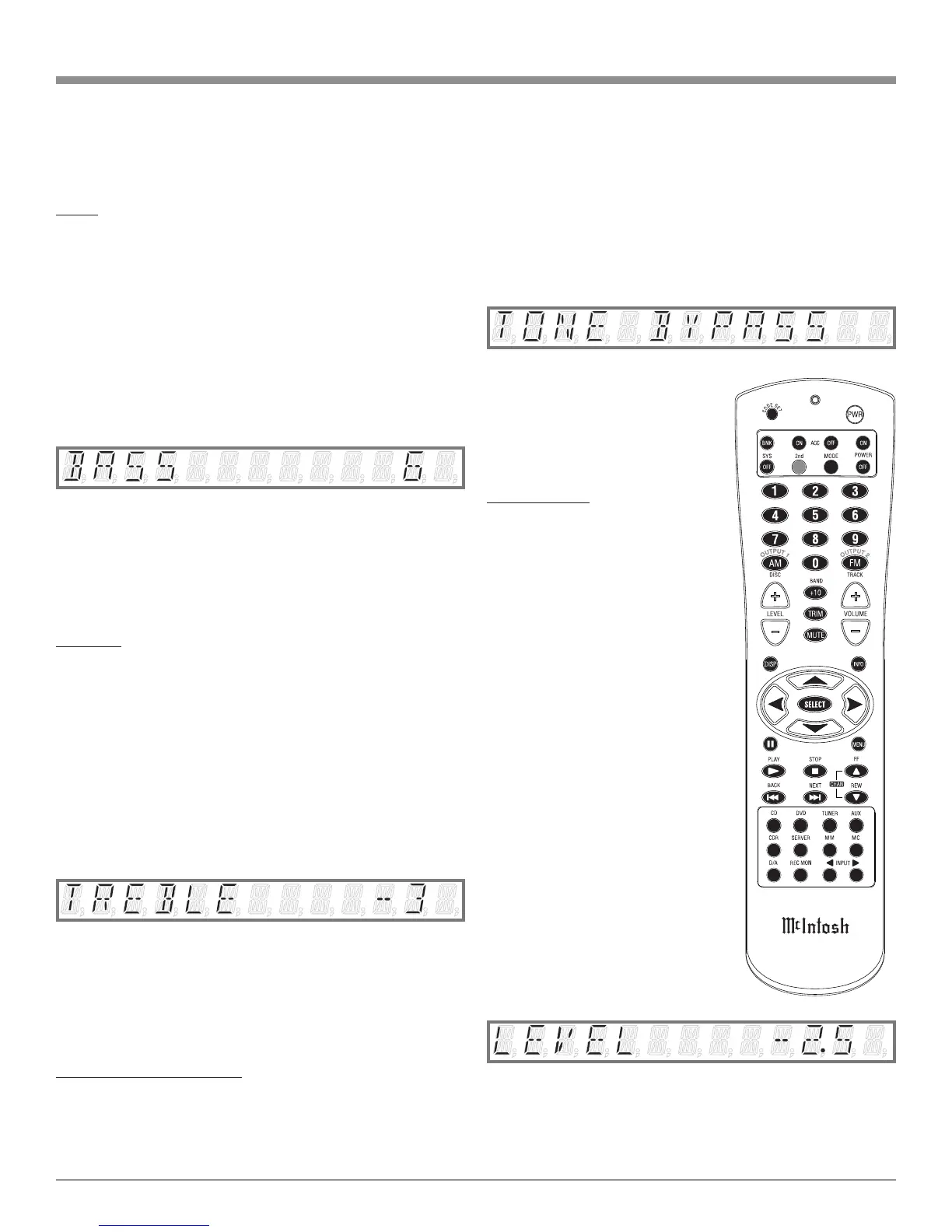

Figure 21
Figure 17
Figure 18
Figure 19
Figure 20

McIntosh C2300 Specifications

General

Output level	45 mV
Amplifier class	-
Frequency range	10 - 100000 Hz
Input sensitivity	4.5 mV
Audio output channels	2.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	93 dB
Total Harmonic Distortion (THD)	0.08 %
XLR in	Yes
XLR out	3
Headphone outputs	1
Line inputs (RCA)	6
Line outputs (RCA)	4
Headphone connectivity	6.3 mm
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Volume control	Rotary
Connectivity technology	Wired
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	75 W
Package weight	20410 g

Weight and Dimensions

Depth	457.2 mm
Width	444.5 mm
Height	193.7 mm
Weight	13.41 g
