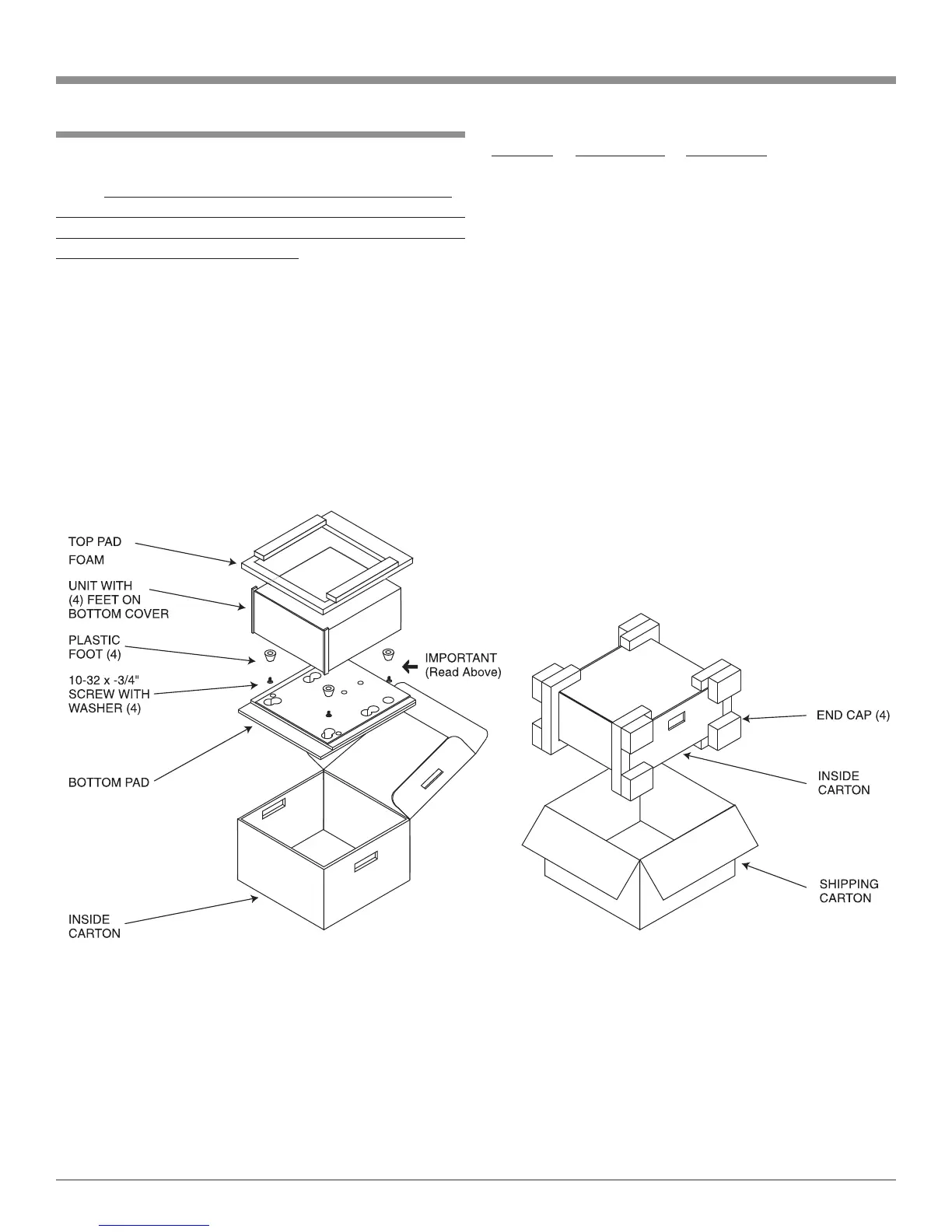

Packing Instructions
In the event it is necessary to repack the equipment for
shipment, the equipment must be packed exactly as shown
below. It is very important that the four plastic feet are at-
tached to the bottom of the equipment. This will ensure the
proper equipment location on the bottom pad. Failure to do
this will result in shipping damage.
Use the original shipping carton and interior parts only
if they are all in good serviceable condition. If a shipping
carton or any of the interior part(s) are needed, please
call or write Customer Service Department of McIntosh
Laboratory. Refer to page 4. Please see the Part List for the
correct part numbers.
Quantity Part Number Description
1 033888 Shipping carton only
4 033887 End cap
1 033697 Inside carton only
1 034414 Top pad (foam)
1 034301 Bottom pad
4 017937 Plastic foot
4 100159 #10-32 x 3/4” screw
4 404080 #10-7/16” Flat washer
Packing Instructions


McIntosh C2300 Specifications

General

Output level	45 mV
Amplifier class	-
Frequency range	10 - 100000 Hz
Input sensitivity	4.5 mV
Audio output channels	2.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	93 dB
Total Harmonic Distortion (THD)	0.08 %
XLR in	Yes
XLR out	3
Headphone outputs	1
Line inputs (RCA)	6
Line outputs (RCA)	4
Headphone connectivity	6.3 mm
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Volume control	Rotary
Connectivity technology	Wired
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	75 W
Package weight	20410 g

Weight and Dimensions

Depth	457.2 mm
Width	444.5 mm
Height	193.7 mm
Weight	13.41 g
