19
How to Operate the C2300, con’t
Output 1 and 2
Press the Front Panel OUTPUT 1 / OUTPUT 2 Push-but-
ton or by using the Remote Control and pressing the 2nd
Push-button followed by the OUTPUT 1 / OUTPUT 2
Push-button to send audio to separate Power Amplifiers
connected to the rear panel OUTPUTS 1 or 2 Jacks. It also
activates the POWER CONTROL OUTPUT 1 /OUTPUT
2 Jacks on the rear panel of the C2300. To stop the Audio
and Power Control Signals from going to the separate
Power Amplifiers press the same Push-button(s) a second
time.
Headphones Jack
Connect a pair of dynamic headphones with a 1/4”
(0.635cm) stereo phone type plug to the Headphones Jack
for private listening.

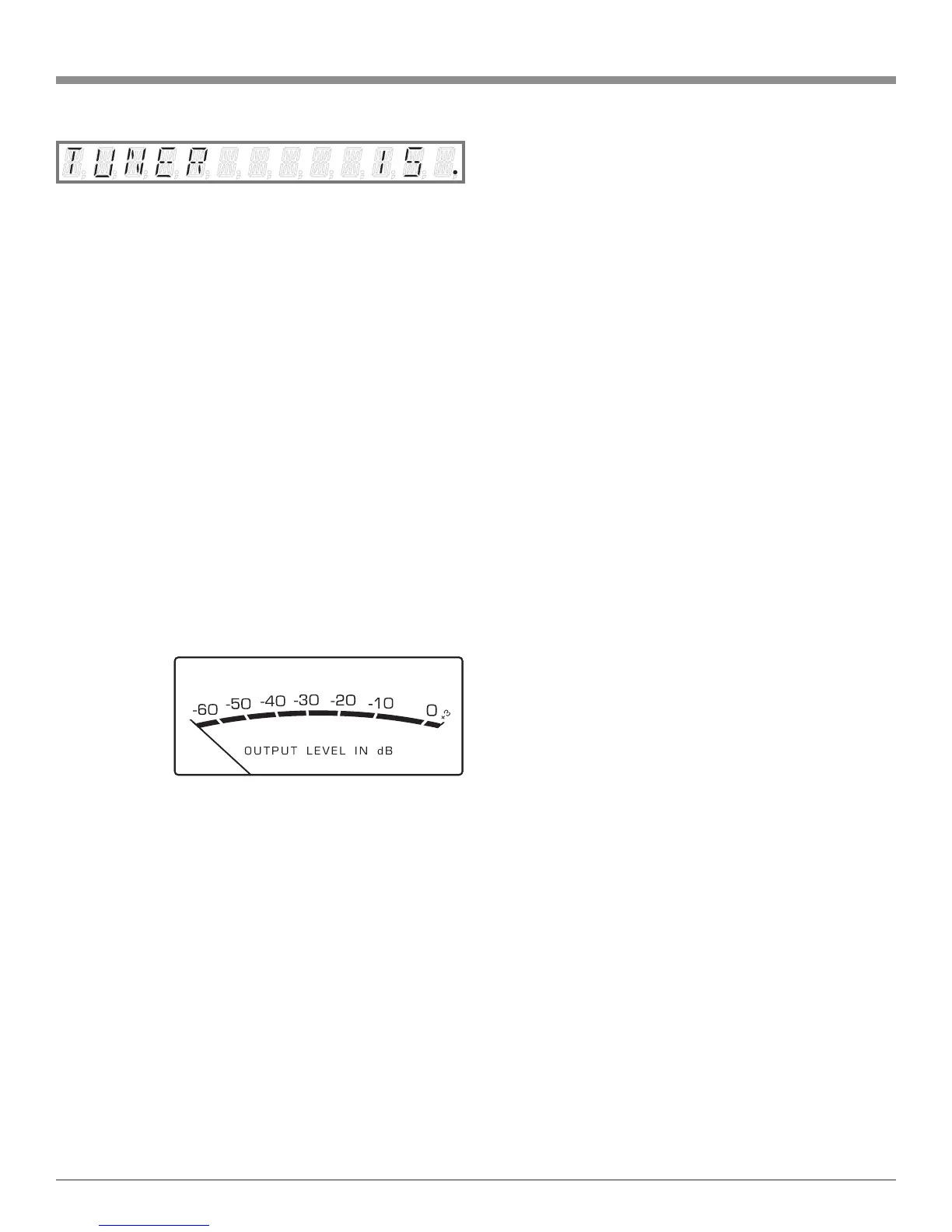

Output Meters
The C2300’s Output Meters indicate the Output Voltage
available at the MAIN and OUTPUT 1 & 2 Jacks to drive
Power Amplifiers. Refer to figure 27. The Meters are cali
-
brated in dB
(decibels) and
respond to all
the peaks con-
tained in the
musical infor-
mation. They
indicate to an
accuracy of at least 95% of a single cycle from a 2000Hz
tone burst.
The Meter Electronic Circuitry “Time Stretches” the Meter
Drive Signal so the Meter Pointer pauses just long enough
for the human eye to see it and is followed by a moderate
decay rate.
How To Make A Recording
1. Select the Source Input Signal you wish to record.
2. Adjust the record level using the recorder volume con
-
trol and proceed with the recording process.
3. To listen to the playback of the program source just
recorded, press the RECord MONITOR Push-button.
Note: The C2300 SRVR (REC) OUTPUTS are not affected
by the VOLUME or BALANCE controls.
Figure 26
Reset of Microprocessors
In the unlikely event the controls of the C2300 stop func-
tioning, the microprocessors can be reset by performing
the following:
1. Press and hold in the STANDBY/ON Push-button for
approximately five seconds and then release the push-
button.
2. Press the STANDBY/ON Push-button, the C2300 will
resume normal operation.
Note: This can be performed with the C2300 On or in the
Standby Mode.
Figure 27
