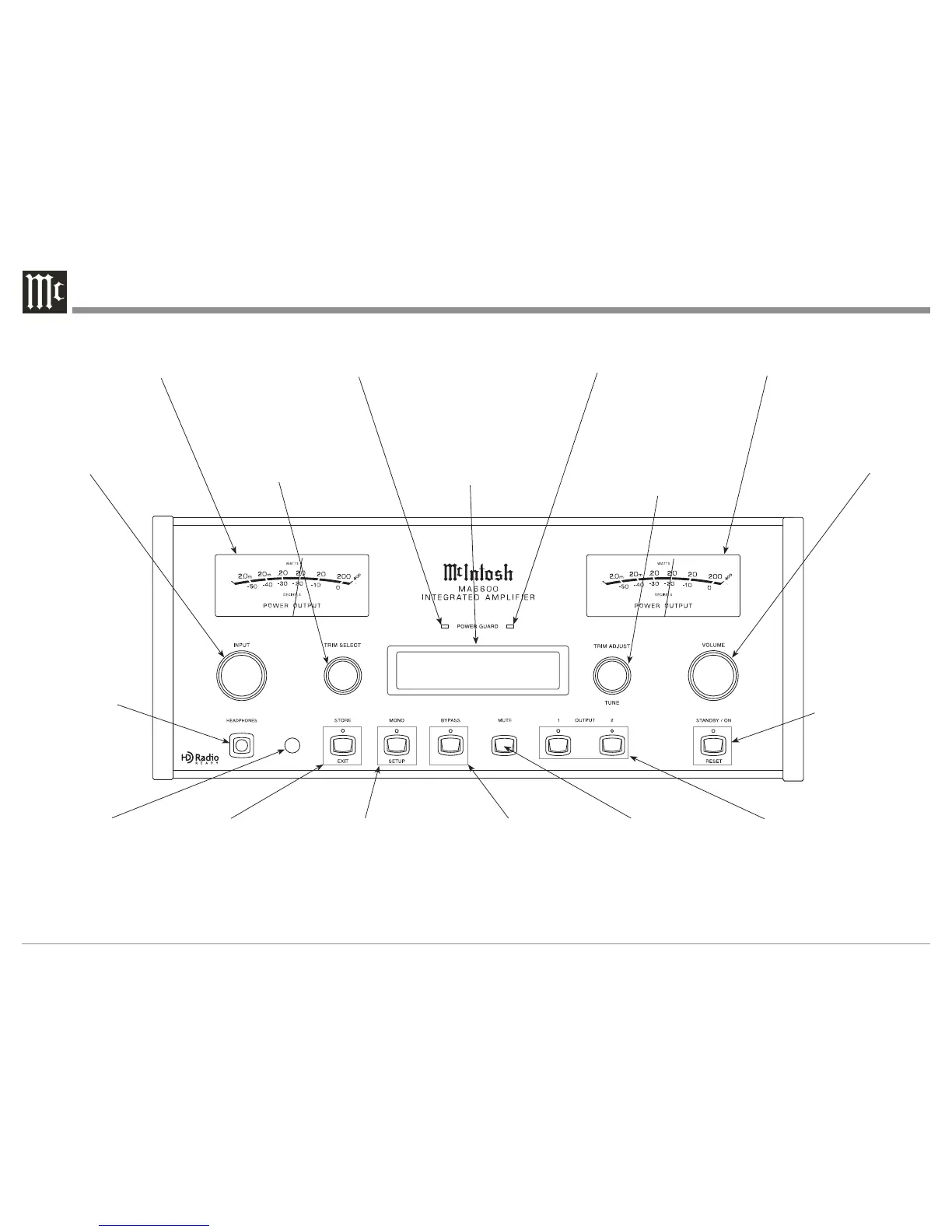

IR Sensor receives
commands from a
Remote Control
STANDBY/ON
Push-button with
indicator switches
the MA6600 ON or
OFF (Standby) and
resets the micropro-
cessors
VOLUME Control
allows adjustment
of the listening level
for both channels
Connection for low
impedance dynamic
headphones, for
private listening
MUTE Push-button
mutes the audio from
the Loudspeakers and
Headphones
MONO/SETUP Push-button
with indicator, combines the
Left and Right Channel signals
for Monophonic Sound, used to
enter the Setup Mode and step
through the Setup Menu
STORE/EXIT
Push-button with
indicator, used
to store various
selections and set-
tings into memory
and is used to exit
the Setup Mode
INPUT Control al-
lows the selection of
various sources for
listening and record-
ing
Meter indicates the
Right Channel Out-
put of the amplifier
LED indicates when the
Left Channel Amplifier
POWER GUARD circuit
activates
Meter indicates the
Left Channel Out-
put of the amplifier
LED indicates when the
Right Channel Amplifier
POWER GUARD circuit
activates
OUTPUT 1 and 2
Push-buttons with
indicators, turn the
Loudspeakers and
Preamplifier Output 2
On or Off
INFORMATION DISPLAY
indicates the Sources, Vol-
ume, other Audio Settings,
Operational Functions and
Setup Mode Settings
Tone BYPASS Push-
button with indicator,
when activated the
audio signal bypasses
the Tone Controls
TRIM SELECT allows
selection of various types
of audio settings. It is also
used in the setup mode
for various functions
TRIM ADJUST/TUNE al-
lows adjustment of various
types of audio settings and
tune in radio stations. It is
also used in the setup mode
for various functions
