7

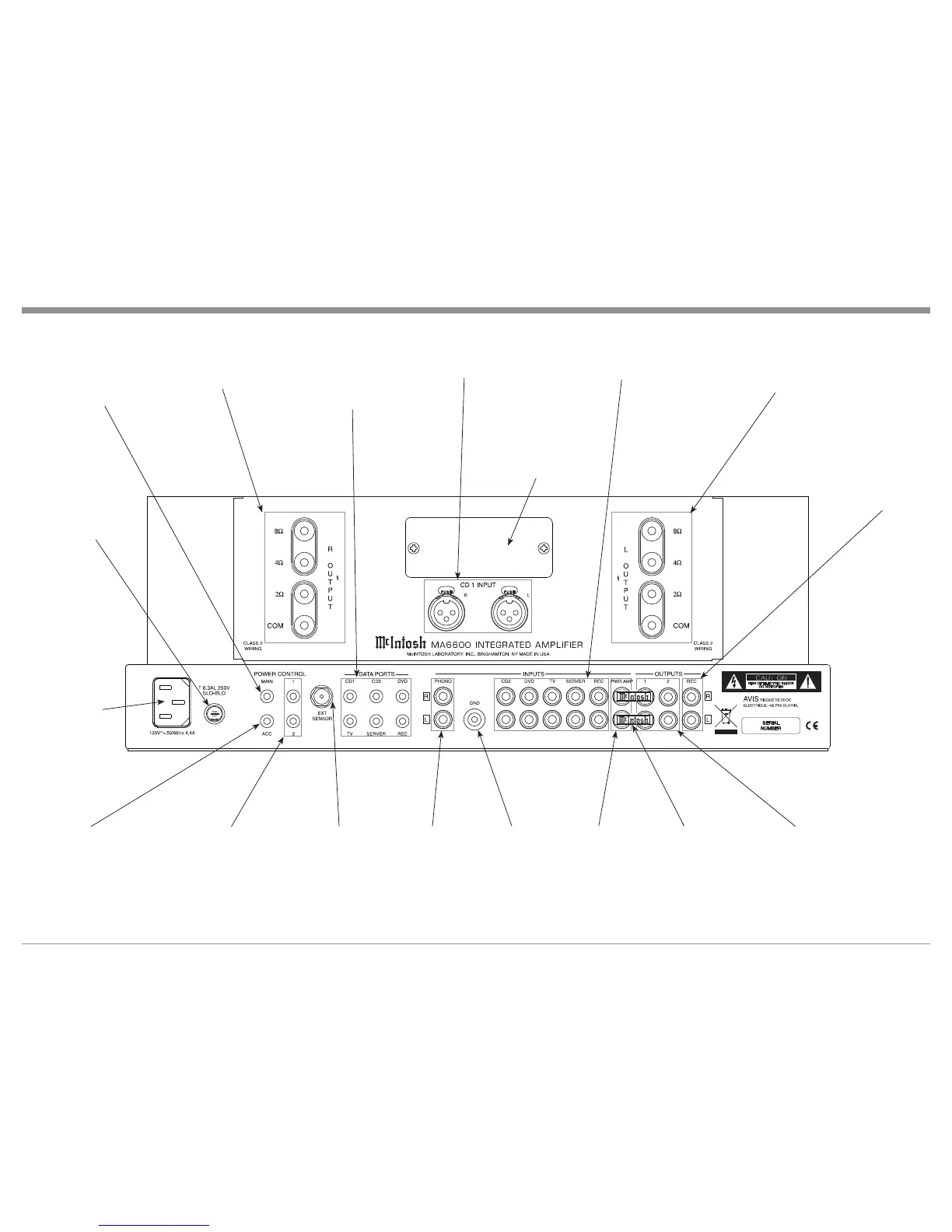

Rear Panel Connections
POWER CONTROL ACC
Output sends a turn-On,
turn-Off signal to a McIn-
tosh Component when using
the MA6600 Remote Control
ACC On/Off Push-buttons
PWR AMP input
accepts signals
from the internal
Preamplifier or a
separate external
Preamplifier
JUMPER PLUGS
connect the Pream-
plifier OUTPUT 1
Jacks to the PWR
AMP IN Jacks and
are needed for nor-
mal operation
GND
terminal
accepts
a ground
wire from a
turntable
Main Fuse holder,
refer to information
on the back panel
of your MA6600 to
determine the cor-
rect fuse size and
rating
PHONO accepts
signals from a
Moving Magnet
phono cartridge
OUTPUT 1 sends signals to the
internal Power Amplifier or a
separate external Power Ampli-
fier; OUTPUT 2 sends signals
to a separate external Power
Amplifier input
POWER CONTROL
1 and 2 Output sends
a turn-on signal to a
McIntosh Component
when the Outputs 1
and 2 Push-buttons
are used
EXT SENSOR
connector permits
the connection
of a McIntosh IR
Sensor for remote
operation
Connect the
MA6600 power
cord to a live AC
outlet. Refer to
information on
the back panel
of your MA6600
to determine the
correct voltage
for your unit
DATA PORTS send
signals to McIntosh
Source Components
to allow control with
the MA6600 Remote
Control
CD2, DVD, TV, SERVER
and REC INPUTS accept
high level program source
signals
RECord OUTPUT
sends signals to
the input of a
recording device
RIGHT OUTPUT
connections for a
2, 4 or 8 ohm
loudspeaker
CD1 Balanced INPUTS
accept high level program
source signals
POWER CONTROL
MAIN Output sends a
turn-on signal to a McIn-
tosh Component when the
MA6600 is turned On
LEFT OUTPUT
connections for a
2, 4 or 8 ohm
loudspeaker
Reserved for the
installation of
optional Tuner
Module

Other manuals for McIntosh MA6600

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the McIntosh MA6600 and is the answer not in the manual?

McIntosh MA6600 Specifications

General IconGeneral
Amplifier class-
Frequency range20 - 20000 Hz
Output impedance8 Ω
Audio output channels2.0 channels
Peak power per channel200 W
Signal-to-Noise Ratio (SNR)115 dB
Total Harmonic Distortion (THD)0.005 %
XLR inYes
Audio (L/R) out8
Line inputs (RCA)14
Line outputs (RCA)6
PurposeHome
Product colorBlack
Connectivity technologyWired
Maximum current4.4 A
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Power consumption (standby)1 W
Package weight42300 g
Weight and Dimensions IconWeight and Dimensions
Depth558.8 mm
Width444.5 mm
Height193.7 mm
Weight34100 g
