McIntosh MA6600 User Manual

18

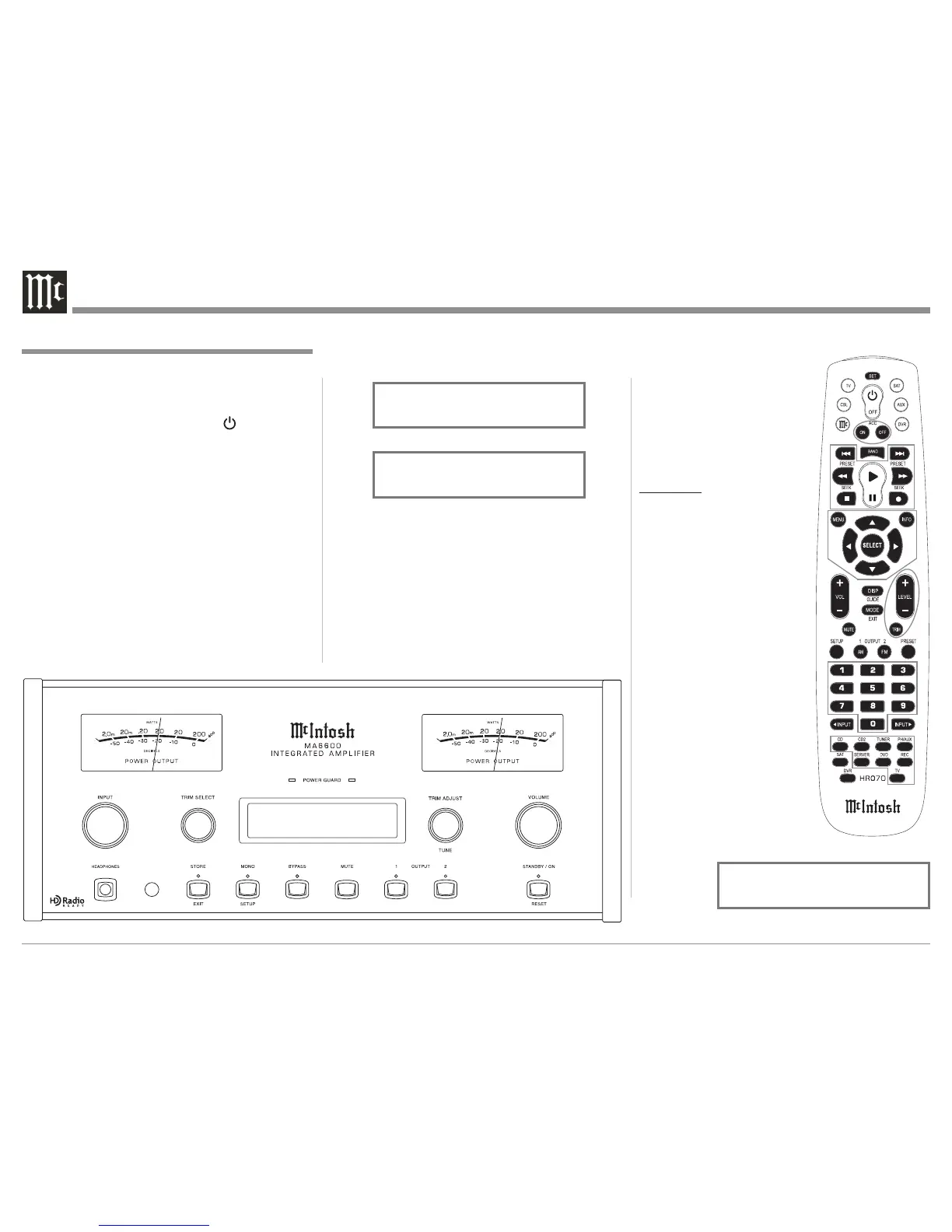

Front Panel or Remote Control. Refer to figures 15, 16
and 17.
Volume Control
Rotate the Front Panel VOLUME Control or use the
VOLUME Upp or Downq Push-buttons on the Re-
mote Control for the desired listening level. Refer to
figures 15, 16 and 17.
Trim Functions
The MA6600 has six different Trim Selections with
Adjustments. The Trim Selections include Balance,
Bass, Treble, Tone Bypass, Input Level Matching and
Power On
The Red LED above the STANDBY/ON Push-button
lights to indicate the MA6600 is in Standby mode. To
Switch ON the MA6600, press the STANDBY/ON
Push-button on the Front Panel or the (Power On)
Push-button on the Remote Control. The MA6600
will go through a brief startup initialization with the
Front Panel Information Display indicating the last
used source and volume setting, this is followed by
the volume setting indication starting at zero and then
increasing to the last used volume setting. Refer to
figures 15, 17 and 18.
Note: Wait at least five seconds after making any
operational changes to the MA6600 before
switching Power Off in order to retain the
changes in memory.
Source Selection
Rotate the INPUT Control to select the desired source
or press the appropriate push-button switch on the
Meter Illumination. The Trim
Settings are stored in memory
independently for each Input
Source Selected, the only ex-
ception being Meter Illumina-
tion setting of On or Off, which
is the same for all inputs.
BALANCE
Listening balance varies with
different program sources,
room acoustics and listening
positions relative to the Loud-
speakers. Use the Balance
(Trim Function) as needed to
achieve approximately equal
listening volume levels in each
Loudspeaker. To adjust the Bal-
ance perform the following:
1. Rotate the Front Panel
TRIM SELECT Control or
press the TRIM Push-button
on the Remote Control until
“BALANCE 0 dB” appears
on the Front Panel Informa-
tion Display. Figure 19.
2. Rotate the TRIM ADJUST
Control or press the LEVEL
+ / - Push-buttons to em-
phasize the Right Channel
(refer to figure 20) or the
Left Channel (refer to figure
21).
How to Operate the MA6600
SOURCE: CD1
15%
Figure 17
Figure 15
SOURCE: CD1
15%
Figure 16
SOURCE: SERVER
30%
Figure 18
Figure 19
BALANCE 0 dB
||

McIntosh MA6600 Specifications

General

Amplifier class	-
Frequency range	20 - 20000 Hz
Output impedance	8 Ω
Audio output channels	2.0 channels
Peak power per channel	200 W
Signal-to-Noise Ratio (SNR)	115 dB
Total Harmonic Distortion (THD)	0.005 %
XLR in	Yes
Audio (L/R) out	8
Line inputs (RCA)	14
Line outputs (RCA)	6
Purpose	Home
Product color	Black
Connectivity technology	Wired
Maximum current	4.4 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Package weight	42300 g

Weight and Dimensions

Depth	558.8 mm
Width	444.5 mm
Height	193.7 mm
Weight	34100 g
