Installation
Installation
The MA9000 can be placed upright on a table or
shelf, standing on its four feet. It also can be custom
installed in a piece of furniture or cabinet of your
choice. The four feet may be removed from the bottom
of the MA9000 when it is custom installed as out-
lined below. The four feet together with the mounting
screws should be retained for possible future use if the
MA9000 is removed from the custom installation and
used free standing. The required panel cutout, ventila-
tion cutout and unit dimensions are shown.
Always provide adequate ventilation for your
MA9000. Cool operation ensures the longest possible
operating life for any electronic instrument. Do not
install the MA9000 directly above a heat generat-
ing component such as a high powered amplifier. If
all the components are installed in a single cabinet, a
quiet running ventilation fan can be a definite asset in
maintaining all the system components at the coolest
possible operating temperature.
A custom cabinet installation should provide the
following minimum spacing dimensions for cool
operation.
Allow at least 6 inches (15.24cm) above the top, 2
inches (5.08cm) below the bottom and 2 inches (5.1cm)
on each side of the Integrated Amplifier, so that air-
flow is not obstructed. Allow 20 inches (50.8cm) depth
behind the front panel. Allow 1-7/6 inch (3.66cm) in
front of the mounting panel for knob clearance. Be
sure to cut out a ventilation hole in the mounting shelf
according to the dimensions in the drawing.
USB 30%
DSD256
8-5/16"
21.1cm
17-1/16"
43.3cm

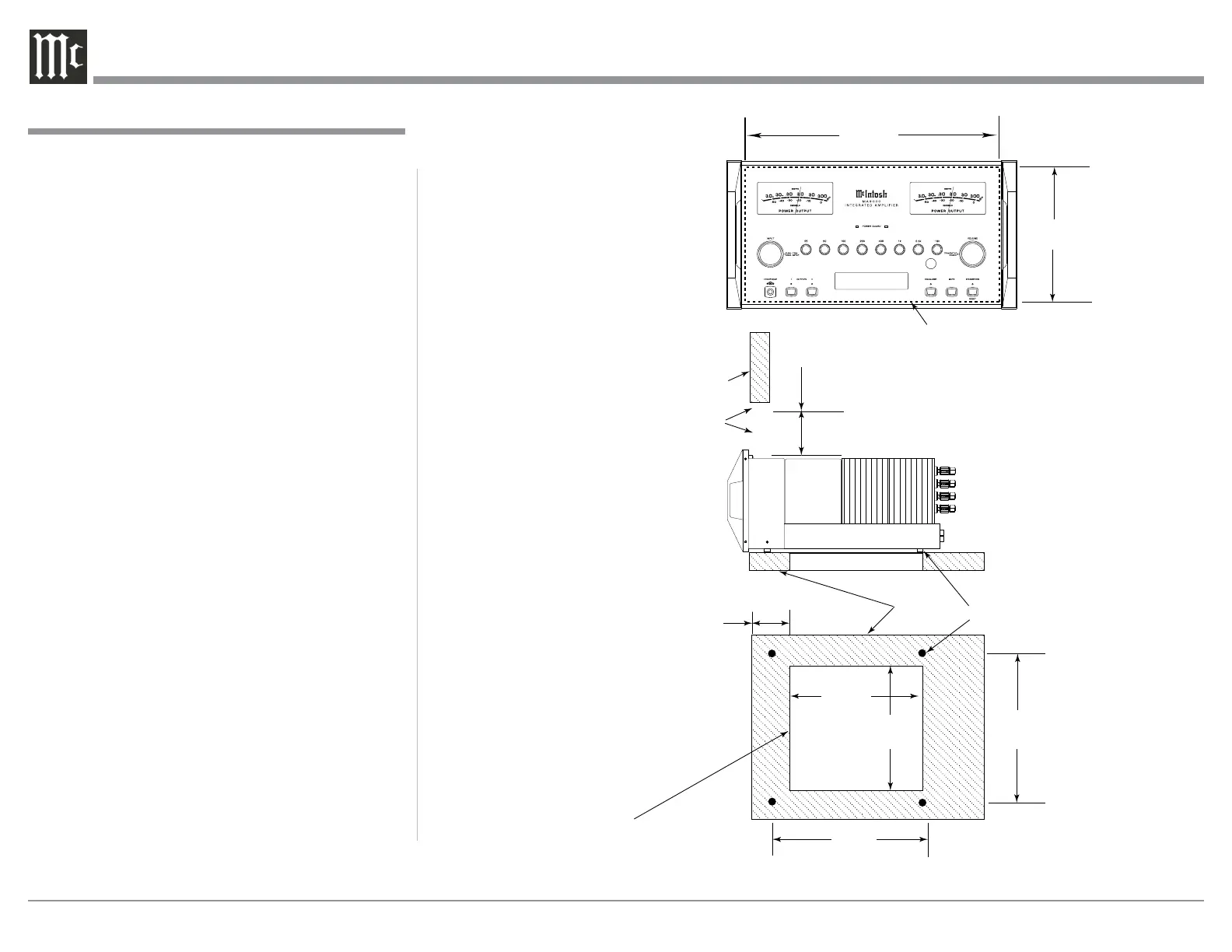

Cutout Opening for Custom Mounting
MA9000 Front Panel
Custom Cabinet Cutout
Cutout
Opening
for
Ventilation
Cutout Opening for Ventilation
Support
Shelf
Cabinet
Front
Panel
Chassis
Spacers
MA9000 Side View
in Custom Cabinet
MA9000 Bottom View
in Custom Cabinet
9-1/2"
24.1cm
6"
15.2cm
Opening
for Ventilation
16"
40.6cm
11-1/2"
29.2cm
Note: Center the cutout Horizontally
on the unit. For purposes of
clarity, the above illustration
is not drawn to scale.
10"
25.4cm
4-5/8"
11.8cm

McIntosh MA9000 Specifications

General

Power Output per Channel	300 Watts
Total Harmonic Distortion	0.005%
Number of Channels	2
Input Impedance (Balanced)	20k ohms
Input Impedance (Unbalanced)	20k ohms
Damping Factor	>40
Maximum Output Voltage (Balanced)	16V RMS
Maximum Output Voltage (Unbalanced)	8V RMS
Dynamic Headroom	2.0dB
Connectivity - Unbalanced Input	6
Connectivity - Phono Input MM	1
Connectivity - Phono Input MC	1
Connectivity - Digital USB Input	1
Connectivity - Digital Coaxial Input	2
Connectivity - Digital Optical Input	2
Connectivity - Digital MCT (DIN) Input	1
Connectivity - Subwoofer Output	No
Home Theater PassThru	Yes
Tone Controls	Bass and Treble
Tone Bypass	Yes
RS232 Control Input	Yes
Rear Panel Data Port	Yes
Rear Panel IR Sensor Input	Yes
Frequency Response	+0, -0.5dB from 20Hz to 20kHz
Phono Input Impedance	47k Ohms (MM), 100 Ohms (MC)
Voltage Gain (Phono)	60dB (MM), 60dB (MC)
Connectivity - Balanced Input	Yes
Connectivity - Variable Output	1 Balanced, 1 Unbalanced
Digital Processing	32-bit
Dimensions (W x H x D)	17.5 x 9.75 x 22 inches
