McIntosh MA9000 User Manual

7

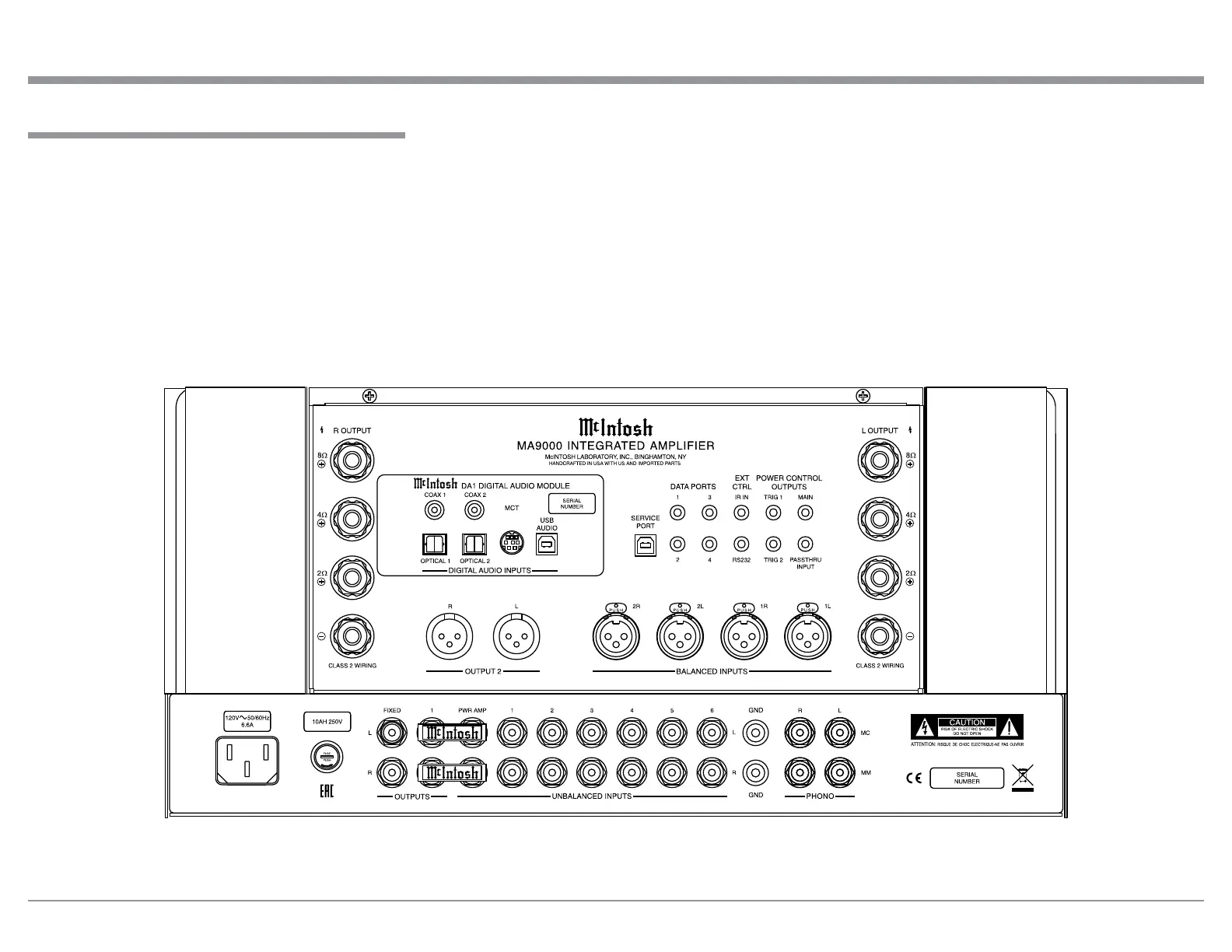

MA9000 Rear Panel Connections
The identification of Rear Panel Connections for the
MA9000 Integrated Amplifier is located on a separate
folded sheet contained in the Owner’s Manual Packet.
Refer to separate sheet “Mc1A” for the Rear Panel
Connections.
Rear Panel Connections
MA9000 Integrated Amplifer

McIntosh MA9000 Specifications

General

Power Output per Channel	300 Watts
Total Harmonic Distortion	0.005%
Number of Channels	2
Input Impedance (Balanced)	20k ohms
Input Impedance (Unbalanced)	20k ohms
Damping Factor	>40
Maximum Output Voltage (Balanced)	16V RMS
Maximum Output Voltage (Unbalanced)	8V RMS
Dynamic Headroom	2.0dB
Connectivity - Unbalanced Input	6
Connectivity - Phono Input MM	1
Connectivity - Phono Input MC	1
Connectivity - Digital USB Input	1
Connectivity - Digital Coaxial Input	2
Connectivity - Digital Optical Input	2
Connectivity - Digital MCT (DIN) Input	1
Connectivity - Subwoofer Output	No
Home Theater PassThru	Yes
Tone Controls	Bass and Treble
Tone Bypass	Yes
RS232 Control Input	Yes
Rear Panel Data Port	Yes
Rear Panel IR Sensor Input	Yes
Frequency Response	+0, -0.5dB from 20Hz to 20kHz
Phono Input Impedance	47k Ohms (MM), 100 Ohms (MC)
Voltage Gain (Phono)	60dB (MM), 60dB (MC)
Connectivity - Balanced Input	Yes
Connectivity - Variable Output	1 Balanced, 1 Unbalanced
Digital Processing	32-bit
Dimensions (W x H x D)	17.5 x 9.75 x 22 inches
