McIntosh MC 7300 User Manual

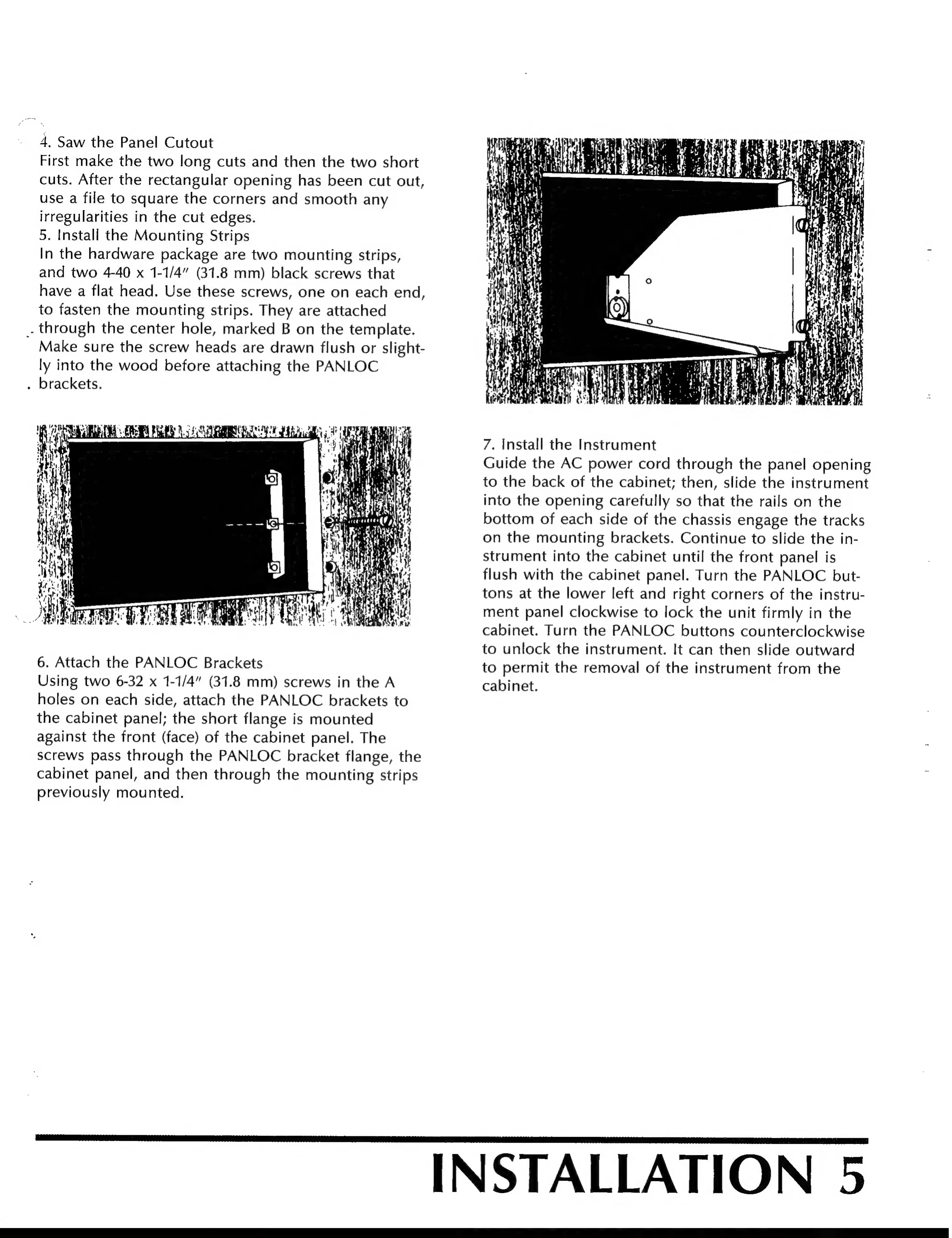

4. Saw the Panel Cutout
First
make
the
two
long
cuts
and
then
the
two
short
cuts.
After
the
rectangular
opening
has
been
cut
out,
use
a
file
to
square
the
corners
and
smooth
any
irregularities
in
the
cut
edges.
5.
Install
the
Mounting
Strips
In
the
hardware
package
are
two
mounting
strips,
and
two
4-40
x
1-1/4"
(31.8
mm)
black
screws
that
have
a
flat
head.
Use
these
screws,
one
on
each
end,
to
fasten
the
mounting
strips.
They
are
attached
..
through
the
center
hole,
marked
В
on
the
template.
Make
sure
the
screw
heads
are
drawn
flush
or
slight-
ly
into
the
wood
before
attaching
the
PANLOC
. brackets.
6.
Attach
the
PANLOC
Brackets
Using
two
6-32
x
1-1/4"
(31.8
mm)
screws
in
the
A
holes
on
each
side,
attach
the
PANLOC
brackets
to
the
cabinet
panel;
the
short
flange
is
mounted
against
the
front
(face)
of
the
cabinet
panel.
The
screws
pass
through
the
PANLOC
bracket
flange,
the
cabinet
panel,
and
then
through
the
mounting
strips
previously
mounted.
7. install the Instrument
Guide
the
AC
power
cord
through
the
panel
opening
to
the
back
of
the
cabinet;
then,
slide
the
instrument
into
the
opening
carefully
so
that
the
rails
on
the
bottom
of
each
side
of
the
chassis
engage
the
tracks
on
the
mounting
brackets.
Continue
to
slide
the
in-
strument
into
the
cabinet
until
the
front
panel
is
flush
with
the
cabinet
panel.
Turn
the
PANLOC
but-
tons
at
the
lower
left
and
right
corners
of
the
instru-
ment
panel
clockwise
to
lock
the
unit
firmly
in
the
cabinet.
Turn
the
PANLOC
buttons
counterclockwise
to
unlock
the
instrument.
It
can
then
slide
outward
to
permit
the
removal
of
the
instrument
from
the
cabinet.
INSTALLATION
5
