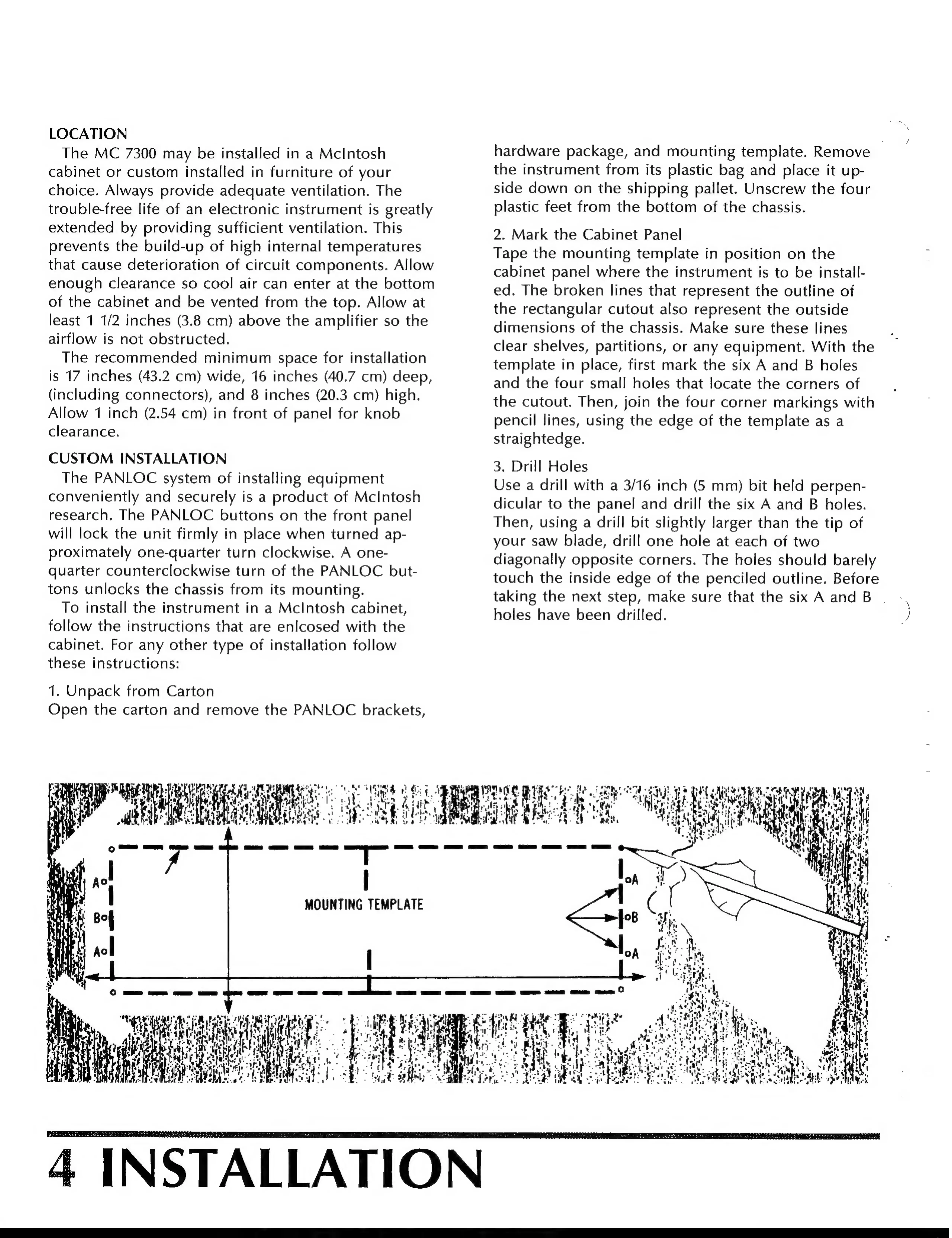

LOCATION
The
MC
7300
may
be
installed
in
a
McIntosh
cabinet
or
custom
installed
in
furniture
of
your
choice.
Always
provide
adequate
ventilation.
The
trouble-free
life
of
an
electronic
instrument
is
greatly
extended
by
providing
sufficient
ventilation.
This
prevents
the
build-up
of
high
internal
temperatures
that
cause
deterioration
of
circuit
components.
Allow
enough
clearance
so
cool
air
can
enter
at
the
bottom
of
the
cabinet
and
be
vented
from
the
top.
Allow
at
least
1
1/2
inches
(3.8
cm)
above
the
amplifier
so
the
airflow
is
not
obstructed.
The
recommended
minimum
space
for
installation
is
17
inches
(43.2
cm)
wide,
16
inches
(40.7
cm)
deep,
(including
connectors),
and
8
inches
(20.3
cm)
high.
Allow
1
inch
(2.54
cm)
in
front
of
panel
for
knob
clearance.
CUSTOM
INSTALLATION
The
PANLOC
system
of
installing
equipment
conveniently
and
securely
is
a
product
of
McIntosh
research.
The
PANLOC
buttons
on
the
front
panel
will
lock
the
unit
firmly
in
place
when
turned
ap-
proximately
one-quarter
turn
clockwise.
A
one-
quarter
counterclockwise
turn
of
the
PANLOC
but-
tons
unlocks
the
chassis
from
its
mounting.
To
install
the
instrument
in
a
McIntosh
cabinet,
follow
the
instructions
that
are
enlcosed
with
the
cabinet.
For
any
other
type
of
installation
follow
these
instructions:
1.
Unpack
from
Carton
Open
the
carton
and
remove
the
PANLOC
brackets,
hardware
package,
and
mounting
template.
Remove
-
the
instrument
from
its
plastic
bag
and
place
it
up-
side
down
on
the
shipping
pallet.
Unscrew
the
four
plastic
feet
from
the
bottom
of
the
chassis.
2.
Mark
the
Cabinet
Panel
Tape
the
mounting
template
in
position
on
the
cabinet
panel
where
the
instrument
is
to
be
install-
ed.
The
broken
lines
that
represent
the
outline
of
the
rectangular
cutout
also
represent
the
outside
dimensions
of
the
chassis.
Make
sure
these
lines
clear
shelves,
partitions,
or
any
equipment.
With
the
template
in
place,
first
mark
the
six
A
and
B
holes
and
the
four
small
holes
that
locate
the
corners
of
the
cutout.
Then,
join
the
four
corner
markings
with
pencil
lines,
using
the
edge
of
the
template
as
a
straightedge.
3.
Drill
Holes
Use
a
drill
with
a
3/16
inch
(5
mm)
bit
held
perpen-
dicular
to
the
panel
and
drill
the
six
A
and
B
holes.
Then,
using
a
drill
bit
slightly
larger
than
the
tip
of
your
saw
blade,
drill
one
hole
at
each
of
two
diagonally
opposite
corners.
The
holes
should
barely
touch
the
inside
edge
of
the
penciled
outline.
Before
taking
the
next
step,
make
sure
that
the
six
A
and
B
.
holes
have
been
drilled.
