Technical Description
MC2301 Design
The design philosophy incorporated in the MC2301 in-
volved several different techniques, all based on sound sci-
entific logic. Every stage of voltage amplification must be
as linear as possible prior to the use of negative feedback.
McIntosh engineers know how to properly design negative
feedback circuits so they contribute to the low distortion
performance expected from a McIntosh amplifier. Refer to

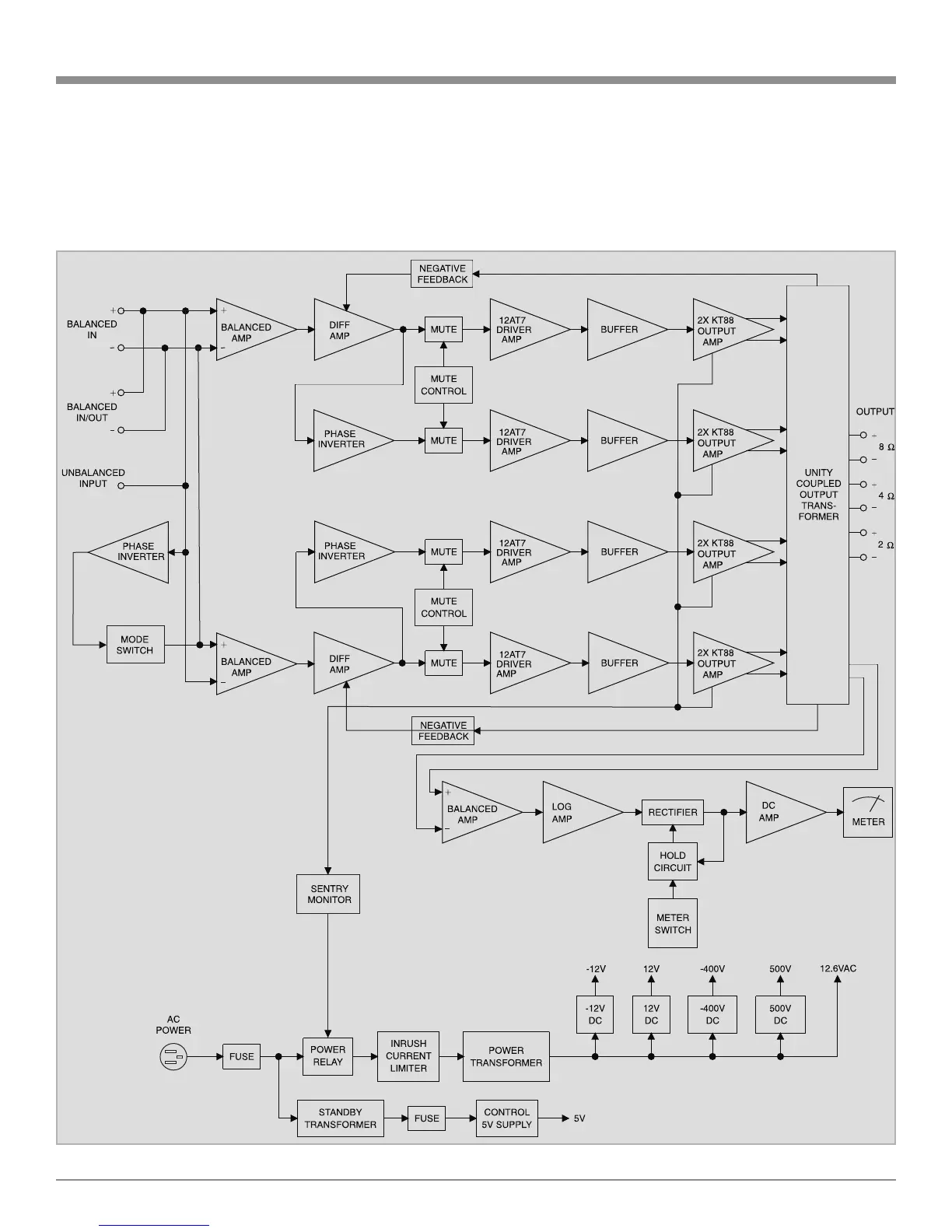

figure 12. The typical McIntosh owner would never accept
the approximately 25 times higher distortion of many non-
Figure 12
Block Diagram of the
MC2301 Power Amplifier,
Protection Circuitry and
Power Supply

McIntosh MC2301 Specifications

General

Damping factor	15
Amplifier class	-
Frequency range	10 - 100000 Hz
Output impedance	8 Ω
Audio output channels	1.0 channels
Peak power per channel	300 W
Signal-to-Noise Ratio (SNR)	117 dB
Total Harmonic Distortion (THD)	0.5 %
Speakers connectivity type	Binding post
Purpose	Home
Product color	Black
Connectivity technology	Wired
AC input voltage	120 V
AC input frequency	50 - 60 Hz
LED indicators	Yes

Weight and Dimensions

Depth	584.2 mm
Width	450.9 mm
Height	312.7 mm
Weight	52600 g
