Packing Instructions
In the event it is necessary to repack the equipment for
shipment, the equipment must be packed exactly as shown
below. It is very important that the four plastic feet are at-
tached to the bottom of the equipment. Four 1/4-20 x 2-1/
4 cap screws and washers must be used to fasten the unit
securely to the shipping skid. This will ensure the proper
equipment location on the shipping skid. Failure to do this
will result in shipping damage.
Use the original shipping carton and interior parts only
if they are all in good serviceable condition. If a shipping
carton or any of the interior part(s) are needed, please call
or write Customer Service Department of McIntosh Labo-
ratory. Please see the Part List for the correct part numbers.

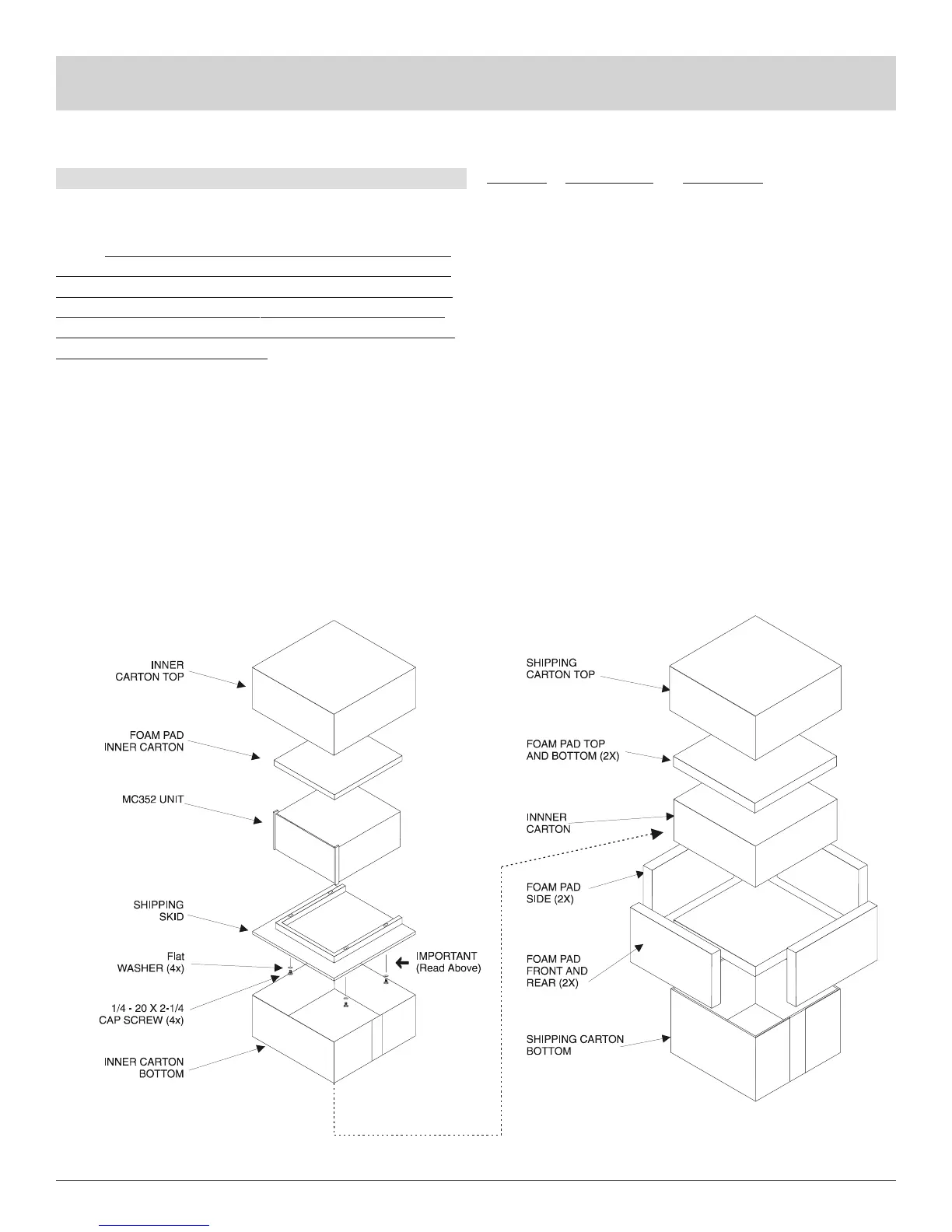

Packing Instructions
Quantity Part Number Description
1 034051 Shipping carton bottom
1 034052 Shipping carton top
2 034054 Foam pad (front and rear)
2 034053 Foam pad (sides)
2 034055 Foam pad (top and bottom)
1 035050 Inner carton top
1 034049 Inner carton bottom
1 034048 Foam pad inner carton
1 034056 Shipping skid
4 101212 1/4-20 x 2-1/4 cap screw
4 104058 Flat washer
1 049289 Shipping carton complete with
all the above parts
