8
4Ω (ohms) or 8Ω (ohms) connection to match the
impedance of the Loudspeaker, being careful to
observe the correct polarities.
Note: The illustration in figure 5 is connections for
8Ω (ohms) Loudspeakers.
If the Loudspeaker’s impedance is in-between
the available connections, use the nearest lower
impedance connection. Refer to “General Informa-
tion” Note 4 on page 2 for additional information.
WARNING: Loudspeaker terminals are hazard-
ous live and present a risk of electric
shock. For additional instruction on
making Loudspeaker Connections con-
tact your McIntosh Dealer or McIn-
tosh Technical Support.
9. Attach the Terminal Connection Covers to the
MC462 Rear Panel with the previously removed
Screws. Refer to figure 5.
10. Connect the MC462 Power Cord to an active AC
outlet.
Spade Lug or Wire Connections:
11. Locate the Terminal Connections Covers from the
inside of the MC462 shipping carton. Insert the
just prepared Loudspeaker hookup cables thru the
cover openings, one cover for each channel. Refer
to figure 6.
12. Connect the Loudspeaker hookup cables to the
MC462 Negative Output Terminal and Positive
Output Terminal indentified as 2Ω (ohms), 4Ω
(ohms) or 8Ω (ohms) connection to match the
impedance of the Loudspeaker, being careful to
observe the correct polarities. Insert the spade
lug connector or prepared section of the cable end
into the terminal side access hole, and tighten the
terminal cap until the cable is firmly clamped into
the terminals so the lugs or wire cannot slip out.
Refer to fgures 7 and 8.
Note: The illustration in figure 6 is connections for
8Ω (ohms) Loudspeakers.
If the Loudspeaker’s impedance is in-between
the available connections, use the nearest lower
impedance connection. Refer to “General Informa-
tion” Note 3 on page 2 for additional information.
WARNING: Loudspeaker terminals are hazard-
ous live and present a risk of electric
shock. For additional instruction on
making Loudspeaker Connections con-
tact your McIntosh Dealer or McIn-
tosh Technical Support.
13. Attach the Terminal Connections Covers to the
MC462 Rear Panel with the previously removed
Screws. Refer to figure 6.
14. Connect the MC462 power cord to an active AC
outlet.
Output Terminals and How to Connect
Banana Plugs are for use in the United States and
Canada only:
5. Locate the Terminal Connection Covers from the
inside of the MC462 shipping carton. Insert the
just prepared Loudspeaker hookup cables thru the
cover openings, one cover for each channel. Refer
to figure 5.
6. Attach the previously prepared bare wire cable ends
into the banana plugs and secure the
connections. Refer to figure F.
7. Rotate the top of the Output Terminal
Post clockwise until it is nger tight.
Refer to gure G. Then using the Mc-
Intosh Wrench, rotate the top of the
Output Terminal one quarter of a turn
(90° ). Do not over tighten. Refer to
gure E.
8. Referring to figure H, connect the
Loudspeaker hookup
cables with banana plugs
into the hole at the top
of the terminal to the
MC462 Negative Out-
put Terminal and Posi-
tive Output Terminal indentified as 2Ω (ohms),
Figure 7
Figure 8

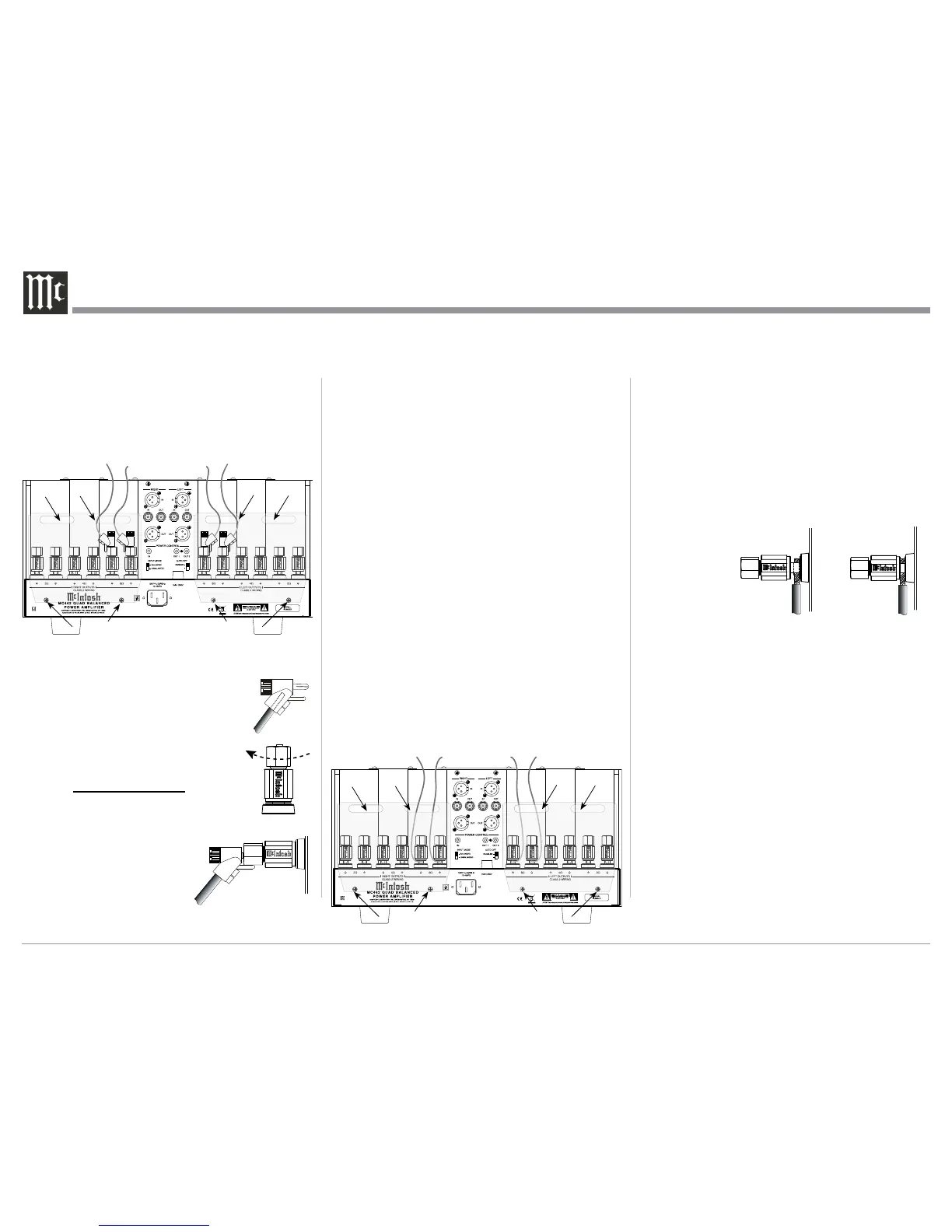

Figure 5 (Inside USA and Canada)
DISABLED
Cover Openings
Cover Openings
Cover Screws Cover Screws
Figure 6 (Outside USA and Canada)
DISABLED
Cover Openings
Cover Openings
Cover Screws Cover Screws
Figure F
To Next Page
