Packing Instructions

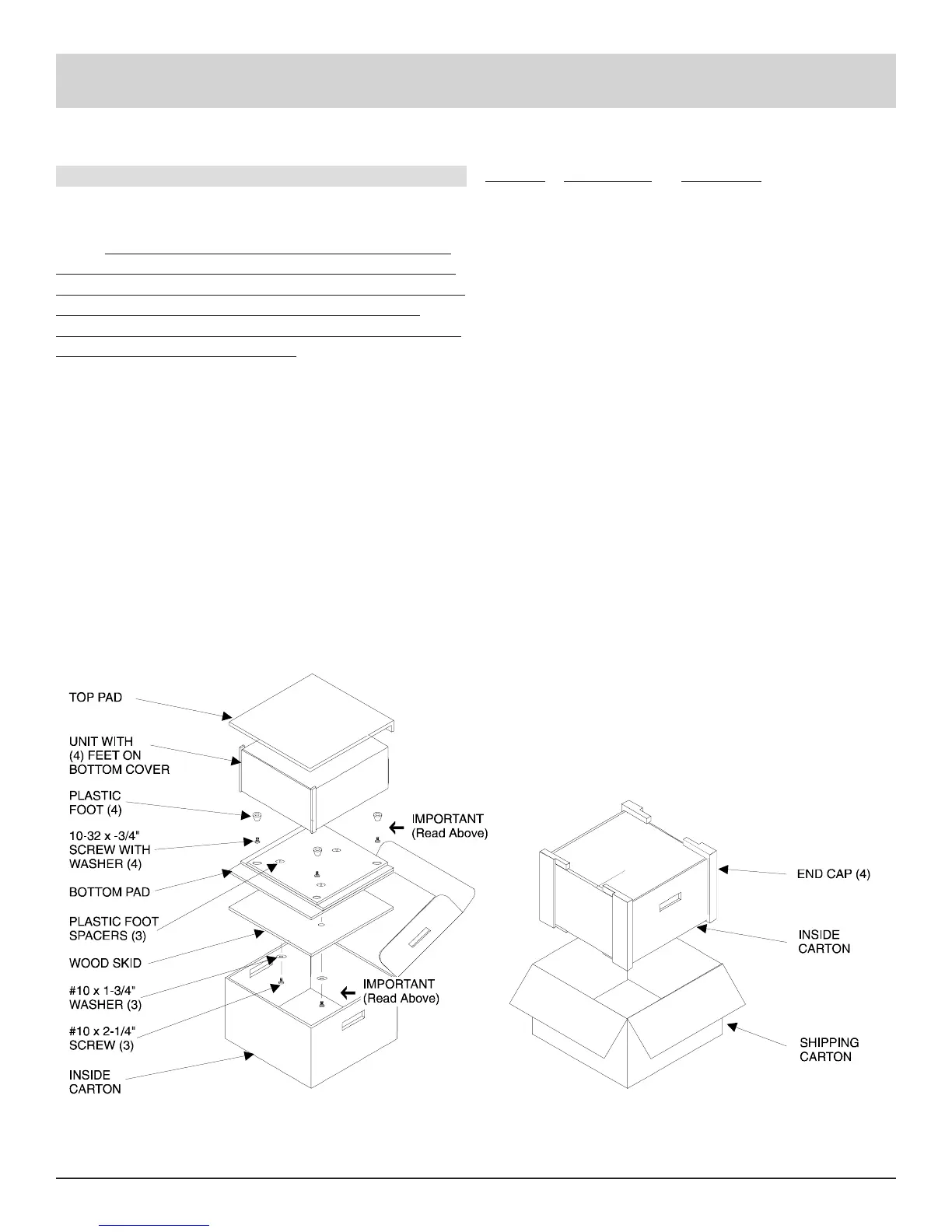

In the event it is necessary to repack the equipment for
shipment, the equipment must be packed exactly as shown
below. It is very important that the four plastic feet are at-
tached to the bottom of the equipment. Three #10 x 2-1/4
screws and washers must be used to fasten the unit securely
to the bottom pad and wood skid This will ensure the
proper equipment location on the bottom pad. Failure to do
this will result in shipping damage.
Use the original shipping carton and interior parts only if
they are all in good serviceable condition. If a shipping car-
ton or any of the interior part(s) are needed, please call or
write Customer Service Department of McIntosh Labora-
tory. Please see the Part List for the correct part numbers.
Quantity Part Number Description
1 033888 Shipping carton only
4 033887 End cap (Foam pad)
1 033697 Inside carton only
1 033725 Top Pad
1 034008 Bottom pad
3 017218 Plastic foot (spacer)
1 033699 Wood skid
3 101169 #10 x 2-¼ Wood screw
3 104033 #10 x 1-¾ Wood screw
4 017218 Plastic foot
4 100159 #10-32 x ¾ Machine screw
4 104083 #10 x 7/16 Flat washer
1 040542 Shipping carton complete with
all the above parts
Packing Instructions
To Next Page
