6

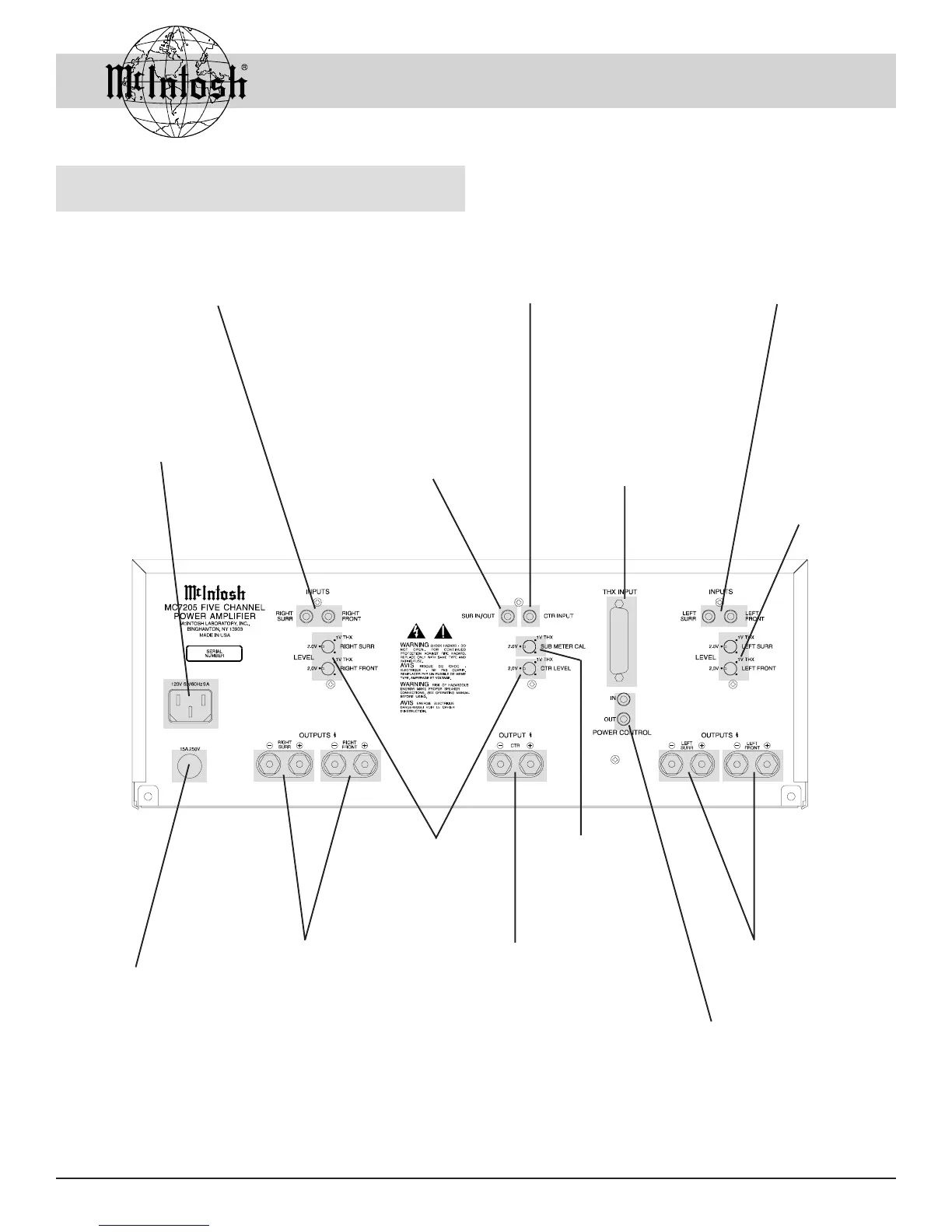

MC7205 Rear Panel Controls and
Connections
MC7205 Rear Panel Controls and
Connections
Connect the MC7205
power cord to a live
AC outlet. Refer to in-
formation on the back
panel to determine the
correct voltage.
INPUTS for discrete audio cables
from a preamplifier or control
center audio outputs
THX INPUT Connector
accepts a 25 conductor
cable that connects all
audio and power control
signals from a McIntosh
Control Center
Individual Input
LEVEL controls for
Right channels and
Center channel
POWER CONTROL In receives
turn on/off signals from a McIntosh
component and the POWER CON-
TROL Out sends that turn on/off
signal to the next McIntosh compo-
nent.
OUPUT Connections for
8 or 4 ohm loudspeakers
SUB IN/OUT accepts a
subwoofer input signal to
activate the subwoofer
power meter circuit. If a 25
conductor cable is being
used with a McIntosh Con-
trol Center this jack will
provide a signal out to a
subwoofer amplifier.
INPUTS for discrete audio cables
from a preamplifier or control
center audio outputs
INPUT for discrete audio cable
from a preamplifier or control
center audio output
Individual Input
LEVEL controls
for the Left chan-
nels
OUTPUT Connections for 8
or 4 ohm loudspeakers
OUTPUT Connections for
8 or 4 ohm loudspeakers
Main Fuse holder,
refer to infromation
on the back panel
of your MC7205 to
determine the cor-
rect fuse size and
rating.
SUB METER CAL
control for meter
calibration of the
Subwoofer Channel
